AIYOS

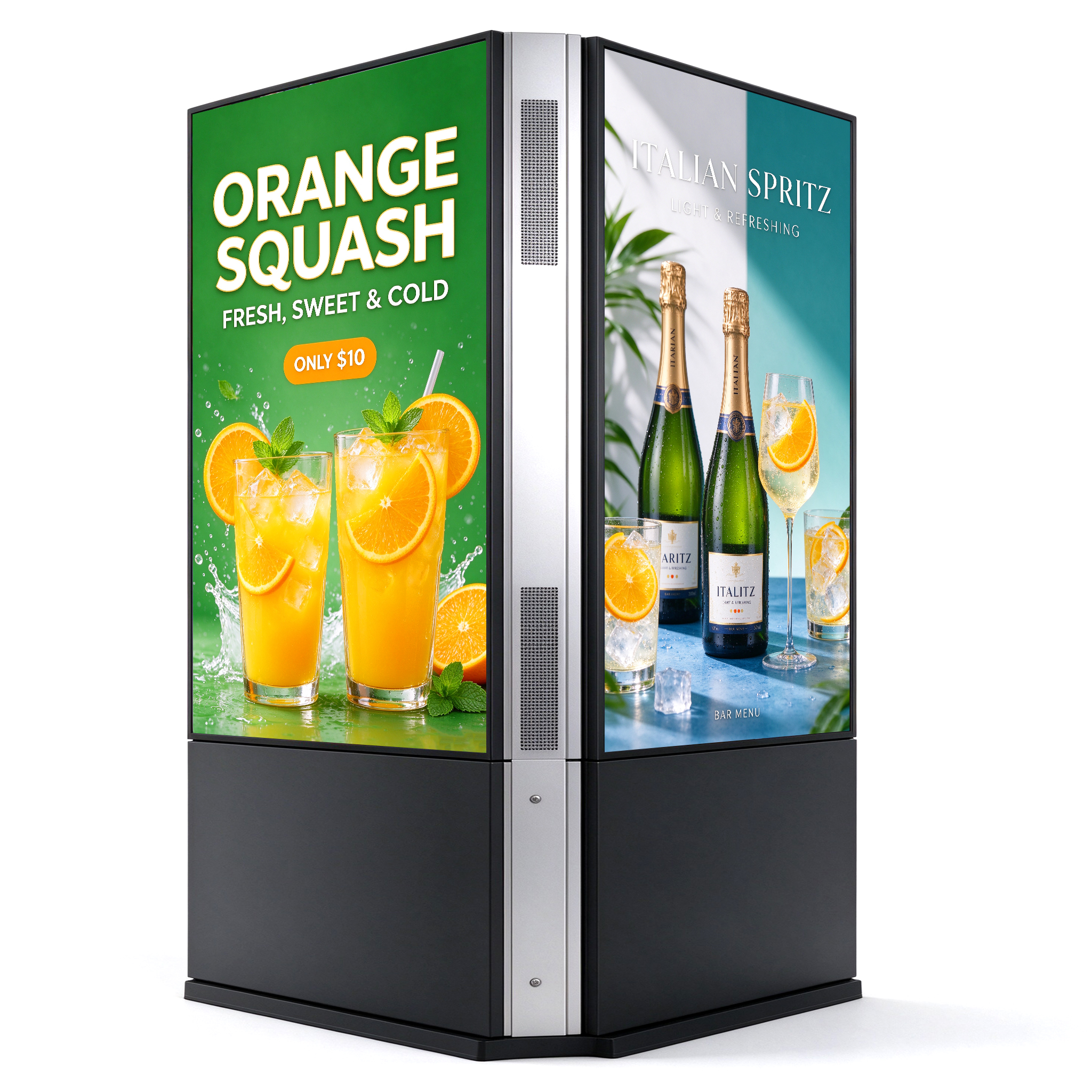

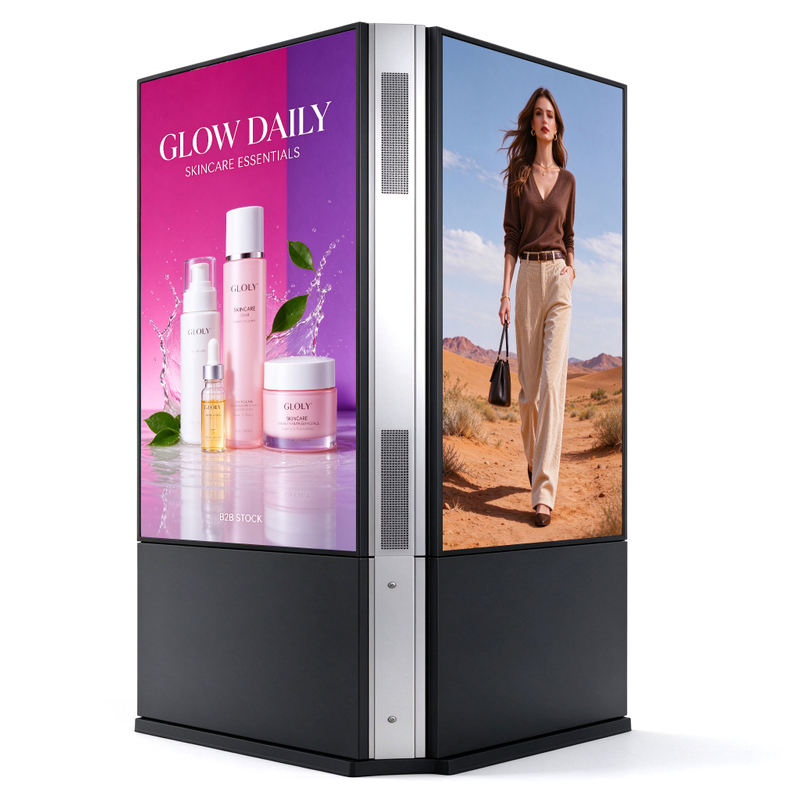

Dual-Screen Maximum Coverage: Double the Advertising ROI: Engineered with dual independent displays to capture foot traffic from both directions simultaneously. Display synchronized promotional videos or run split-screen content (e.g., ads on one side, wayfinding/interactive maps on the other) to maximize viewer engagement and double your advertising revenue per footprint.
Full Optical Lamination: Zero Fogging & Sunlight Readability: By bonding both display panels directly with anti-reflective tempered glass, our full lamination technology eliminates internal air gaps. It permanently prevents internal condensation, dust ingress, and screen fogging caused by sudden temperature shifts, ensuring sharp visuals and superior contrast under direct sunlight.

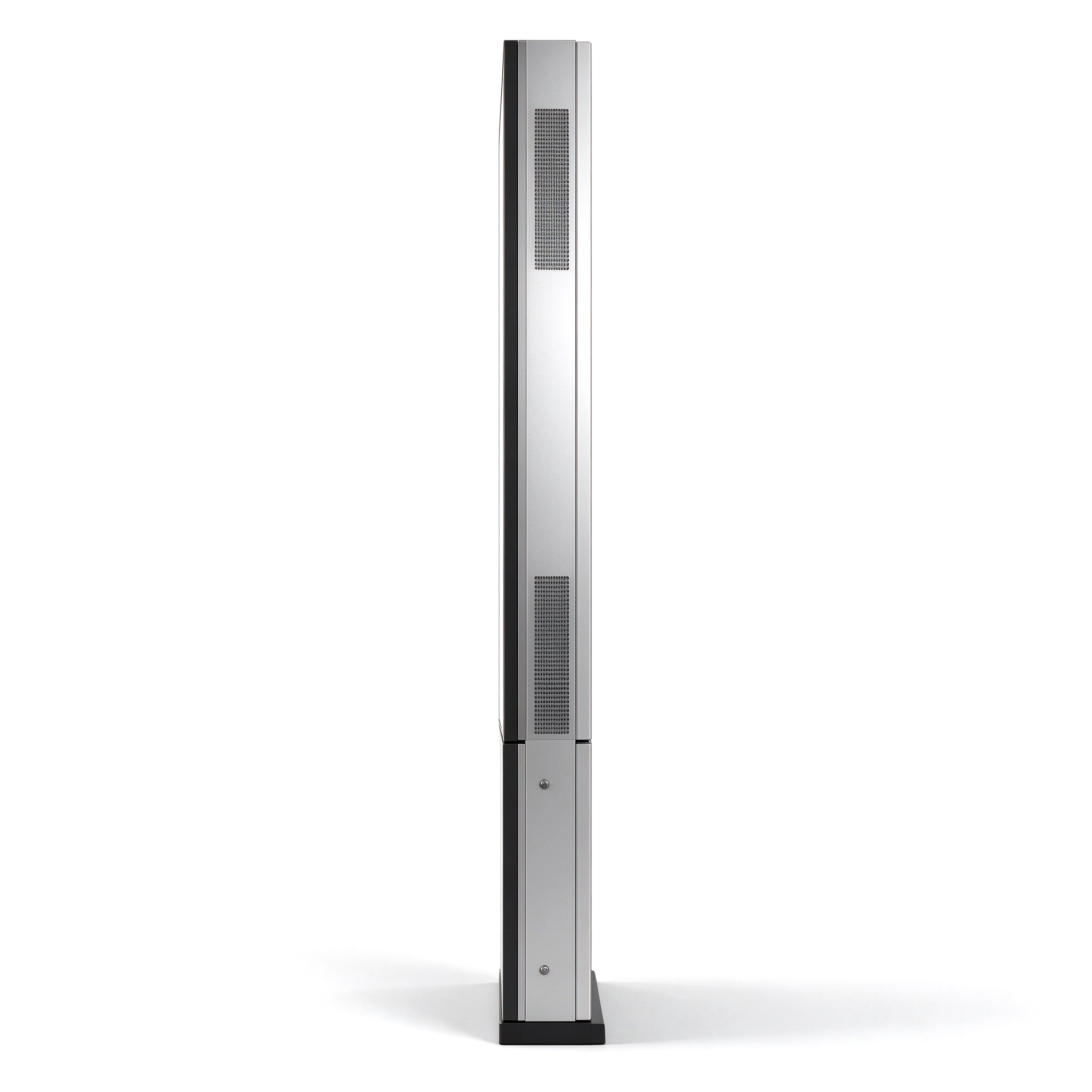

Dual Display Ultra Narrow-Bezel Aesthetics: Featuring a sleek, ultra-narrow bezel design paired with premium aluminum side trims, this dual-sided kiosk delivers an elegant, high-tech appearance. The maximized screen-to-body ratio elevates brand image in high-end retail malls, transit plazas, and corporate entrances.
2500–4500 Nits High Brightness with Smart Light Sensing: Equipped with commercial-grade high-brightness panels and anti-glare (AG/AR) glass, both screens remain vivid and crystal-clear in bright ambient light. Built-in intelligent light sensors automatically adjust screen brightness based on surrounding conditions, saving power and extending backlight lifespan.
IP65 All-Weather Protection & Intelligent Thermal Control: Built for demanding outdoor environments, the heavy-duty IP65-rated enclosure protects internal components against rain, snow, dust, and UV exposure. The intelligent temperature control system (air cooling fans or industrial air conditioning) ensures stable 24/7 continuous operation from -20°C to +50°C.
Cloud CMS & Remote Dual-Screen Content Control: Powered by industrial Android or Windows media players supporting multi-device control. Easily schedule, synchronize, or manage distinct content on each display remotely via Cloud CMS using Wi-Fi, 4G/5G, or LAN connectivity.
Full OEM/ODM Customization & Direct Factory Support: Backed by our direct source-factory manufacturing capabilities, we offer tailored OEM/ODM solutions including custom housing colors, logo silk-screening, touch screen integration, and specialized hardware configurations to meet exact project specifications.
Screen Sizes Available: 43", 49", 55", 65", 75", 85" (Dual-Screen Configuration)
Panel Type: Commercial Grade A+ TFT-LCD Panel (24/7 Rating)
Bezel Architecture: Ultra-Narrow Bezel High Screen-to-Body Ratio Design
Display Configuration: Dual-Sided Display (Synchronized or Independent Split-Screen Playback)
Resolution: 1920 × 1080 Full HD / 3840 × 2160 4K UHD
Brightness: 2500 – 4500 nits (Ultra High Brightness, Sunlight Readable)
Optical Lamination: Full Optical Lamination (Zero Air Gap, Zero Internal Fogging)
Glass Specification: 4mm / 6mm AR (Anti-Reflective) & AG (Anti-Glare) Tempered Glass
Light Transmittance: ≥ 92%
Contrast Ratio: 3000:1 / 4000:1
Viewing Angle: 178° Horizontal / 178° Vertical
Brightness Control: Intelligent Auto-Dimming Light Sensor (Energy Saving)
Panel Backlight Lifespan: ≥ 50,000 Hours
Enclosure & Environmental Protection
Ingress Protection Rating: IP65 Waterproof, Dustproof, and Weatherproof
Cabinet Material: Heavy-Duty Galvanized Steel + Aluminum Side Trims + Anti-Corrosion Outdoor Powder Coating
Thermal Management: Intelligent Temperature Control System (Air Cooling Fans / Industrial Air Conditioner Optional)
Operating Temperature: -20°C to +50°C (-4°F to 122°F)
Operating Humidity: 10% – 90% RH (Non-Condensing)
Vandal Resistance: High Impact Anti-Vandal Glass & Enclosure Design
System & Hardware Configurations (Optional)
Android OS Option: Android 11.0 / 12.0 (CPU: RK3568 / RK3588, RAM: 2GB/4GB/8GB/16GB, Storage: 16GB/32GB/64GB/128GB/256GB)
Windows OS Option: Windows 10 / 11 Pro (Intel Core i3 / i5 / i7, RAM: 4GB/8GB/16GB, SSD: 128GB/256GB/512GB)
Connectivity: Wi-Fi, 4G/5G LTE Module, RJ45 Gigabit Ethernet, Bluetooth
Content Management: Cloud CMS Remote Control (Independent Dual-Display Scheduling, Real-Time Monitoring, Multi-Device Control)

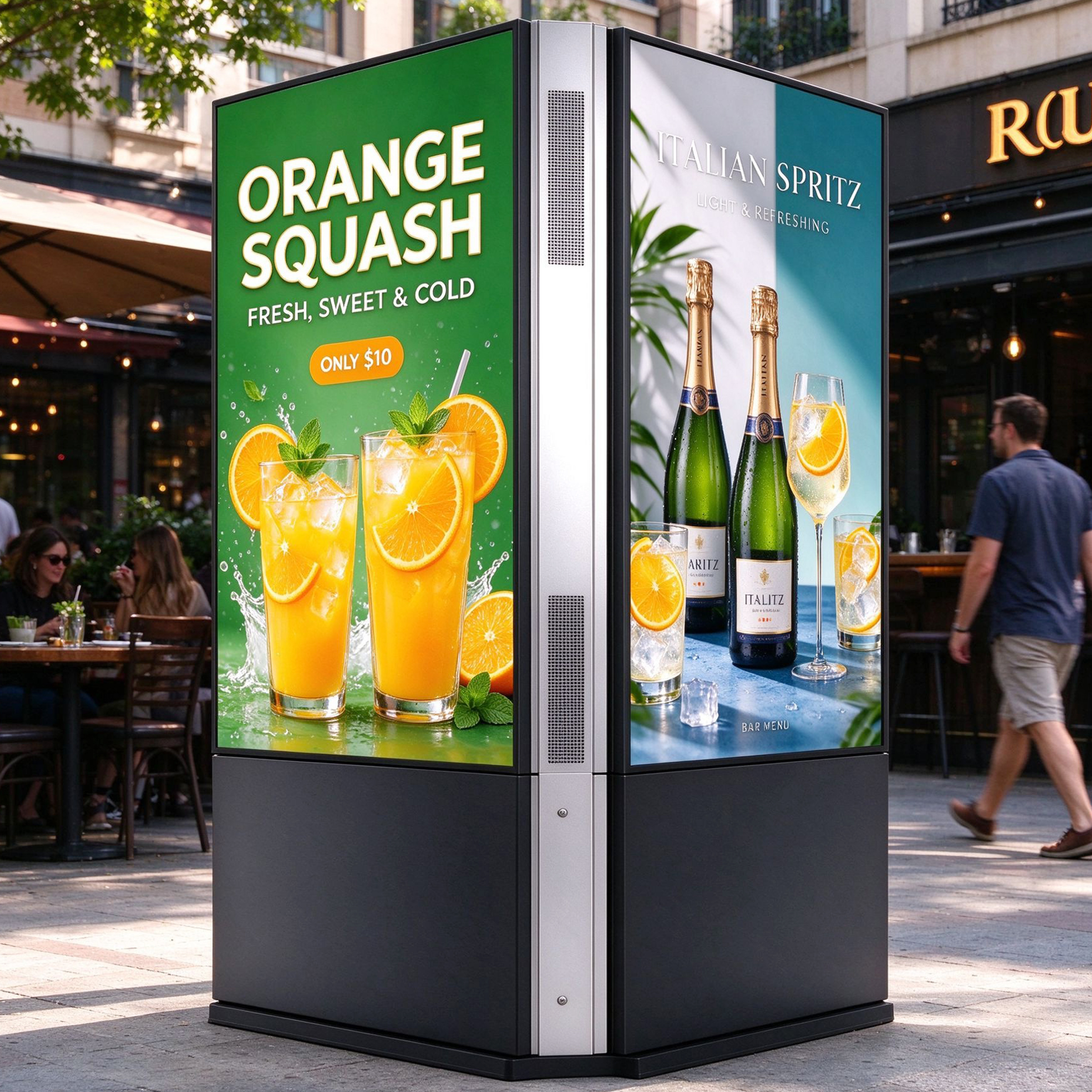

High-Traffic Pedestrian Streets & Shopping Plazas (Two-Way Audience Reach & Ad Revenue): Ideal for open-air malls, pedestrian avenues, and retail walkways with heavy two-way foot traffic. Dual high-brightness displays double advertising exposure and viewer engagement per footprint, allowing operators to run separate campaigns or dual-sided ads simultaneously to maximize revenue.
Smart Transit Hubs & Airports (Independent Split Content & Wayfinding): Perfect for central airport plazas, train station concourses, and bus terminals. The dual-screen system allows transit authorities to display real-time arrival/departure schedules on one screen while serving revenue-generating commercial ads on the opposite screen.
EV Charging Hubs & Gas Stations (Dual Monetization & High Visibility): Engineered for central island placement at EV charging parks and service station walkways. Full optical lamination eliminates internal screen fogging and sunlight glare, delivering crystal-clear promotional offers and charge status updates to drivers approaching from either side.
Corporate Campuses & Commercial Centers (Aesthetic Architectural Integration): Tailored for open-air corporate plazas, exhibition venues, and building entrances. The ultra-narrow bezel and aluminum side trims deliver a high-tech, modern look that seamlessly complements high-end commercial architecture while serving two-way pedestrian corridors.
Public Parks, Civic Squares & Tourist Destinations (Heavy-Duty All-Weather Info): Built for open spaces, heritage sites, and smart city hubs. IP65-rated weatherproofing, vandal-resistant glass, and remote Cloud CMS management enable municipal teams to update dual-sided event maps, public announcements, and emergency notices from anywhere.
| Versions=> | 1.Android WiFi Version | 2.Android WiFi Version+Nano Touch | 3.Windows WiFi | |
| System | CPU | RK3568(3399/3288/3566/3588) | RK3568(3399/3288/3566/3588) | intel i3-4th gen |
| RAM | 2GB(4/8GB) | 2GB(4/8GB) | 4GB DDR3 | |
| Internal memory | 32GB(64/128GB) | 32GB(64/128GB) | 128GB SSD | |
| Operation system | Android 11.1(8.0/10.0/12/13) | Android 11.1(8.0/10.0/12/13) | Win10pro (no license) | |
| Touch screen | w/o or nano Touch | nano Touch | w/o or nano Touch | |
| Display | Panel | IPS full view angle screen 178/178, LED backlight | ||
| Resolution | 1920*1080 FHD (optional 4K screen with extra $50/pcs) | |||
| Viewing angles | 178(H),178(V) | |||
| Contrast ratio | 3000 | |||
| Luminance | 2500cdm2(optional: 3000/3500/4000/4500nits brightness) | |||
| Aspect Ratio | ,16:9 | |||
| Network | WiFi | WiFi 802.11 | WiFi 802.11 | WiFi 802.11 |
| 3G/4G | \ | \ | \ | |
| Ethernet RJ45 | yes | yes | yes | |
| Buletooth | yes | yes | yes | |
| Interface | SD Card slot | yes | yes | no |
| USB port | yes | yes | yes | |
| WiFi port | yes | yes | yes | |
| RJ45 | yes | yes | yes | |
| on/off switch | yes | yes | yes | |
| Media play | Video format | MPEG-1,MPEG-2,MPEG-4,H.264,H.265,RV etc.,support up to 1080p | ||
| Photo | jpeg | |||
| Audio format | MP3/WMA/AAC etc. | |||
| Touch panel | optional | w/o | standard optional Nano multi touch panel (optional G+G touch add $195/pcs on base of Nano touch) | |
| Air Conditioner | w/o | |||
| Termpered glass | IK10 6mm termpered glass, high quality | |||
| Waterproof standard | IP65 Standard / IP66 Optional | |||
| Heating system | w/o, optional | |||
| AR glass | w/o, optional | |||
| Others | Power consumption | 168W | 198W | 238W |
| Speaker | 2*5W | 2*5W | 2*5W | |
| Temperature | -20 to 50degrees | -20 to 50degrees | -20 to 50degrees | |
| Language | Multi-language | Multi-language | English | |
| Adapter | Internal power board (AC100V-240V, 50/60Hz) | |||
| Accessories | AC cable, packing box, WiFi Antenna, ground base | |||
