AIYOS

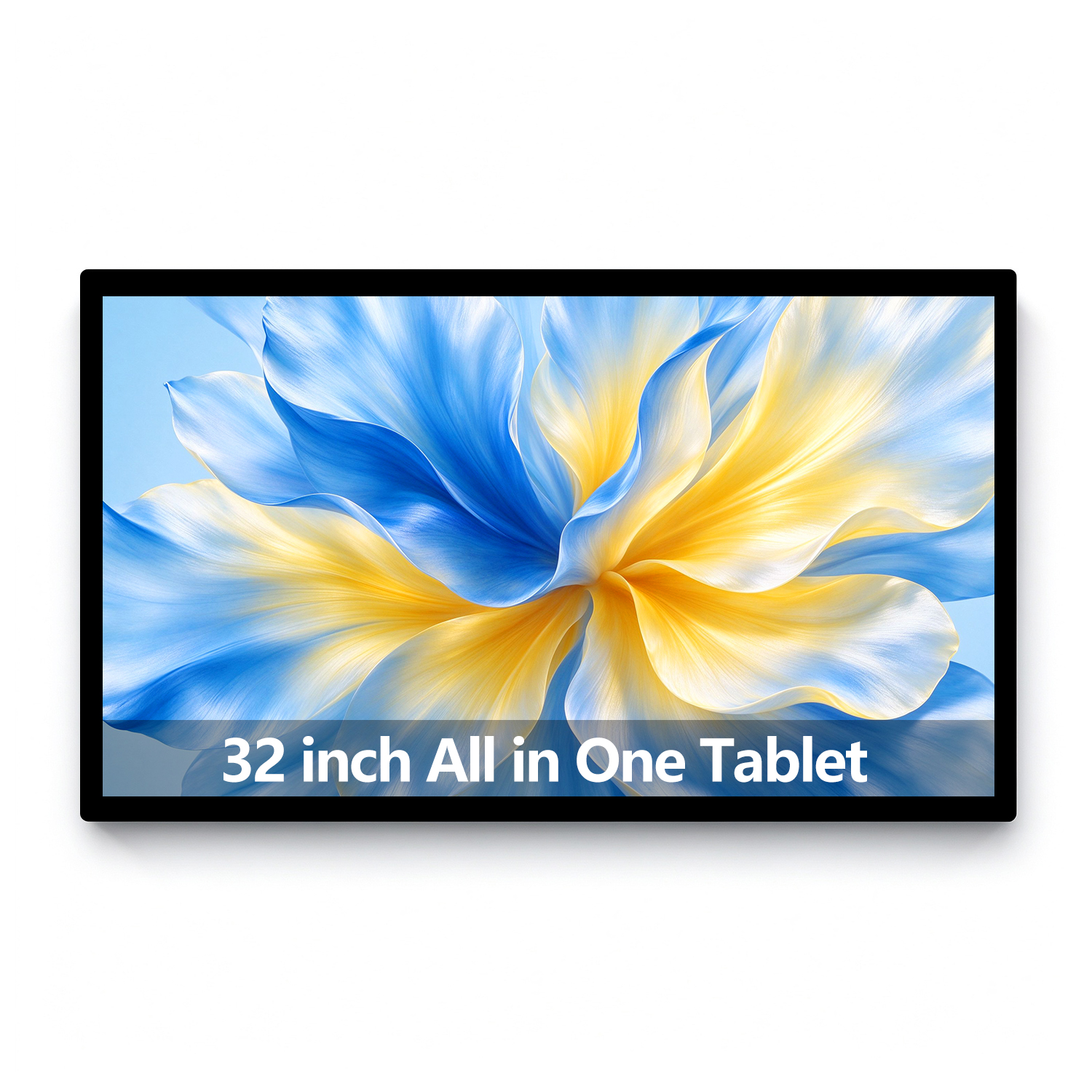

Immersive 32" Large-Format Visual Impact
Features an expansive 1920*1080 Full HD IPS display that offers vivid colors, high contrast, and ultra-wide 178° viewing angles, capturing customer attention and delivering optimal visual engagement in large commercial spaces.
Responsive 10-Point PCAP Capacitive Touch
Equipped with high-precision projected capacitive multi-touch technology and scratch-resistant tempered glass, providing smooth, fast, and durable touch control for interactive applications.
24/7 Commercial-Grade Continuous Reliability
Built with industrial-grade circuit design and robust thermal management to support non-stop 24/7 operation in demanding public, retail, and corporate environments.
Streamlined Deployment & PoE Options
Supports Power over Ethernet (PoE) / flexible power configurations and high-speed network connectivity, reducing cable clutter and simplifying wall or kiosk installation.
Flexible Hardware & Software Customization
Powered by an efficient Rockchip Android platform, allowing complete OEM/ODM customization (custom branding, startup screen, integrated APKs) and compatibility with major Content Management Systems (CMS).
Brand & Custom Service: AIYOS professional commercial display brand, supports OEM / ODM one-stop customization services.
Screen Performance: 32-inch industrial-grade IPS display, FHD 1920×1080 resolution, 178° ultra-wide viewing angle; 350 nits standard indoor brightness, optional high-brightness upgrade.
Touch Configuration: Industrial commercial-grade PCAP capacitive multi-touch, sensitive response, durable and scratch-resistant for long-term 24/7 commercial use.
Core Hardware: Standard RK3566 1.8GHz quad-core processor, optional RK3568 / RK3399 / RK3588 high-performance chips; Standard 2GB RAM + 32GB storage, optional 4GB/8GB RAM and 64GB/128GB large storage.
Operating System: Stable Android 11.0 / 12.0 system, supports multi-channel content remote management and custom application deployment.
Network & Power Supply: Power over Ethernet (PoE) supported via RJ45 port for simplified setup / DC 12V; equipped with Dual-band WiFi and Bluetooth module for stable connectivity.
Connection Interfaces: Gigabit Ethernet port, HDMI-OUT interface, multiple USB ports, 3.5mm audio jack, and MicroSD card slot.
Audio System: Built-in high-quality stereo speakers for clear audio and broadcast playback.
Body & Installation Method: Commercial-grade enclosure; supports standard VESA wall mounting (wall bracket optional) and floor-standing kiosk integration.
Large Shopping Malls & Wayfinding Kiosks: Serves as a central interactive floor directory, store finder, and dynamic advertising screen in shopping centers, transit hubs, and department stores.
Self-Service Ordering & Ticketing Terminals: Ideal for large self-ordering kiosks, ticket purchase stations, and self-checkout terminals in fast-food chains and entertainment venues.
Corporate Hall & Interactive Information Hubs: Functions as an interactive corporate showroom display, employee sign-in board, or dynamic dashboard display in office lobbies and headquarters.
Hospitality & Hotel Lobby Concierge: Perfect for interactive guest self-check-in terminals, flight schedule displays, and local attraction guide boards in hotels and resorts.
Commercial Fitness & Healthcare Displays: Integrated into high-end smart workout stations, digital health check kiosks, and hospital waiting area guidance displays.
| System | CPU | RK3566 Quad core 1.8GHz (commercial high level) optional: RK3568/RK3399/RK3588; | ||||||||||||||
| RAM | 2GB (optional 4GB/8GB) | |||||||||||||||
| Internal memory | 32GB (Optional 64GB/128GB) | |||||||||||||||
| GPU | ARM Mali-G52 2EE, OpenGL ES 1.1/2.0/3.2, Vulkan 1.1; OpenCL 2.0;Embedded 2D accelerator | |||||||||||||||
| NPU | 1TOPS, support int8/int16 | |||||||||||||||
| System management | Support OTA, USB flash drive reflash, SD card reflash | |||||||||||||||
| Operation System | Android 11.0 | |||||||||||||||
| Display | Touch panel | Include PCAP multi-touch(commercial level) | ||||||||||||||
| Panel | 15.6" IPS FHD screen (full view angle 178/178 degrees) | |||||||||||||||
| Resolution | 1920*1080 | |||||||||||||||
| Contrast ratio | 800:1 | |||||||||||||||
| Luminance | 250nits (optional 450nits higher brightness) | |||||||||||||||
| Aspect Ratio | ,16:9 | |||||||||||||||
| Network | WiFi | yes, dual band 5G WiFi 802.11b/g/n | ||||||||||||||
| 3G/4G SIM module | without, optional | |||||||||||||||
| Ethernet | 100M/1000M Ethernet | |||||||||||||||
| Buletooth | yes | |||||||||||||||
| Interface | MicroSD Card slot | yes | ||||||||||||||
| HDMI | yes, with HDMI-OUT (include HDMI license) | |||||||||||||||
| DC port | DC port for 12V 2A | |||||||||||||||
| USB port | yes, 2 USB (1xUSB 2.0, 1xUSB 3.0) | |||||||||||||||
| Earphone | 3.5mm earphone | |||||||||||||||
| Uboot hole | yes | |||||||||||||||
| RJ45 | yes | |||||||||||||||
| On/Off switch | yes | |||||||||||||||
| Media plays | Video format | MPEG1/MPEG2/MPEG4, .mpg,.avi, format,Support Full H.264 | ||||||||||||||
| Audio format | MP3/WMA/AAC etc. | |||||||||||||||
| Photo | jpeg | |||||||||||||||
| Material | housing material | New Ultra-Thin(11.5mm), narrow boarder(11.5mm) and Light Weight ABS housing(1.0kg only) | ||||||||||||||
| Others (optionals) | mouse | Supported by USB port | ||||||||||||||
| keyboard | Supported by USB port | |||||||||||||||
| VESA for wall mount | yes, VESA 75mm*75mm for wall mounting | |||||||||||||||
| Wall mount bracket | without, optional | |||||||||||||||
| 3G/4G SIM cellular module | without, optional | |||||||||||||||
| Speaker | yes, 2*2W | |||||||||||||||
| POE power supply(thin design) | without, optional PoE (IEEE 802.3at / 802.3af compliant) / DC 12V Input | |||||||||||||||
| Network & Power Integration | 1x RJ45 Port (Power over Ethernet + Network Data) | |||||||||||||||
| CMS cloud software | without, optional | |||||||||||||||
| Battery | without, optional | |||||||||||||||
| NFC | without, optional | |||||||||||||||
| Upgrade to 4GB+64GB | without, optional | |||||||||||||||
| Vertical table stand | without, optional | |||||||||||||||
| hihger version touch panel,good for:Pencil+ball point pen+sign pen writable | without, optional | |||||||||||||||
| hihger brightness | upgrade to 450nits add $10/pcs | |||||||||||||||
| HD Web Camera | without, optional | |||||||||||||||
| Passive writting capacitive pen with internal magnet | without, optional | |||||||||||||||
| APP for wireless screen mirroring + APP for hand write whiteboard | without, optional | |||||||||||||||
| Language | Multi-language(English, French, German, Italian, etc) | |||||||||||||||
| Application | Skype/Facebook/Twitter/Youtube/E-mail/google map etc | |||||||||||||||
| Accessories | Adapter | Adapter,DC 12V2A | ||||||||||||||
| Packing box with foam | yes | |||||||||||||||
| Table stand | yes, with horizontal stand included | |||||||||||||||
| Wall mounting bracket | without, optional | |||||||||||||||
| Metal Floor stand (rotable 360°,up/down 30cm) | without, optional | |||||||||||||||
