AIYOS
Streamlined PoE Single-Cable Deployment
Features Power over Ethernet (PoE) technology to transfer high-speed network data and power through a single RJ45 cable, significantly simplifying installation, eliminating external AC power adapters, and reducing overall wiring costs.

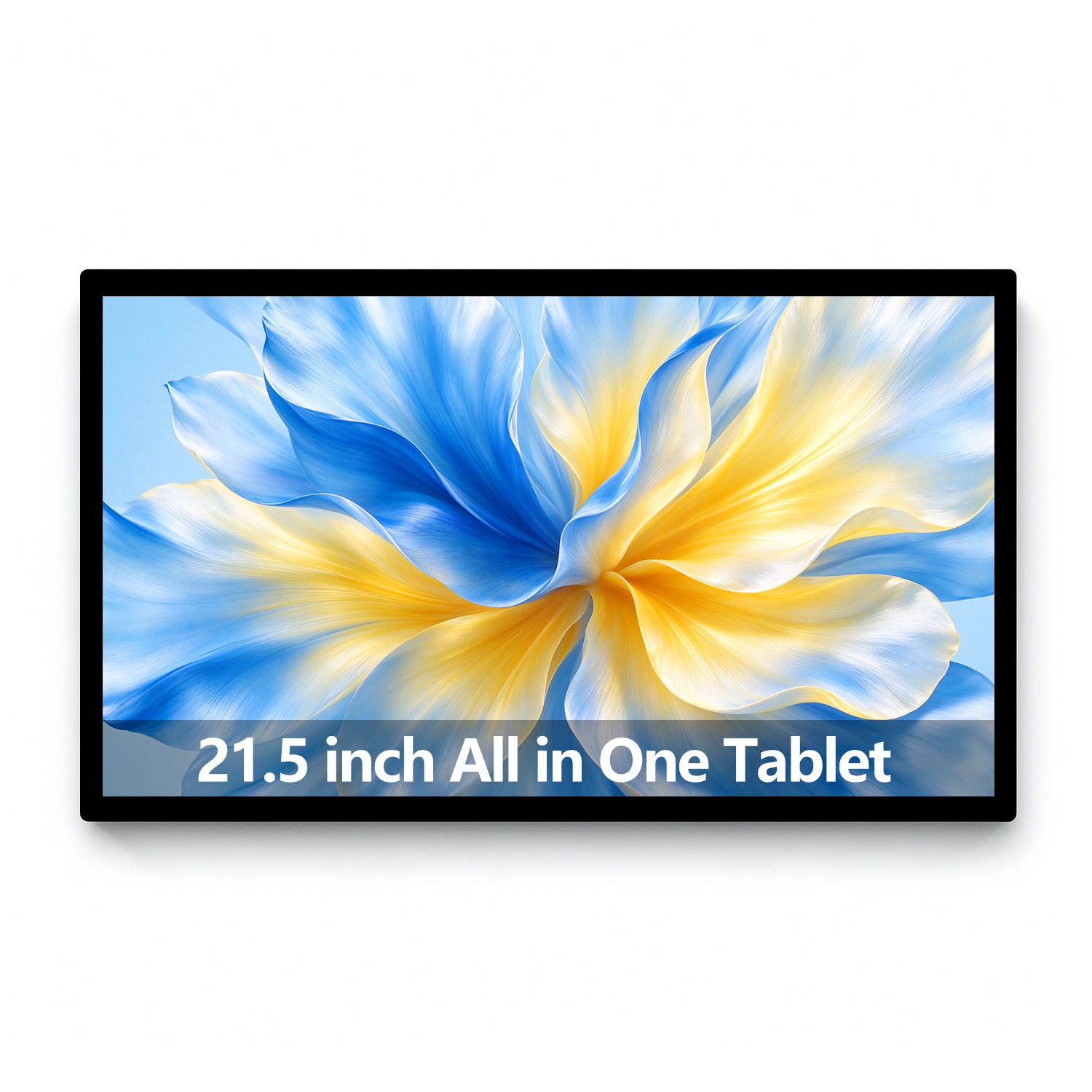

Versatile 21.5" Full HD Interactive Display
Equipped with a crisp 1920*1080 Full HD IPS panel, offering ultra-wide 178° viewing angles and vivid color reproduction to ensure clear, high-impact visual engagement for interactive self-service and advertising applications.
High-Precision 10-Point Capacitive Touch
Integrates a commercial-grade PCAP multi-touch panel with scratch-resistant tempered glass, delivering fast, smooth, and precise touch responsiveness for seamless user interaction in public environments.
24/7 Commercial-Grade Continuous Operation
Engineered with high-durability hardware components and an optimized heat dissipation structure designed for 24/7 uninterrupted, stable performance in high-traffic retail, corporate, and public settings.
Flexible Hardware Customization & System Compatibility
Powered by an efficient Rockchip Android platform, supporting full OEM/ODM customization (custom boot logo, pre-installed APKs, enclosure colors) and seamless integration with third-party Content Management Systems (CMS).
Brand & Custom Service: AIYOS professional commercial display brand, supports OEM / ODM one-stop customization services.
Screen Performance: 21.5-inch industrial-grade IPS display, FHD 1920×1080 resolution, 178° ultra-wide viewing angle; 250 nits standard indoor brightness, optional high-brightness upgrade.
Touch Configuration: Industrial commercial-grade PCAP capacitive multi-touch, sensitive response, durable and scratch-resistant for long-term 24/7 commercial use.
Core Hardware: Standard RK3566 1.8GHz quad-core processor, optional RK3568 / RK3399 / RK3588 high-performance chips; Standard 2GB RAM + 32GB storage, optional 4GB/8GB RAM and 64GB/128GB large storage.
Operating System: Stable Android 11.0 / 12.0 system, supports multi-channel content remote management and custom application deployment.
Network & PoE Supply: Power over Ethernet (PoE) supported via RJ45 port for simplified single-cable setup; equipped with Dual-band WiFi and Bluetooth module for stable connectivity.
Connection Interfaces: Gigabit Ethernet port (PoE), HDMI-OUT interface, multiple USB ports, 3.5mm audio jack, and MicroSD card slot.
Audio System: Built-in high-quality stereo speakers for clear audio and broadcast playback.
Body & Installation Method: Commercial-grade enclosure; supports 100×100mm VESA wall mounting (wall bracket optional) and desktop stand support for flexible deployment.
Interactive Self-Service & Ordering Kiosks: Perfect for fast-food self-ordering terminals, ticketing systems, queue management kiosks, and self-checkout stations in retail stores and public service halls.
Smart Meeting Room & Office Management: Ideal for corporate room scheduling, interactive office entry sign-in, and visitor management displays, benefiting from PoE single-cable deployment for clean, clutter-free installation.
Commercial Retail & Digital Directory: Functions as an interactive product catalog display, digital floor map, and promotional screen in shopping malls, department stores, and brand flagship stores.
Healthcare & Hospital Wayfinding: Serves as a digital check-in station, outpatient appointment terminal, or bedside medical information display for modern hospitals and healthcare centers.
Smart Fitness & Sports Equipment: Easily integrated as an interactive touch control panel and video streaming display for commercial gym equipment and smart exercise terminals.
| System | CPU | RK3566 Quad core 1.8GHz (commercial high level) optional: RK3568/RK3399/RK3588; | ||||||||||||||
| RAM | 2GB (optional 4GB/8GB) | |||||||||||||||
| Internal memory | 32GB (Optional 64GB/128GB) | |||||||||||||||
| GPU | ARM Mali-G52 2EE, OpenGL ES 1.1/2.0/3.2, Vulkan 1.1; OpenCL 2.0;Embedded 2D accelerator | |||||||||||||||
| NPU | 1TOPS, support int8/int16 | |||||||||||||||
| System management | Support OTA, USB flash drive reflash, SD card reflash | |||||||||||||||
| Operation System | Android 11.0 | |||||||||||||||
| Display | Touch panel | Include PCAP multi-touch(commercial level) | ||||||||||||||
| Panel | 15.6" IPS FHD screen (full view angle 178/178 degrees) | |||||||||||||||
| Resolution | 1920*1080 | |||||||||||||||
| Contrast ratio | 800:1 | |||||||||||||||
| Luminance | 250nits (optional 450nits higher brightness) | |||||||||||||||
| Aspect Ratio | ,16:9 | |||||||||||||||
| Network | WiFi | yes, dual band 5G WiFi 802.11b/g/n | ||||||||||||||
| 3G/4G SIM module | without, optional | |||||||||||||||
| Ethernet | 100M/1000M Ethernet | |||||||||||||||
| Buletooth | yes | |||||||||||||||
| Interface | MicroSD Card slot | yes | ||||||||||||||
| HDMI | yes, with HDMI-OUT (include HDMI license) | |||||||||||||||
| DC port | DC port for 12V 2A | |||||||||||||||
| USB port | yes, 2 USB (1xUSB 2.0, 1xUSB 3.0) | |||||||||||||||
| Earphone | 3.5mm earphone | |||||||||||||||
| Uboot hole | yes | |||||||||||||||
| RJ45 | yes | |||||||||||||||
| On/Off switch | yes | |||||||||||||||
| Media plays | Video format | MPEG1/MPEG2/MPEG4, .mpg,.avi, format,Support Full H.264 | ||||||||||||||
| Audio format | MP3/WMA/AAC etc. | |||||||||||||||
| Photo | jpeg | |||||||||||||||
| Material | housing material | New Ultra-Thin(11.5mm), narrow boarder(11.5mm) and Light Weight ABS housing(1.0kg only) | ||||||||||||||
| Others (optionals) | mouse | Supported by USB port | ||||||||||||||
| keyboard | Supported by USB port | |||||||||||||||
| VESA for wall mount | yes, VESA 75mm*75mm for wall mounting | |||||||||||||||
| Wall mount bracket | without, optional | |||||||||||||||
| 3G/4G SIM cellular module | without, optional | |||||||||||||||
| Speaker | yes, 2*2W | |||||||||||||||
| POE power supply(thin design) | without, optional PoE (IEEE 802.3at / 802.3af compliant) / DC 12V Input | |||||||||||||||
| Network & Power Integration | 1x RJ45 Port (Power over Ethernet + Network Data) | |||||||||||||||
| CMS cloud software | without, optional | |||||||||||||||
| Battery | without, optional | |||||||||||||||
| NFC | without, optional | |||||||||||||||
| Upgrade to 4GB+64GB | without, optional | |||||||||||||||
| Vertical table stand | without, optional | |||||||||||||||
| hihger version touch panel,good for:Pencil+ball point pen+sign pen writable | without, optional | |||||||||||||||
| hihger brightness | upgrade to 450nits add $10/pcs | |||||||||||||||
| HD Web Camera | without, optional | |||||||||||||||
| Passive writting capacitive pen with internal magnet | without, optional | |||||||||||||||
| APP for wireless screen mirroring + APP for hand write whiteboard | without, optional | |||||||||||||||
| Language | Multi-language(English, French, German, Italian, etc) | |||||||||||||||
| Application | Skype/Facebook/Twitter/Youtube/E-mail/google map etc | |||||||||||||||
| Accessories | Adapter | Adapter,DC 12V2A | ||||||||||||||
| Packing box with foam | yes | |||||||||||||||
| Table stand | yes, with horizontal stand included | |||||||||||||||
| Wall mounting bracket | without, optional | |||||||||||||||
| Metal Floor stand (rotable 360°,up/down 30cm) | without, optional | |||||||||||||||
