| Size: | |
|---|---|
| Quantity: | |
AIYOS/OEM/ODM
All-In-One Integrated Service Design for Full Workflow Unattended Operation: This professional service terminal abandons the single display function of traditional digital signage, integrating thermal receipt printer, high-precision QR code scanner, NFC card induction reader and 5.0MP front HD camera in a single compact body. It covers the whole business workflow of user self-browsing, order selection, identity verification, card swiping payment and automatic receipt printing, realizing zero-staff intervention service. It greatly optimizes service efficiency in peak business hours, solves the problems of long queuing and insufficient manual staff in high-traffic venues, and improves overall customer consumption experience.
Dual-System Compatibility & Tiered Configuration Scalable Upgrade: To match different industry software ecosystems and budget demands, the terminal provides two mature operating system solutions and multi-tier functional versions. The RK3288 Android version with 2GB+16GB stable configuration is lightweight and efficient, suitable for daily simple ordering and registration service; the third-generation i3 Windows 10 version with 4GB DDR3+64GB SSD delivers stronger operational stability and software compatibility, adapting to complex POS settlement and multi-task business processing. Users can freely select basic USB display version or full-functional version with complete peripherals to realize precise matching of functional requirements.
FHD IPS Touch Display for Smooth Interactive Experience: Equipped with industrial 16:9 LCD IPS full-view panel, the terminal supports 1920×1080 FHD high-definition resolution, 3000:1 high contrast ratio and 300cd/㎡ moderate industrial brightness. The 89° symmetrical wide viewing angle ensures clear screen display in different placement environments. It provides two professional touch solutions: sensitive infrared touch and precise capacitive touch, featuring fast response, anti-misoperation and long service life. The smooth and accurate touch interaction greatly improves the efficiency of user self-operation, suitable for long-term high-frequency interactive service scenarios.
Rich Connectivity & Expandable Industrial Performance: Built with complete wired and wireless connection modules including WiFi, Bluetooth, gigabit Ethernet and multi-channel USB ports, supporting stable data transmission, offline operation and remote background management. It also reserves optional 3G/4G network expansion function, breaking the limitation of wired network and realizing flexible deployment in various venues. Matched with built-in 2×3W stereo speakers, it supports voice broadcast of order taking and payment success, realizing multi-dimensional human-computer interaction and improving service intelligence.
Dual Installation Modes & Wide Industry Adaptability: Adopting a versatile body structure design, the terminal supports free switching between floor-standing vertical placement and wall-mounted embedded installation. It can be flexibly adapted to narrow store counters, lobby walls and independent service areas, with small footprint and strong environmental adaptability. The whole machine is built for commercial long-term high-frequency operation, with stable hardware performance and low failure rate, meeting 24-hour unattended service demands of various high-traffic public service venues.
Brand & Custom Service: AIYOS professional intelligent service terminal manufacturer, supports full-scene OEM / ODM personalized customization
Screen Specification: 21.5''–43'' optional LCD IPS full-view panel, 16:9 commercial aspect ratio, LED backlight
Display Parameters: 1920×1080 FHD resolution, 300 cd/m² standard brightness, 3000:1 high contrast ratio
Viewing Angle: 89° horizontal / 89° vertical industrial wide viewing angle
Touch Mode: Optional IR infrared touch / capacitive touch (configurable by version)
System & Hardware Configuration: Android (RK3288, 2GB RAM+16GB Storage); Windows 10 (3rd Gen i3, 4GB DDR3+64GB SSD, system license not included)

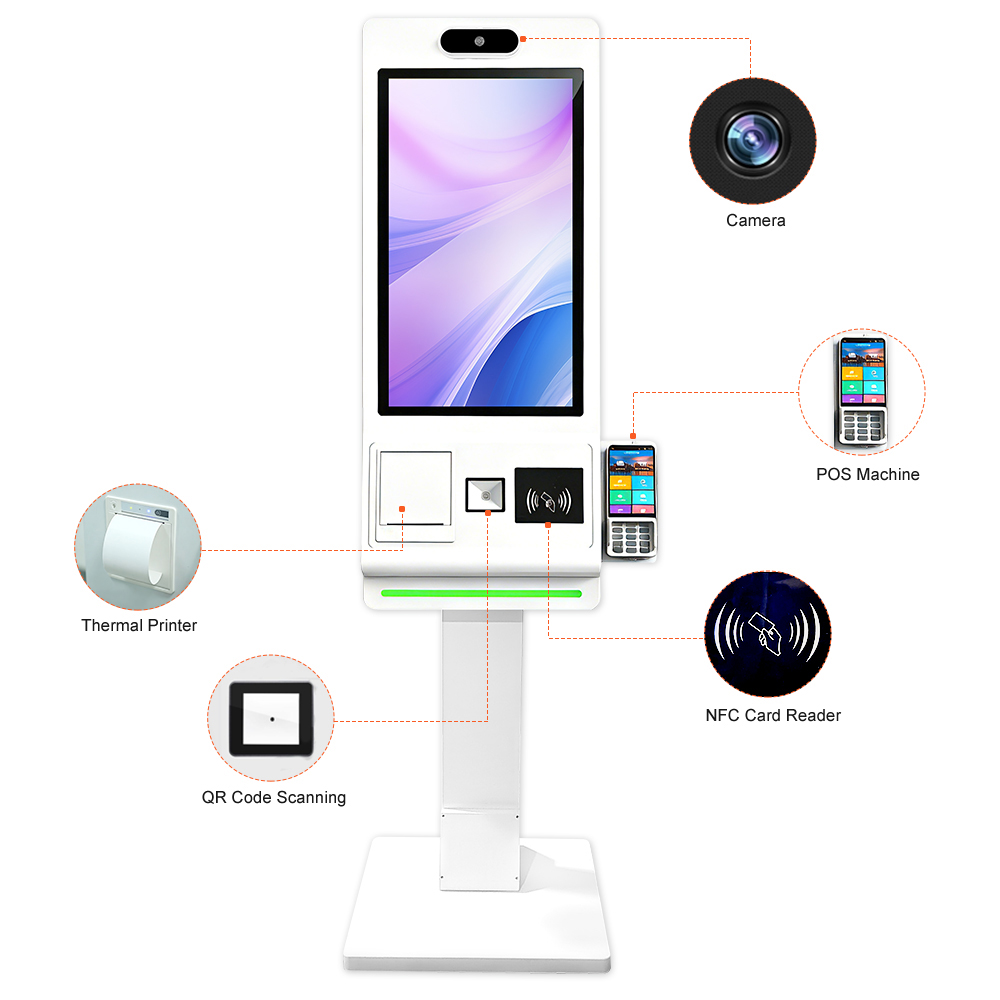

Integrated Peripheral Modules: Built-in thermal receipt printer, QR code scanner, NFC card reader, 5.0MP front camera (high-version equipped)
Network Connectivity: WiFi 802.11, Bluetooth, Ethernet RJ45, USB ports, optional 3G/4G module
Audio Configuration: Built-in 2×3W stereo speakers for voice broadcast and prompt

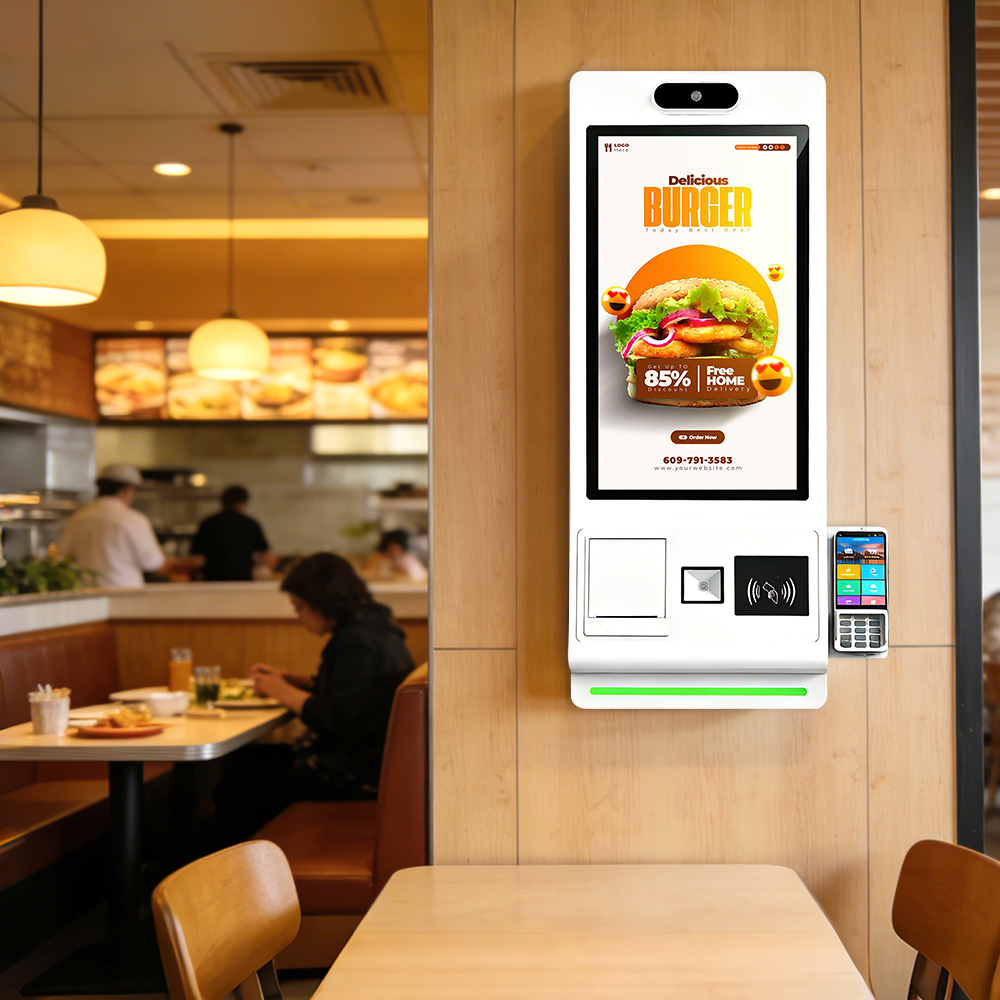

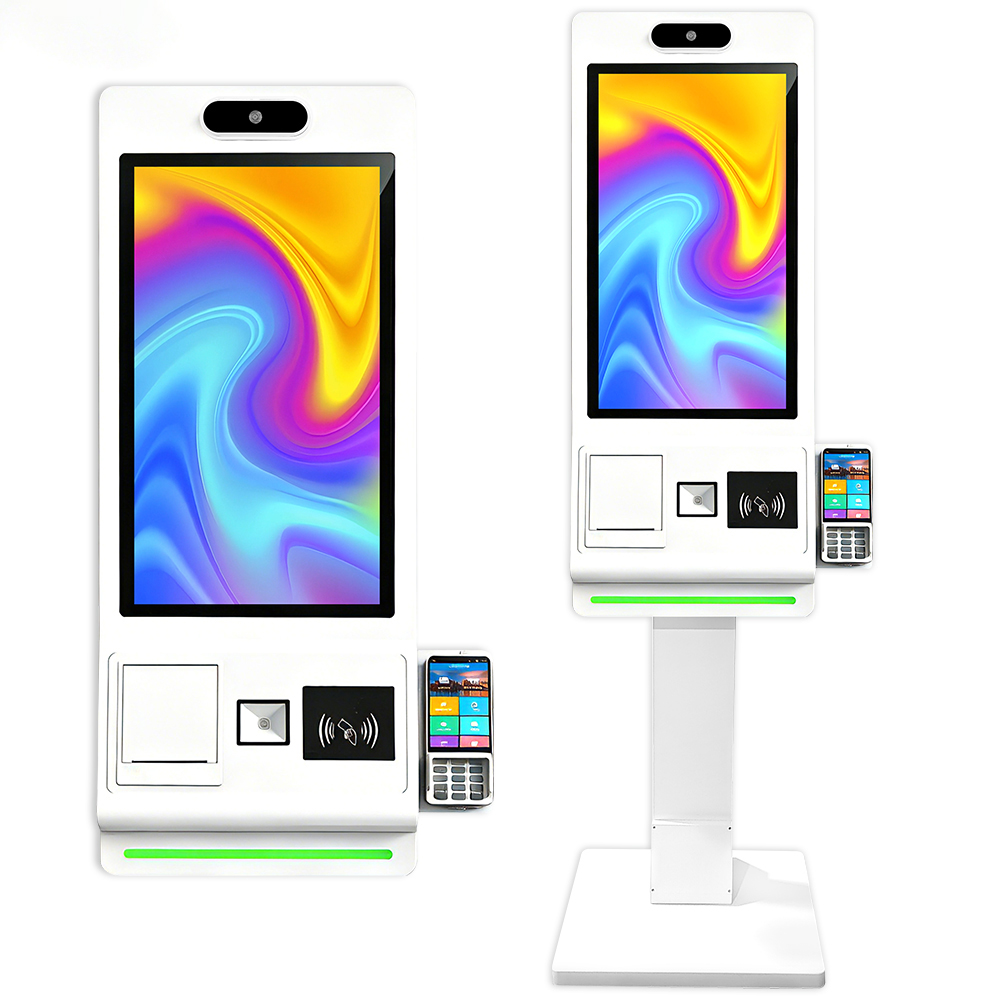

Installation Method: Dual optional installation: floor-standing / wall-mounted
This multi-functional self-service ordering and payment terminal is specially built for high-efficiency unattended service scenarios with large passenger flow. It is widely used for self-service ordering and checkout in fast food restaurants and QSR catering industries, self-checkout settlement in canteens, automatic ticket checking and ticketing in cinemas, self-service POS settlement in retail stores, as well as business registration in hospitals and self-check-in service in hotels. With integrated one-stop service capability, flexible dual-system adaptation and diverse installation forms, it perfectly solves the pain points of queuing congestion and high labor cost in various commercial and public service venues, and is an efficient and intelligent terminal solution for modern unmanned service upgrading.
