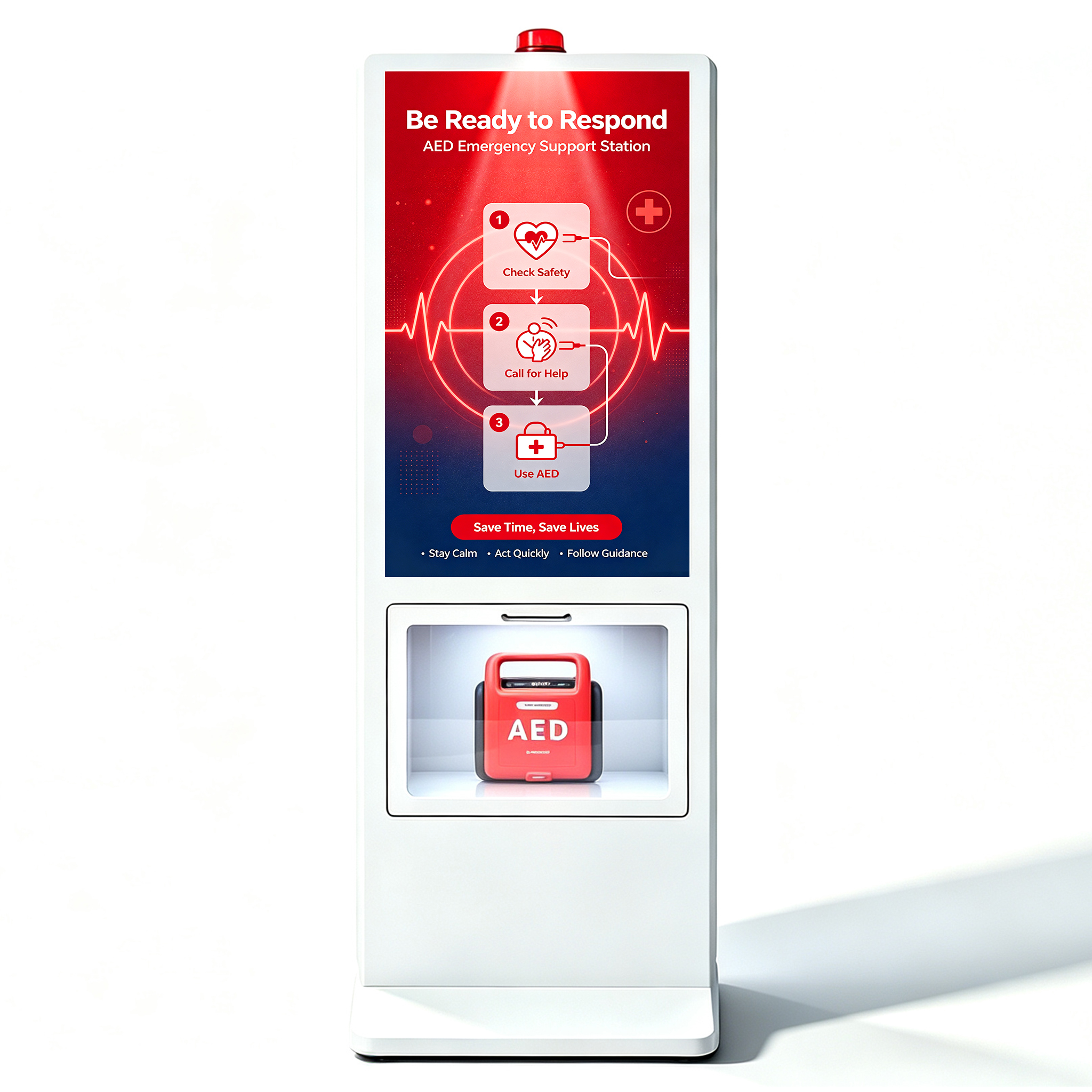

Smart AED Emergency Kiosk with Digital Signage

Core Product Advantages

• 3-in-1" Integration : This AED kiosk integrates an AED, a first-aid kit and an HD interactive display into one smart emergency station, upgrading a simple rescue cabinet into a multi-function lifesaving device that handles cardiac arrest, bleeding and heatstroke.

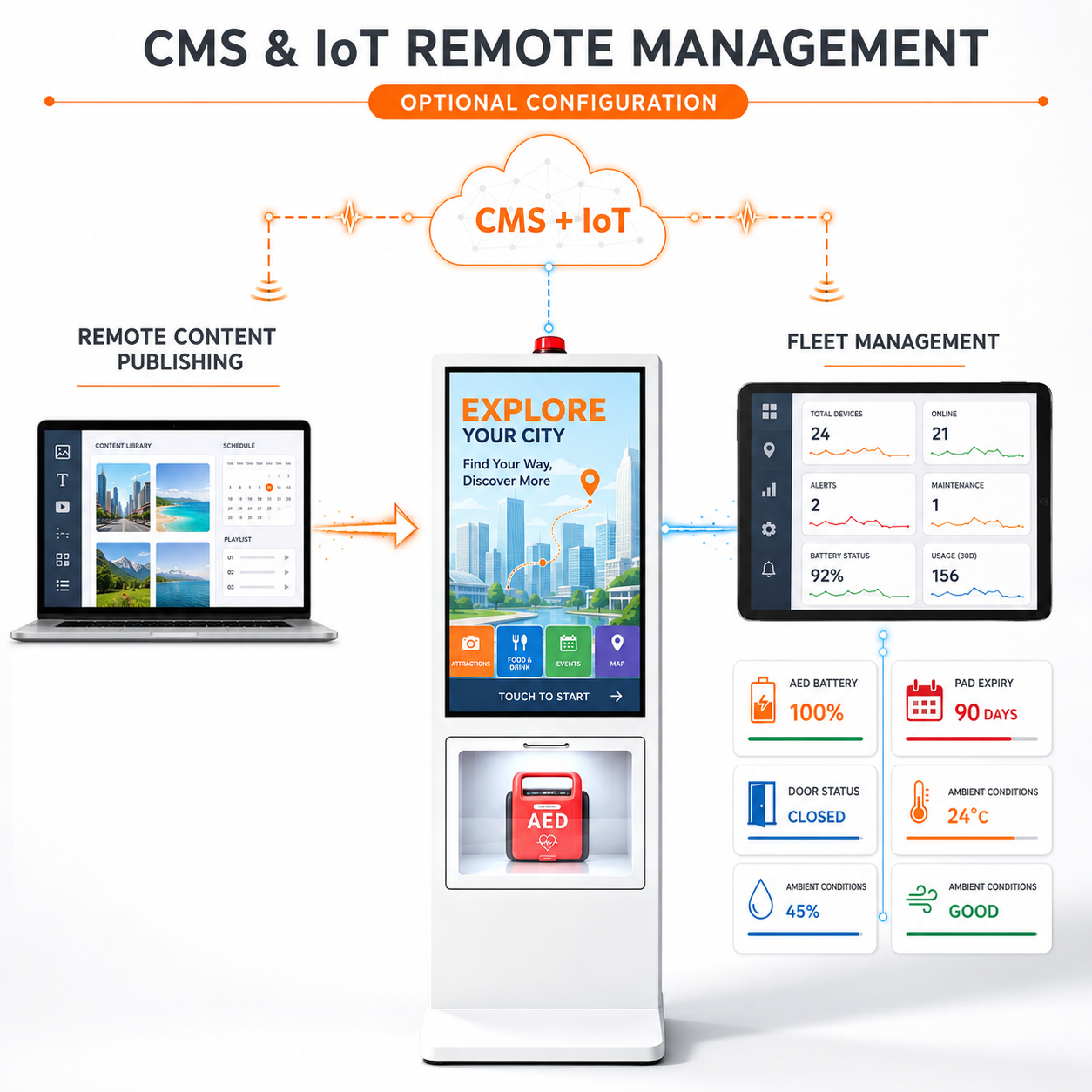

• IoT Remote Monitoring : IoT remote monitoring keeps every unit online via 4G/5G/Wi-Fi, tracking AED battery level, pad expiry, door status and ambient temperature/humidity in real time with automatic alerts, cutting maintenance workload by about 40%.

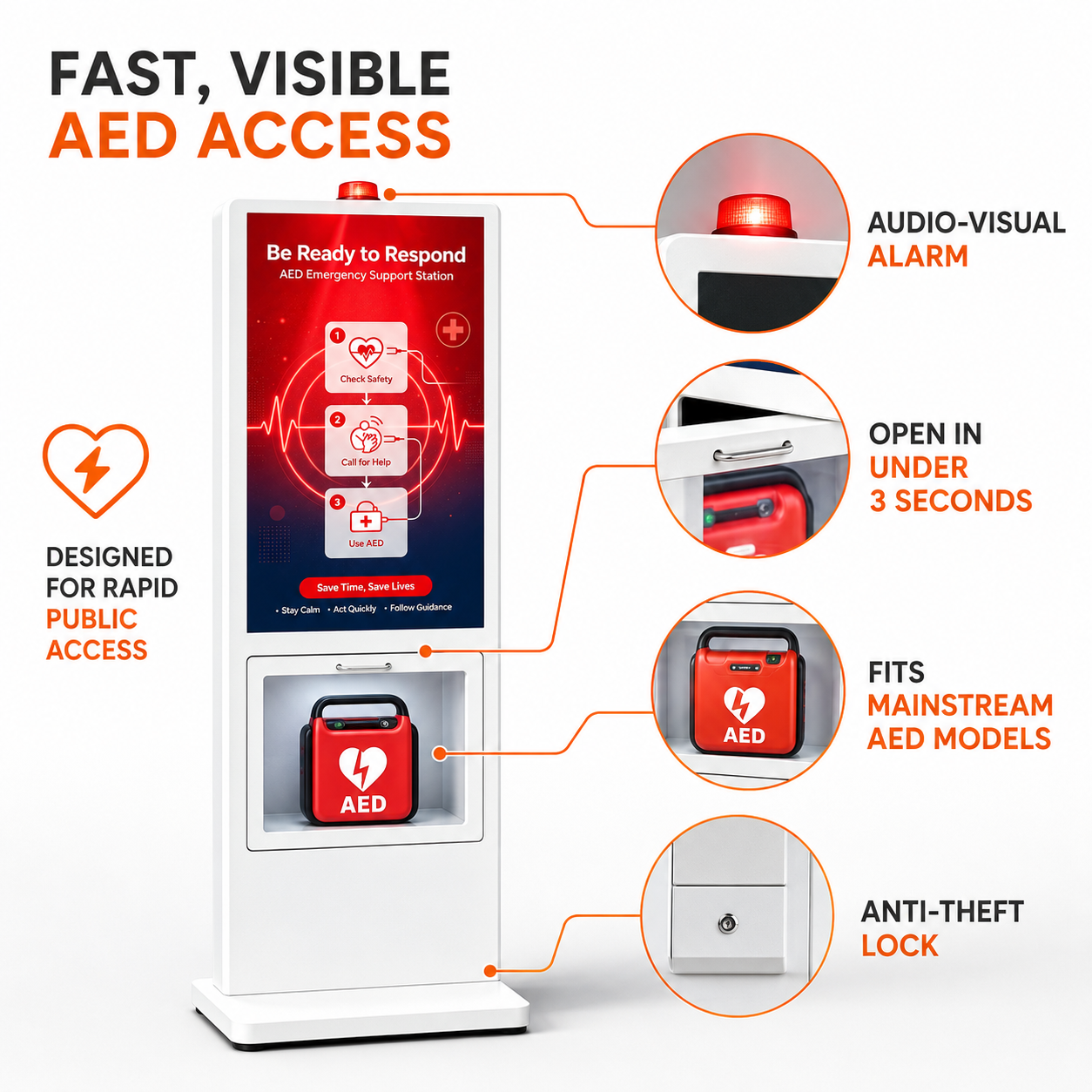

• Golden 4 Minutes" Rapid Access : The "Golden 4 Minutes" design opens the magnetic door in under 3 seconds with simultaneous audio/visual alarm, letting anyone grab the AED one-handed while voice prompts guide untrained bystanders through defibrillation and CPR step by step.




• Dual-Mode HD Interactive Screen : The HD touchscreen runs in dual modes — daily mode rotates first-aid education, CPR tutorials and ads, while emergency mode becomes an AED locator with 3D rescue maps and one-tap navigation to the nearest defibrillator.




• Self-Funding Advertising Model : On-screen advertising can be sold to local businesses to cover the device cost — the proven JCDecaux model — helping governments and NGOs hit their AED coverage targets while generating commercial return from one machine.




• Compatible with All Mainstream AED Models : The universal bay is designed to fit virtually all mainstream AED models on the market, so buyers can use their existing AED, source a compliant unit from us, or follow our recommendation.

• Industrial-Grade Durable Build : Industrial-grade construction — sheet-metal body with powder-coated anti-corrosion finish — is impact- and vandal-resistant, engineered for continuous indoor operation in metros, airports, malls, schools and office buildings.

• Anti-Theft & Tiered Access Control : Anti-theft and anti-vandalism protection includes audio/visual alarm, electromagnetic lock and open-detection linkage, plus RFID-managed first-aid supplies and three-tier access control (administrator / rescuer / public).

• Full Data Traceability & Compliance : Usage, rescue, maintenance and access logs are all recorded and exportable to meet Red Cross and government acceptance requirements, while QR-code electronic training certificates make outreach measurable.

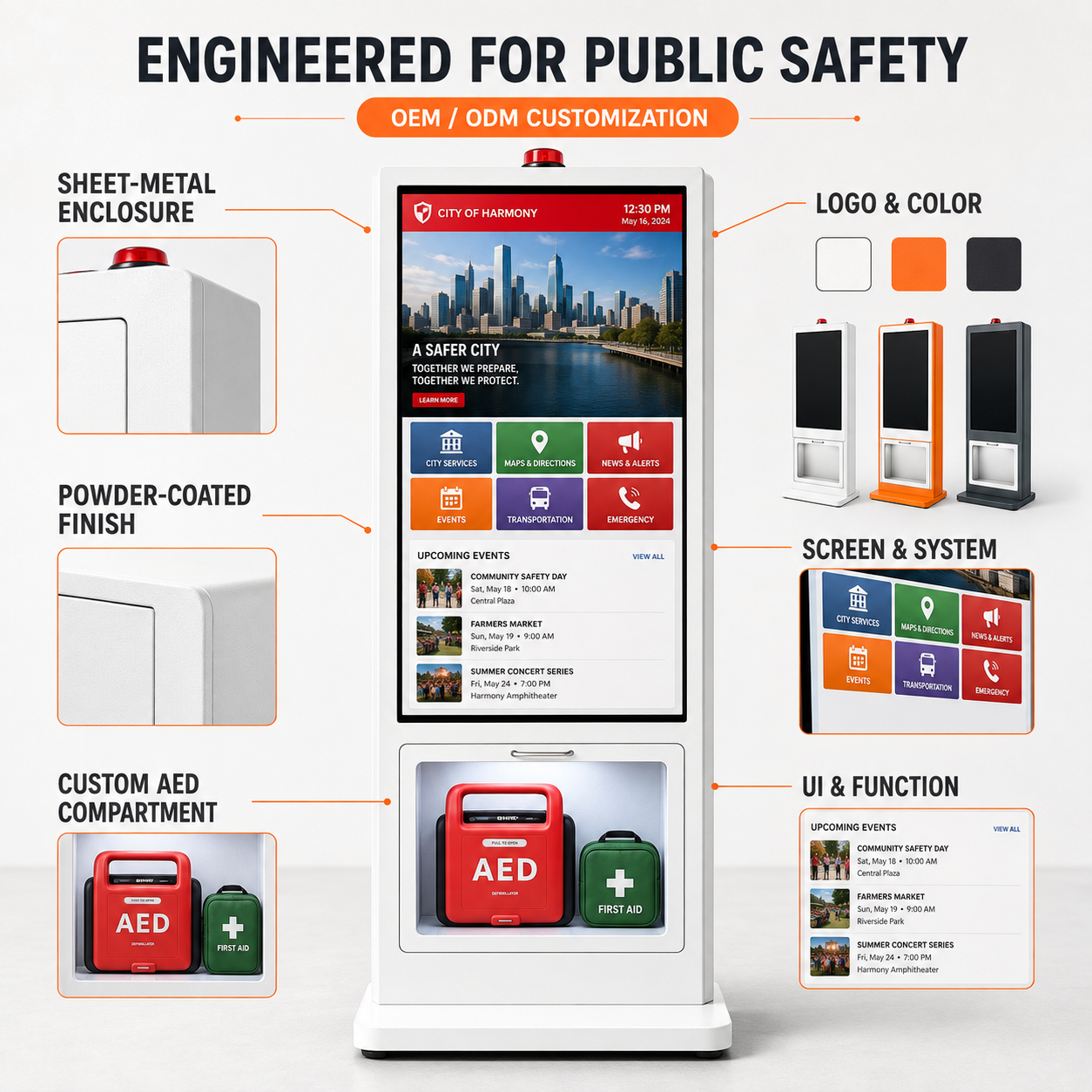

• OEM/ODM Customization & Fast Production : Full OEM/ODM support — size, color, logo, cabinet structure, screen spec and system UI are all customizable — backed by existing signage production lines for fast sampling and fast mass production.

• Applications & Target Customers : Airports / Stations / Metro /  Malls / Shopping Centers / Schools / University Campuses / Sports Venues / Fitness Centers / Corporate Parks / Office Buildings / Government Buildings / Civic Centers / Communities / Neighborhood Centers / Libraries / Museums / Galleries / Hotels / Convention Centers / Factories / Warehouses / Hospitals / Clinics / Places of Worship / Mass Gatherings

• Config notes: Android: mature CMS ecosystem, cost-effective, fast delivery — fits 90% of customer needs; · Windows: for projects running custom software or integrating with hospital/government systems; · Capacitive touch: premium, responsive; · IR touch: large size, strong anti-interference, gloved-hand operation; · No touch: pure ad/education screen, best cost. Protection add-ons: vandal-proof glass, reinforced enclosure.

Full Product Specifications

• Brand & Custom Service: AIYOS professional indoor & outdoor commercial display manufacturer, supports full-scene OEM / ODM personalized customization

• Display Panel: Industrial-grade LCD IPS screen, 16:9 commercial standard aspect ratio

• Display Resolution: Standard 2K FHD 1920×1080, optional 4K UHD ultra-high definition upgrade

• Screen Brightness: Standard 350 cd/m², customizable brightness up to 2500 nits

• Contrast Ratio: 3000:1 high industrial contrast for layered and vivid picture performance

• Viewing Angle: 178° (Horizontal) / 178° (Vertical) ultra-wide full viewing angle

• Configuration Versions: USB standalone playback version; Android non-touch/touch version (IR/capacitive optional); Windows touch interactive version

• Connectivity Ports: 2.4G WiFi (dual-band optional), 100/1000M gigabit Ethernet, Bluetooth, HDMI-IN/OUT, 1–4 configurable USB ports, SD card slot

• Optional Expansion Accessories: 4G network module, 2MP/5MP front camera, 4-wheel mobile base, dedicated CMS management software

• Audio System: Built-in 2×5W high-quality stereo speakers for synchronous audio-video playback

• Power Supply: Built-in industrial power board, AC100-240V universal global voltage input

• Installation Method: Stable floor-standing / freestanding integrated placement

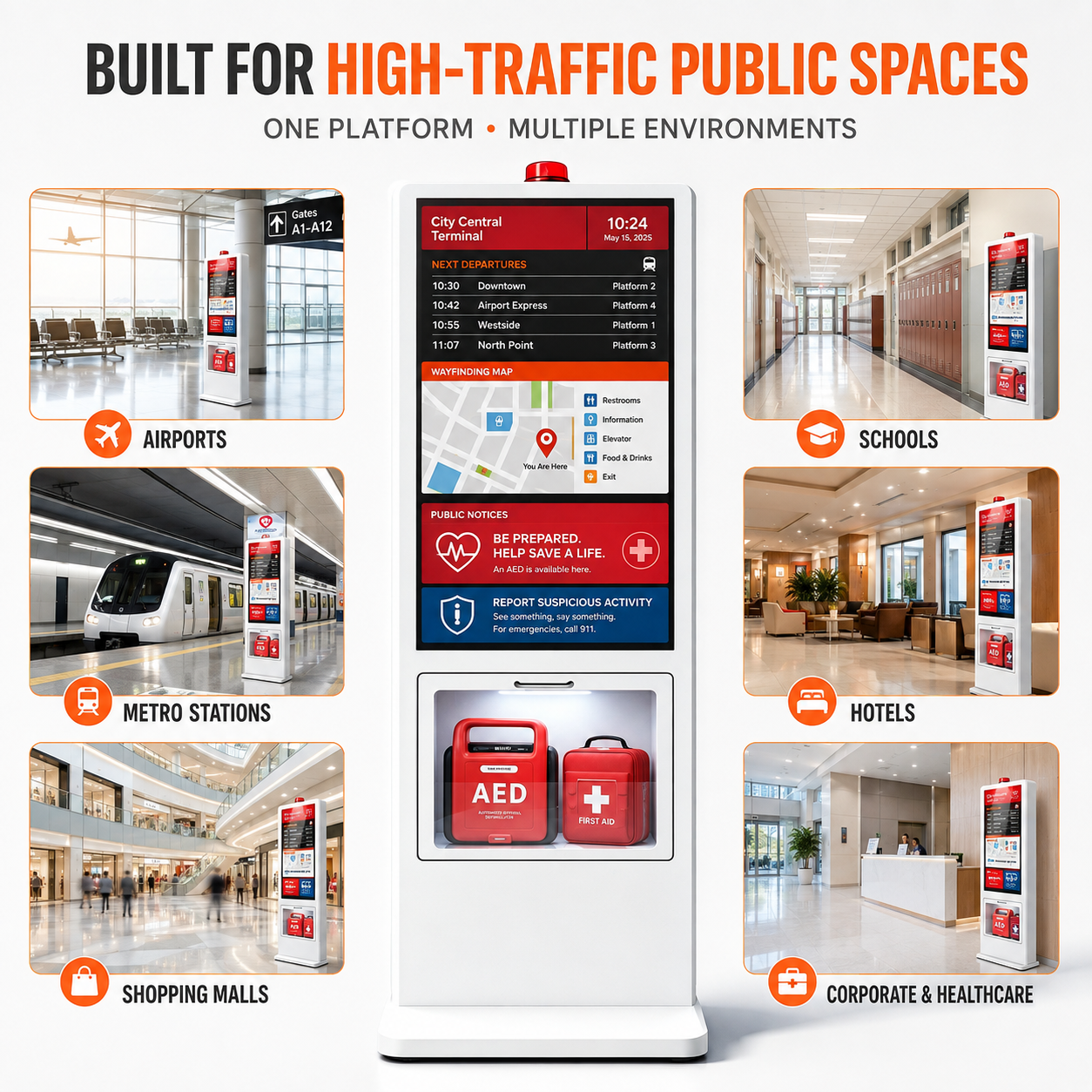

Application Scenarios

The AED Digital Signage Kiosk with Defibrillator Cabinet is ideal for a wide range of indoor public and commercial environments where rapid emergency response, public health education and digital communication converge:

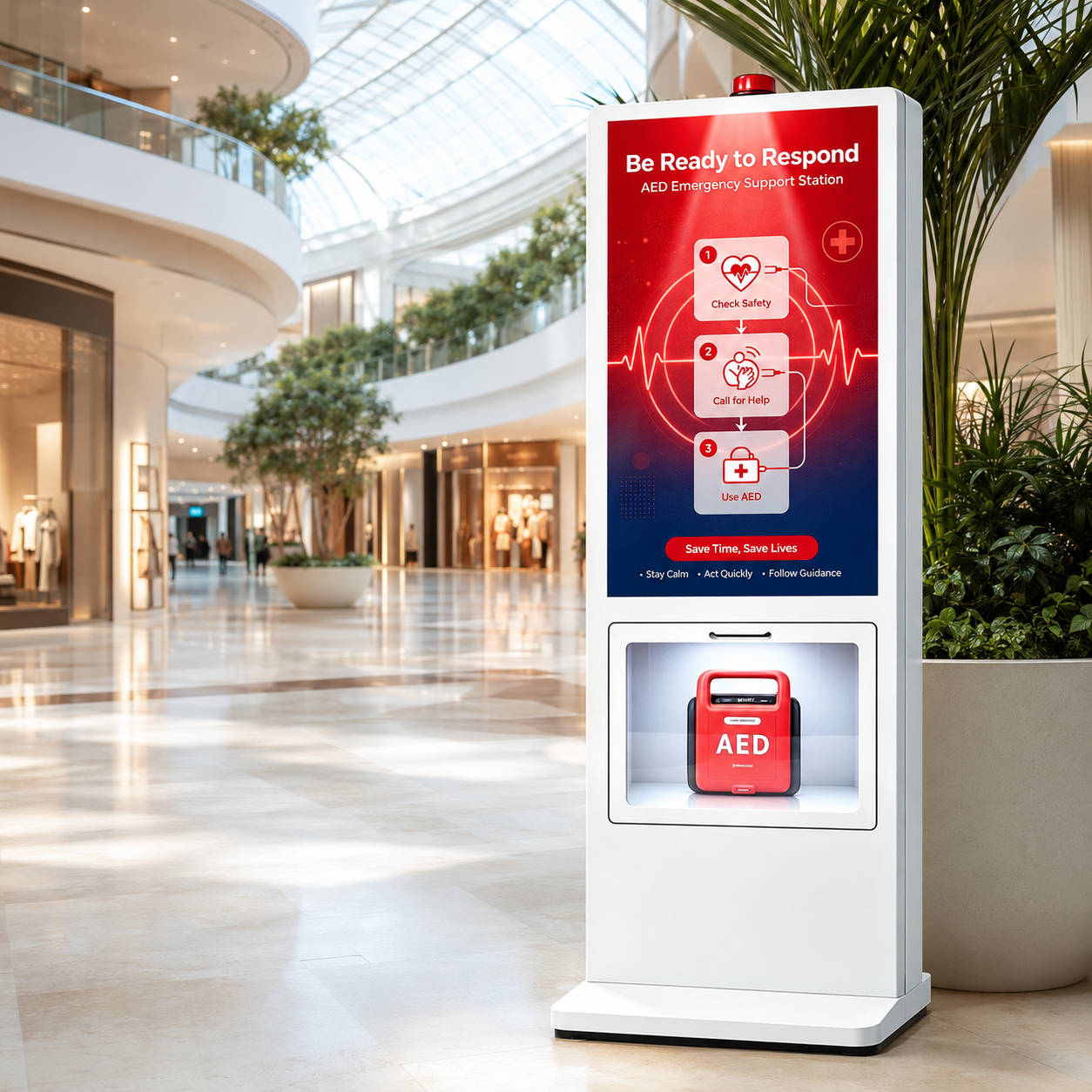

• Shopping Malls & Retail Stores – public-access AED coverage combined with promotional advertising, ensuring golden-minute defibrillation while the HD screen runs retail campaigns and first-aid education

• Airports & Transportation Hubs – high-footfall emergency readiness at terminals and gates, with multilingual emergency voice guidance, wayfinding and advertising display for passengers

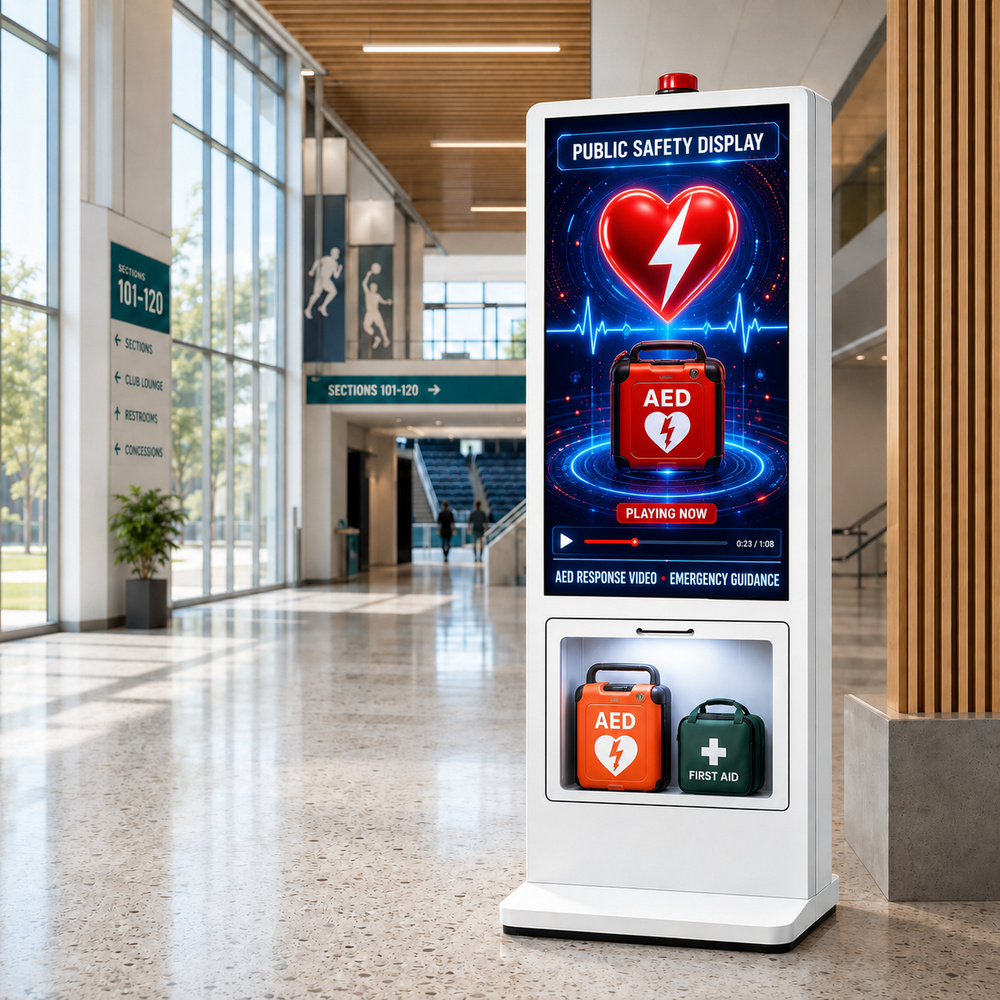

• Sports Stadiums & Fitness Centers – rapid cardiac-arrest response courtside and in spectator areas, where sudden cardiac events are most likely, paired with event promotions and crowd information

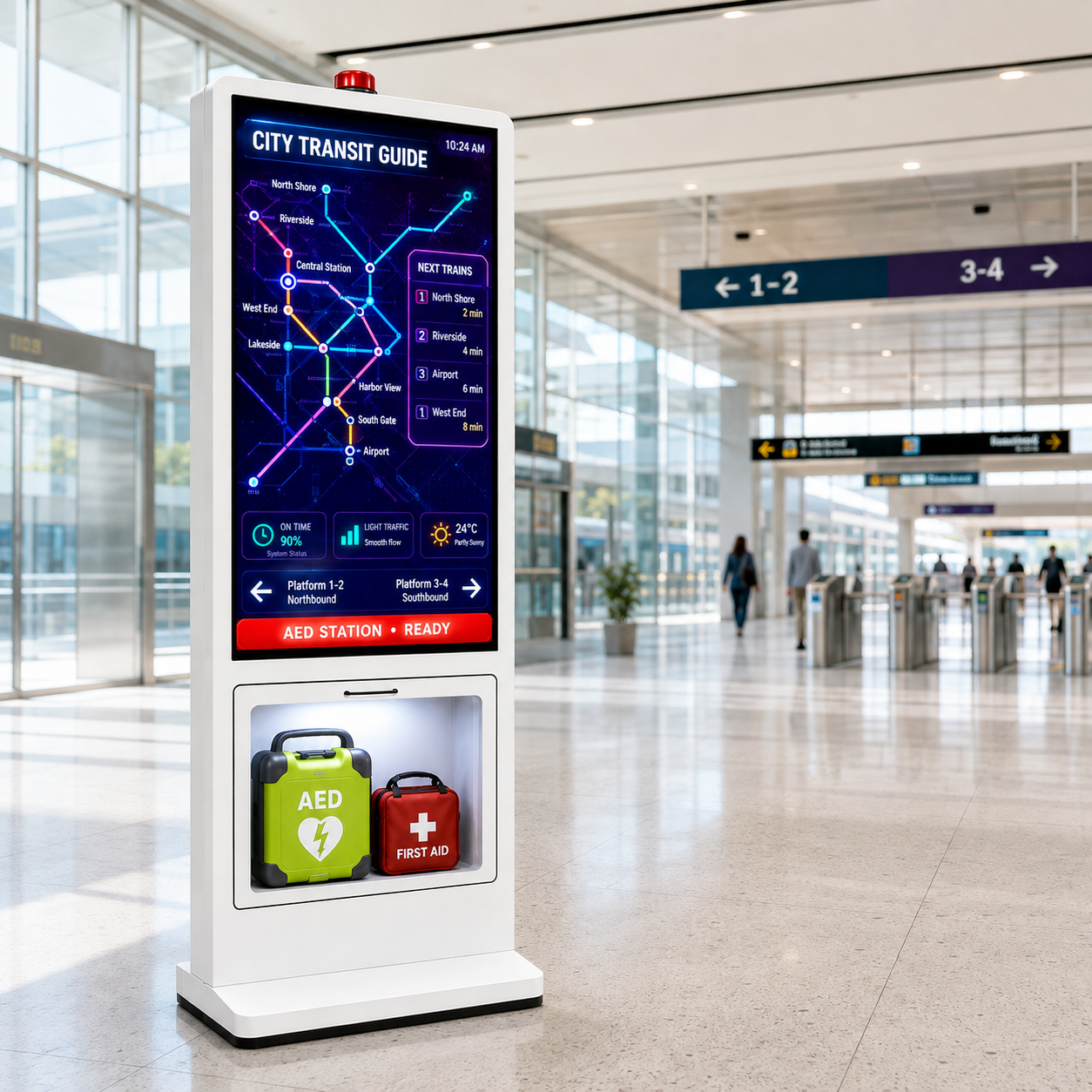

• Metro & Railway Stations – networked AED deployment across station concourses, with real-time IoT status monitoring and commuter-facing advertising

• Schools & Universities – campus-wide cardiac safety for students and staff, with the interactive screen serving as a CPR and first-aid teaching station

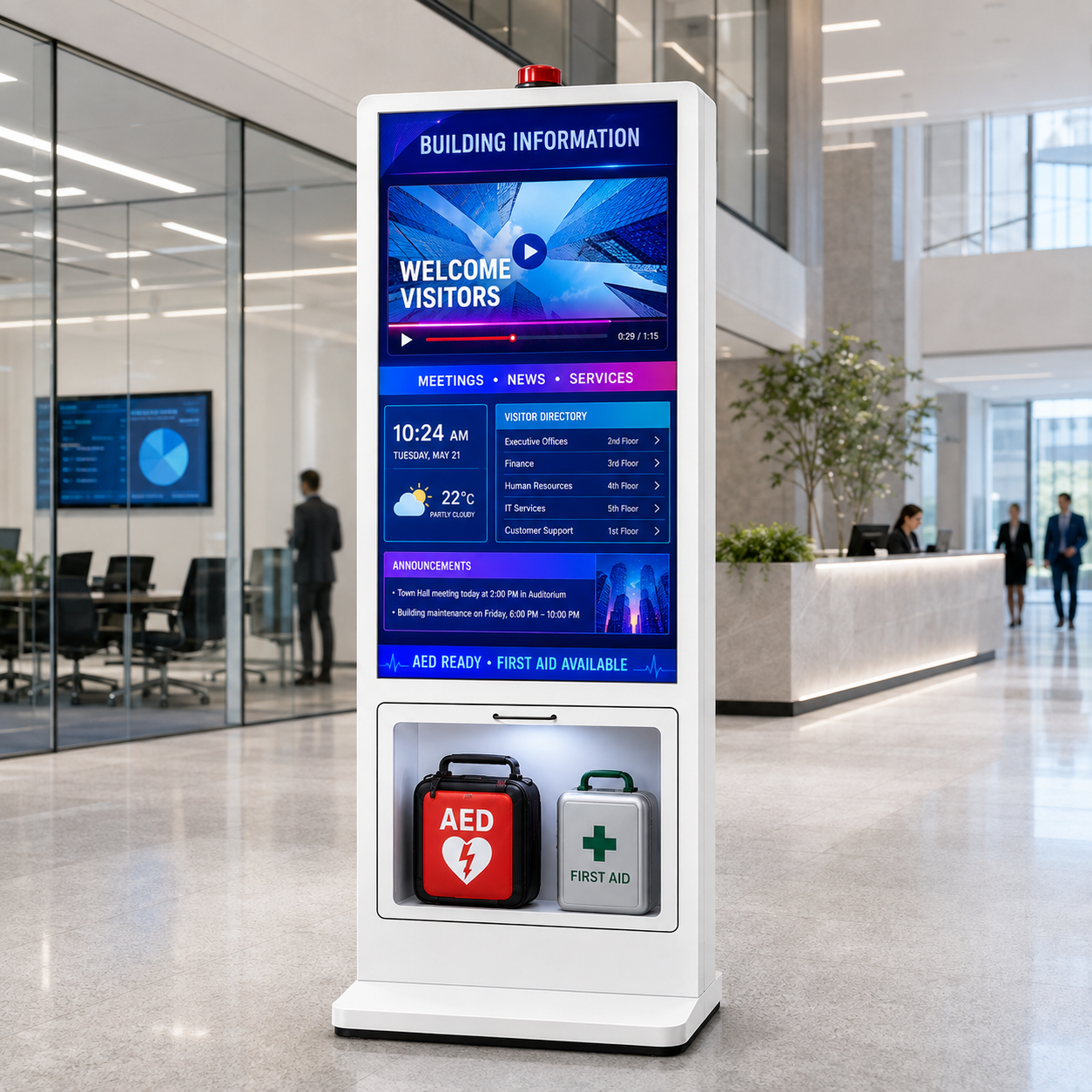

• Corporate Office Buildings & Reception Lobbies – employee and visitor cardiac protection at entrance and common areas, with visitor wayfinding and corporate messaging on the display

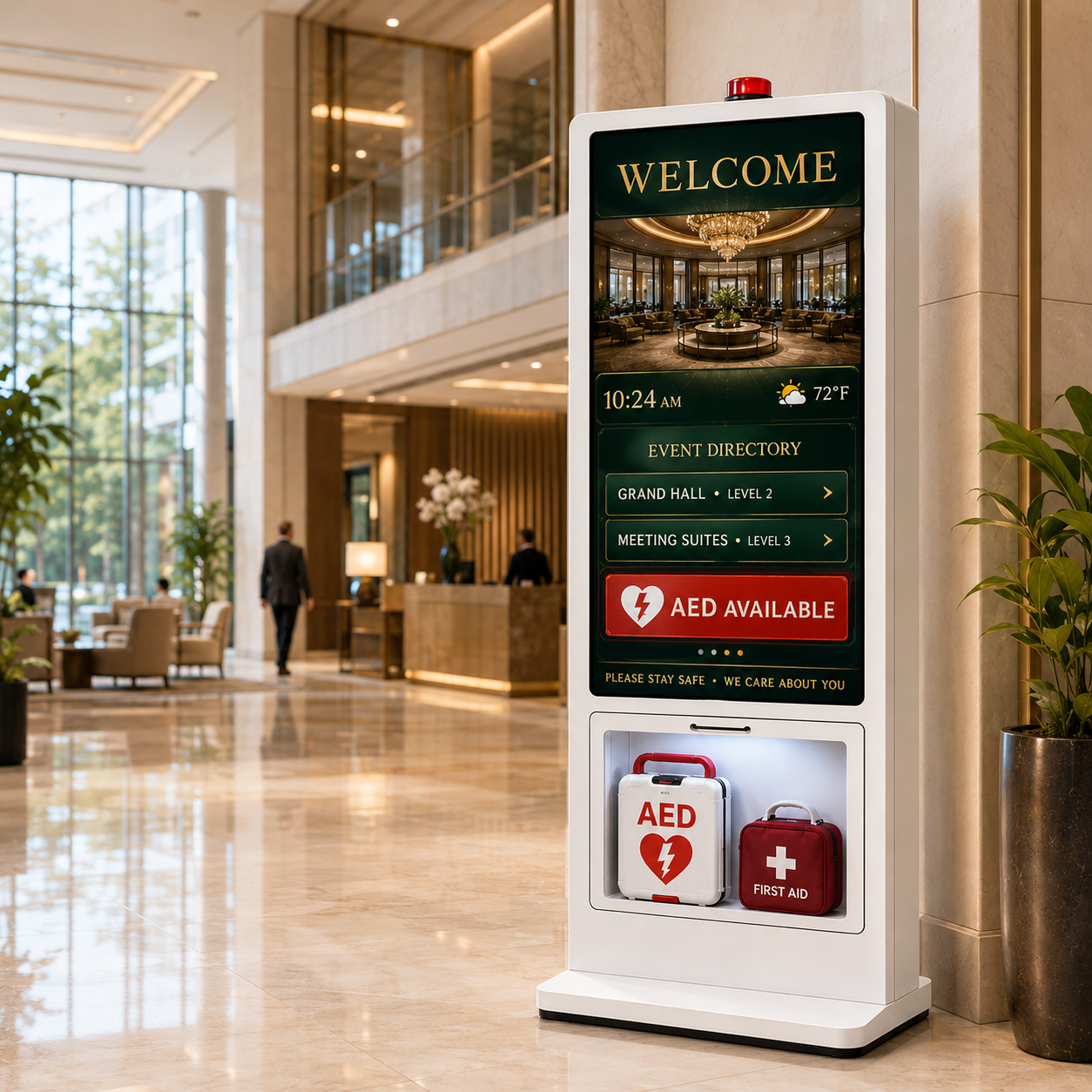

• Hotels & Resorts – 24/7 guest safety in lobbies and convention areas, with multilingual emergency guidance and local information services

• Government & Public Service Centers – compliant public AED coverage meeting municipal emergency-response standards, with public-service announcements and queue management information

• Museums & Exhibition Halls – visitor cardiac safety in large galleries, with the screen doubling as an exhibit guide and emergency locator

• Healthcare Facilities & Hospital Outpatient Areas – supplemental public-access defibrillation in waiting halls, with department directories, appointment information and health education

• Community Centers & Residential Complexes – neighborhood-level AED coverage for residents, with community notices and health-awareness content
