AIYOS

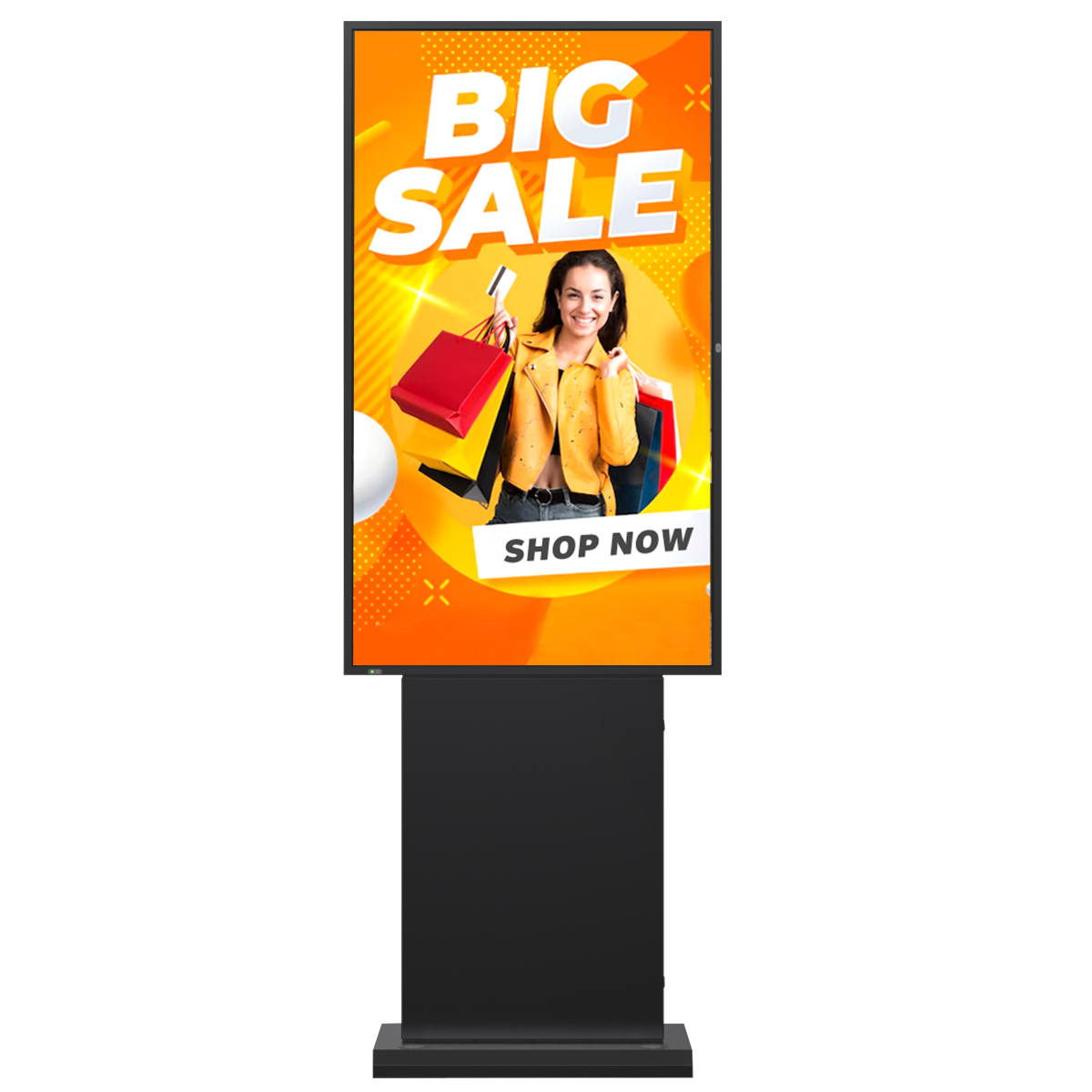

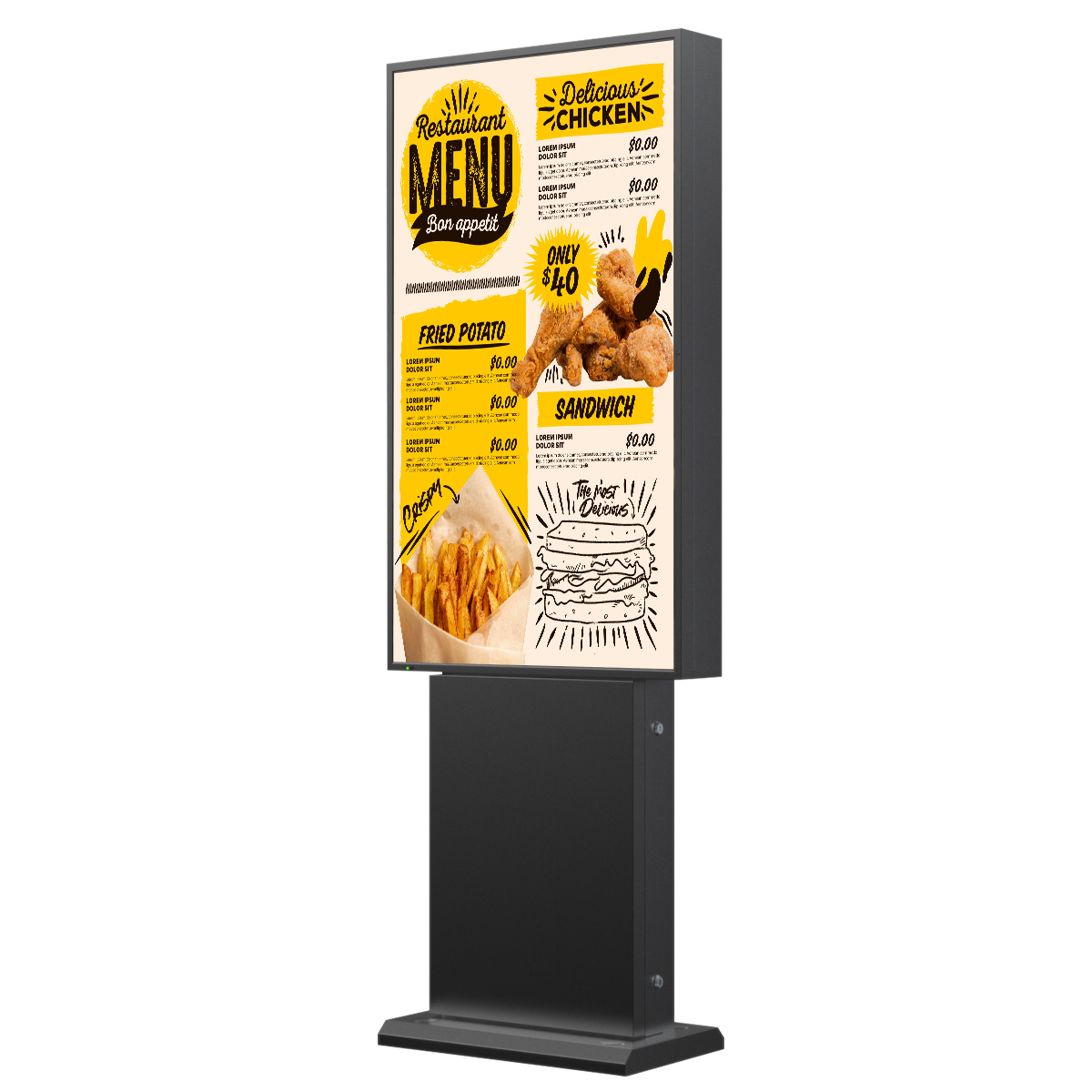

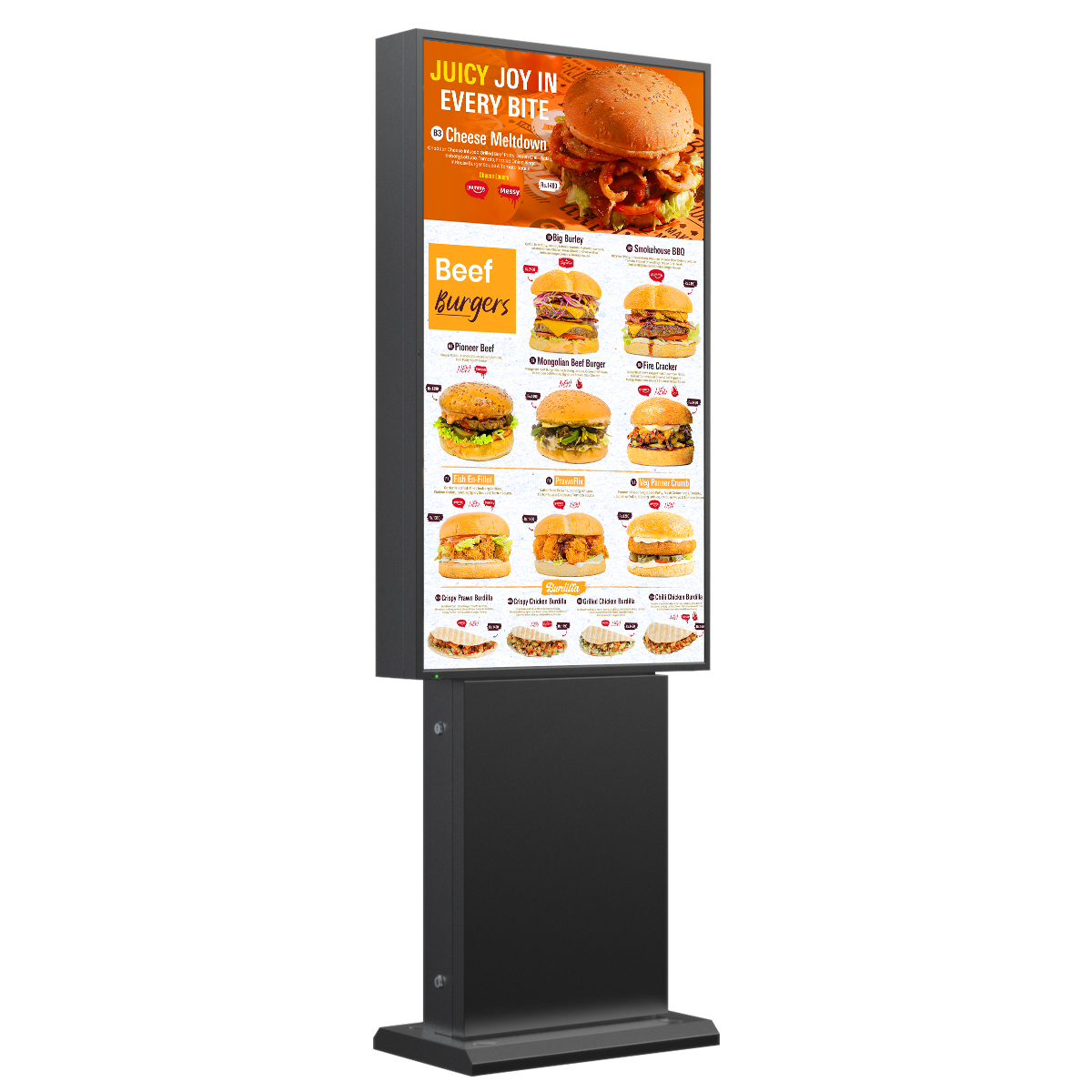

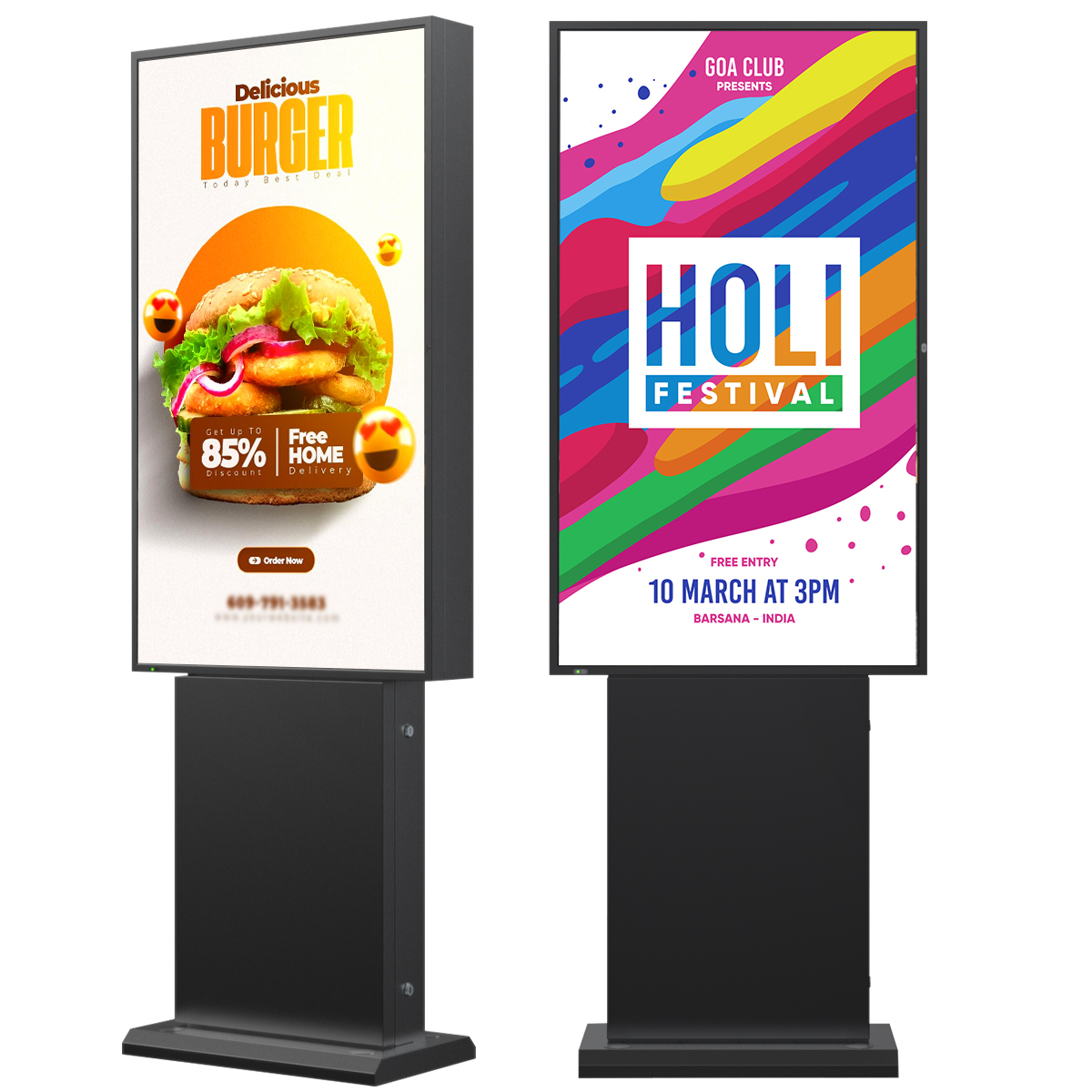

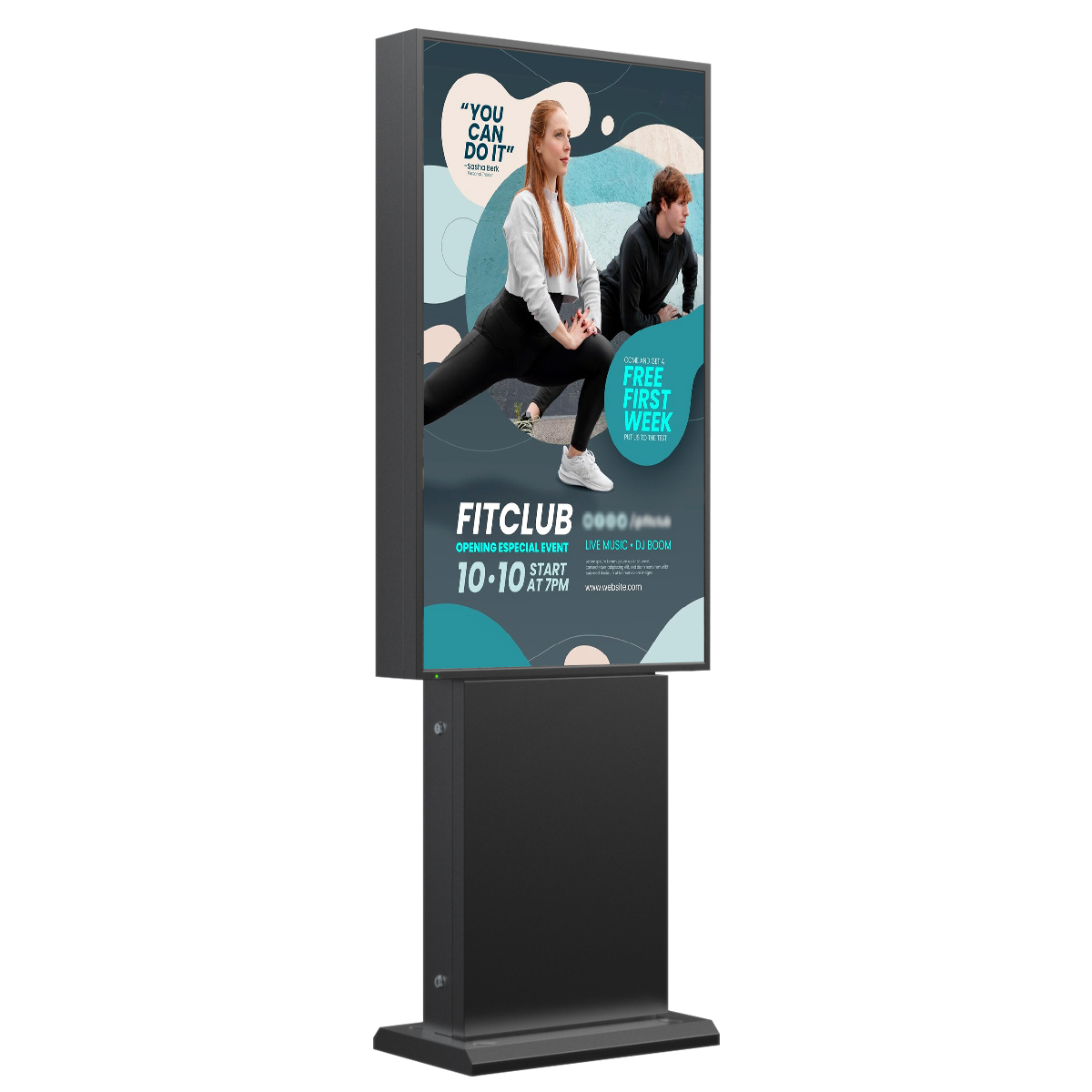

Layered High-Brightness Visual Experience & True-to-Life Display: Breaking the limitations of ordinary outdoor screens, this kiosk adopts professional 16:9 IPS full-view panels with LED backlight, boasting a 3000:1 high contrast ratio and 178° ultra-wide viewing angle in all directions. The standard 2500 nits brightness can be freely upgraded to 3000/3500/4000/4500 nits, perfectly solving screen fading and reflection issues under strong outdoor sunlight. Optional 4K UHD ultra-high resolution upgrade further enhances picture fineness, presenting layered, vibrant and high-impact advertising visuals for long-distance public viewing.
Dual Heavy-Duty Protection for Harsh Outdoor Operation: Built to endure complex outdoor environments, the device integrates dual core protection capabilities. IP65 protection is standard, with IP66 configurations available for projects requiring enhanced weather resistance, dust and humid air to prevent internal circuit damage; the upgraded 6mm IK10 explosion-proof tempered glass resists daily impact, scratch damage and accidental collision in crowded public areas. It supports stable operation in a wide temperature range of -20°C to 50°C, realizing true all-weather outdoor adaptive operation.
Multi-Version Configurable System for Diversified Scenarios: Differentiated from single-function outdoor kiosks on the market, this product provides three core configuration versions to match different budget and functional needs. The Android WiFi version meets basic stable advertising playback; the Android WiFi + Nano Touch version supports sensitive human-computer interaction; the Windows WiFi version delivers powerful computing performance for complex software operation and multi-task processing. Users can freely adjust processor, running memory and storage space to achieve exclusive customized performance matching.
Flexible Touch Customization & Immersive Audio-Video Sync: It supports optional high-sensitivity Nano multi-touch and upgraded G+G touch technology (customizable at low additional cost), with precise and smooth touch response suitable for high-frequency interactive operations. Equipped with dual 2×5W high-power stereo speakers, it realizes clear and loud audio output, perfectly matching video advertising, public broadcasting and interactive voice feedback to create a complete immersive audio-visual communication effect.
Expandable Functional Modules & Low Operational Adaptability: In addition to basic display and interactive functions, it supports optional customized accessories such as air conditioning cooling, heating system and AR anti-glare glass, adapting to extreme cold, extreme heat and strong light special scenarios. Equipped with complete WiFi, Bluetooth, Ethernet and USB multi-connection methods, it supports offline card insertion playback and remote online management. With graded power consumption design for different versions, it balances operational performance and energy-saving efficiency.
Brand & Custom Service: AIYOS professional outdoor commercial display brand, supports full-process OEM / ODM personalized customization
Display Parameters: IPS full-view panel, LED backlight, 16:9 classic aspect ratio; standard FHD 1920×1080 resolution, optional 4K UHD ultra-high definition upgrade
Visual Performance: 3000:1 high contrast ratio, 178° horizontal and vertical ultra-wide viewing angle; 2500cd/m² standard brightness, optional 3000/3500/4000/4500 nits high brightness
Protection Performance: IP65 standard; IP66 available for selected configurations; 6mm thick IK10 explosion-proof tempered glass panel
System Configuration Versions: Android WiFi (multiple processor/ROM/RAM/OS optional); Android WiFi + Nano Touch; Windows WiFi (Intel 4th Gen i3, 4GB DDR3, 128GB SSD, Win10 Pro)
Touch Options: Optional Nano multi-touch; upgraded G+G capacitive touch available for customization
Connectivity: WiFi 802.11 wireless network, Bluetooth, Gigabit Ethernet RJ45, USB ports and SD card slot (configuration varies by version)
Audio System: Built-in 2×5W high-power stereo speakers for high-fidelity audio playback
Power Parameters: AC100-240V 50/60Hz universal internal power supply; graded power consumption: 168W (Android), 198W (Android+Nano Touch), 238W (Windows)
Working Environment: Wide adaptive temperature range: -20°C ~ 50°C, suitable for extreme weather environments
Optional Accessories: External air conditioner, heating system, AR anti-reflective glass

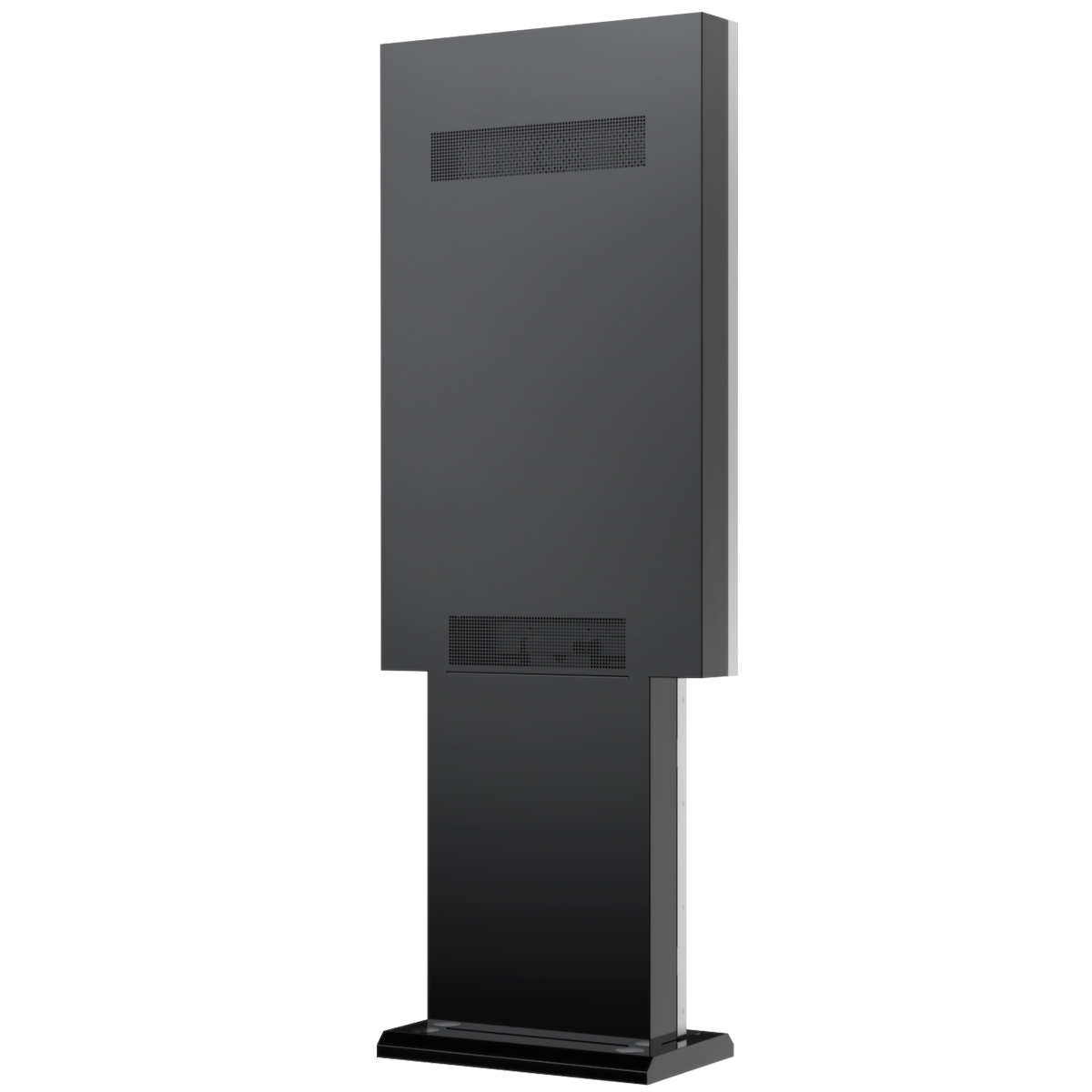

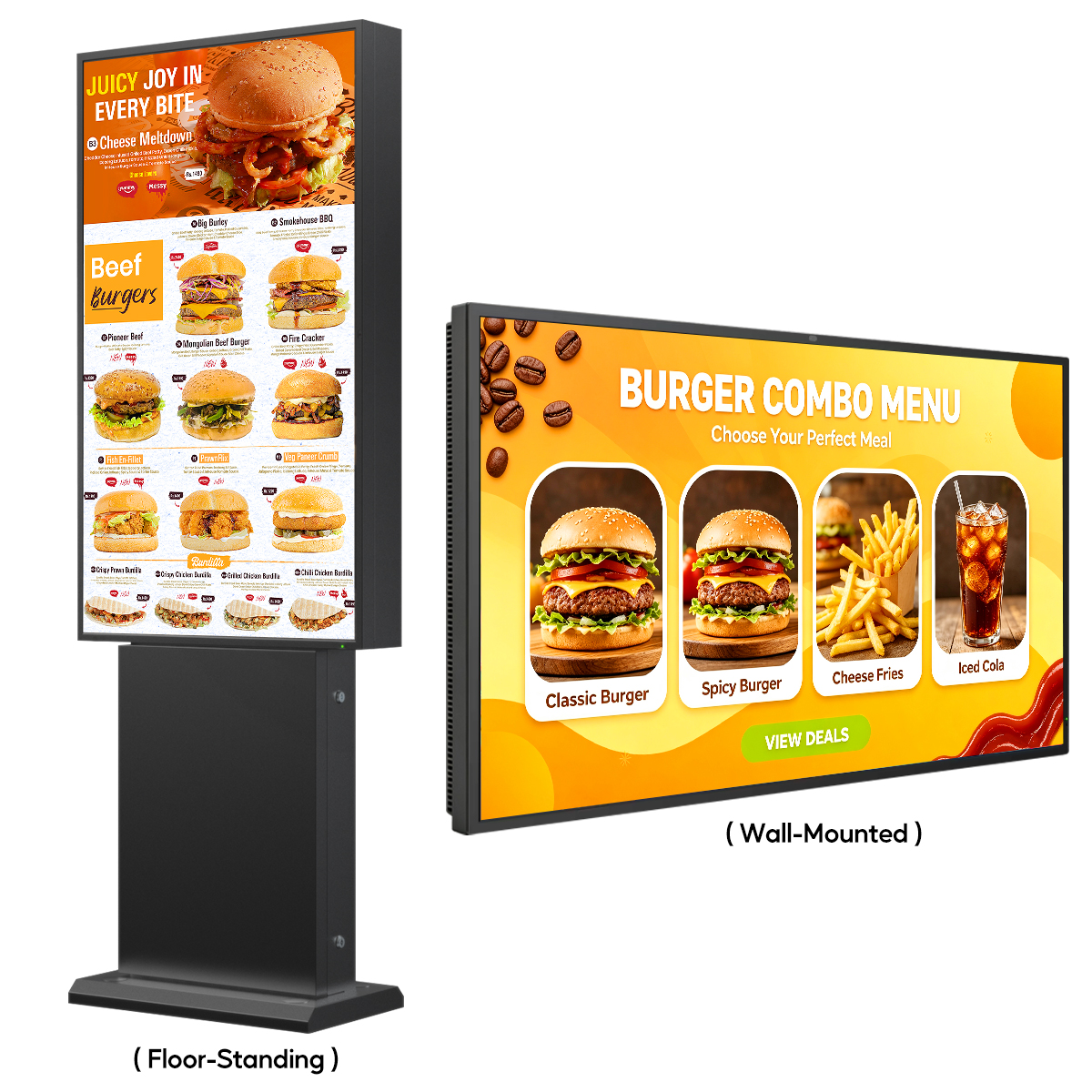

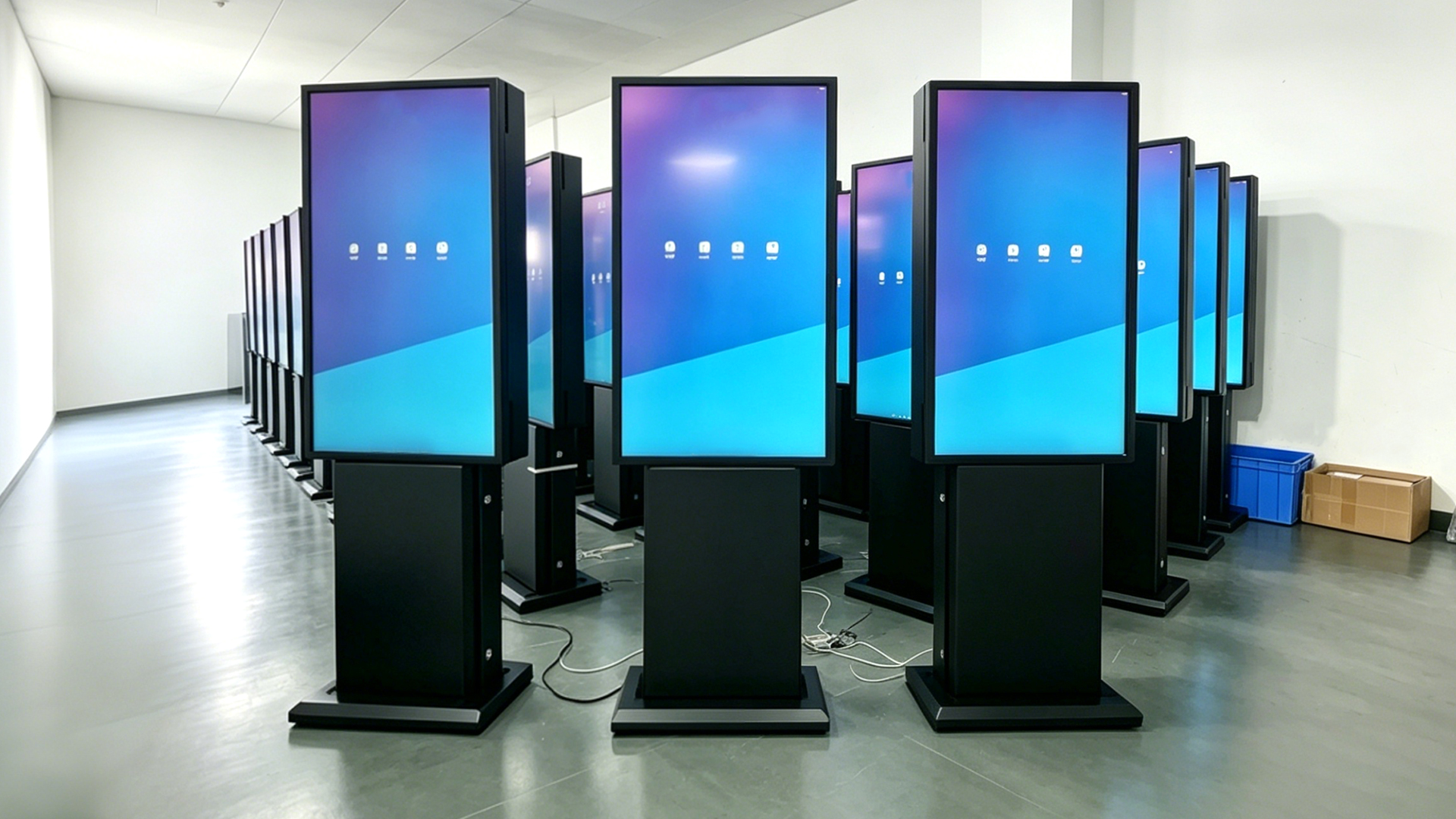

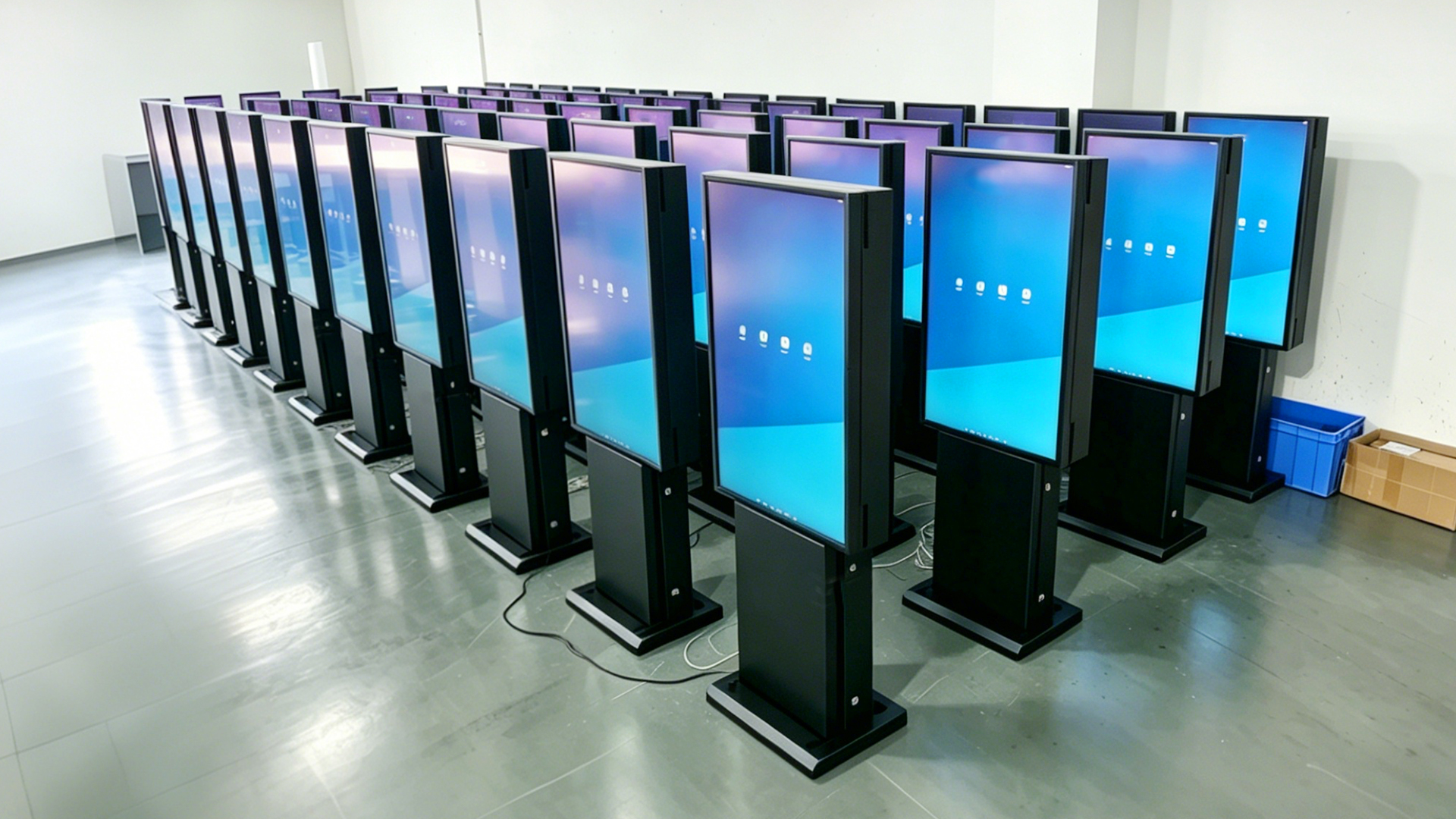

Installation Method: Stable freestanding / floor-standing integrated kiosk design

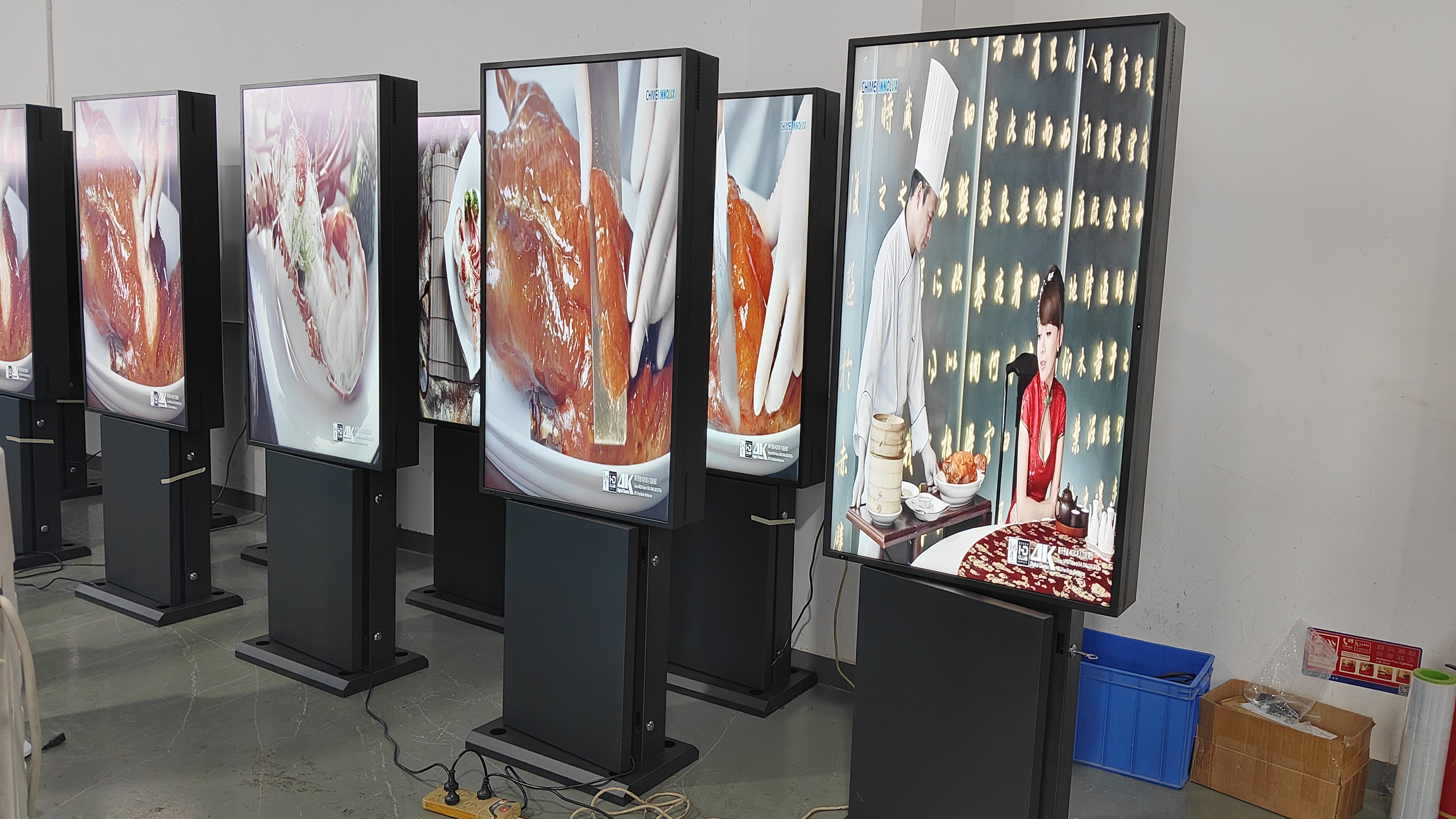

This configurable high-brightness outdoor kiosk is tailored for all kinds of high-traffic urban outdoor public commercial scenarios that require both stable display and flexible functional expansion. It is widely deployed in urban street-side advertising billboards, bus stops and transit shelter information release, shopping mall exterior and square brand promotion, urban public parks and civic plazas, stadiums and arena peripheral publicity, airport terminal public guidance and commercial advertising. Whether for fixed daily advertising loop playback or public interactive inquiry services, it can adapt to diverse outdoor marketing and public service demands with its multi-dimensional customizable performance and all-weather stable environmental adaptability.
| Versions=> | 1.Android WiFi Version | 2.Android WiFi Version+Nano Touch | 3.Windows WiFi | |
| System | CPU | RK3568(3399/3288/3566/3588) | RK3568(3399/3288/3566/3588) | intel i3-4th gen |
| RAM | 2GB(4/8GB) | 2GB(4/8GB) | 4GB DDR3 | |
| Internal memory | 32GB(64/128GB) | 32GB(64/128GB) | 128GB SSD | |
| Operation system | Android 11.1(8.0/10.0/12/13) | Android 11.1(8.0/10.0/12/13) | Win10pro (no license) | |
| Touch screen | w/o or nano Touch | nano Touch | w/o or nano Touch | |
| Display | Panel | IPS full view angle screen 178/178, LED backlight | ||
| Resolution | 1920*1080 FHD (optional 4K screen with extra $50/pcs) | |||
| Viewing angles | 178(H),178(V) | |||
| Contrast ratio | 3000 | |||
| Luminance | 2500cdm2(optional: 3000/3500/4000/4500nits brightness) | |||
| Aspect Ratio | ,16:9 | |||
| Network | WiFi | WiFi 802.11 | WiFi 802.11 | WiFi 802.11 |
| 3G/4G | \ | \ | \ | |
| Ethernet RJ45 | yes | yes | yes | |
| Buletooth | yes | yes | yes | |
| Interface | SD Card slot | yes | yes | no |
| USB port | yes | yes | yes | |
| WiFi port | yes | yes | yes | |
| RJ45 | yes | yes | yes | |
| on/off switch | yes | yes | yes | |
| Media play | Video format | MPEG-1,MPEG-2,MPEG-4,H.264,H.265,RV etc.,support up to 1080p | ||
| Photo | jpeg | |||
| Audio format | MP3/WMA/AAC etc. | |||
| Touch panel | optional | w/o | standard optional Nano multi touch panel (optional G+G touch add $195/pcs on base of Nano touch) | |
| Air Conditioner | w/o | |||
| Termpered glass | IK10 6mm termpered glass, high quality | |||
| Waterproof standard | IP65 Standard / IP66 Optional | |||
| Heating system | w/o, optional | |||
| AR glass | w/o, optional | |||
| Others | Power consumption | 168W | 198W | 238W |
| Speaker | 2*5W | 2*5W | 2*5W | |
| Temperature | -20 to 50degrees | -20 to 50degrees | -20 to 50degrees | |
| Language | Multi-language | Multi-language | English | |
| Adapter | Internal power board (AC100V-240V, 50/60Hz) | |||
| Accessories | AC cable, packing box, WiFi Antenna, ground base | |||
