AIYOS

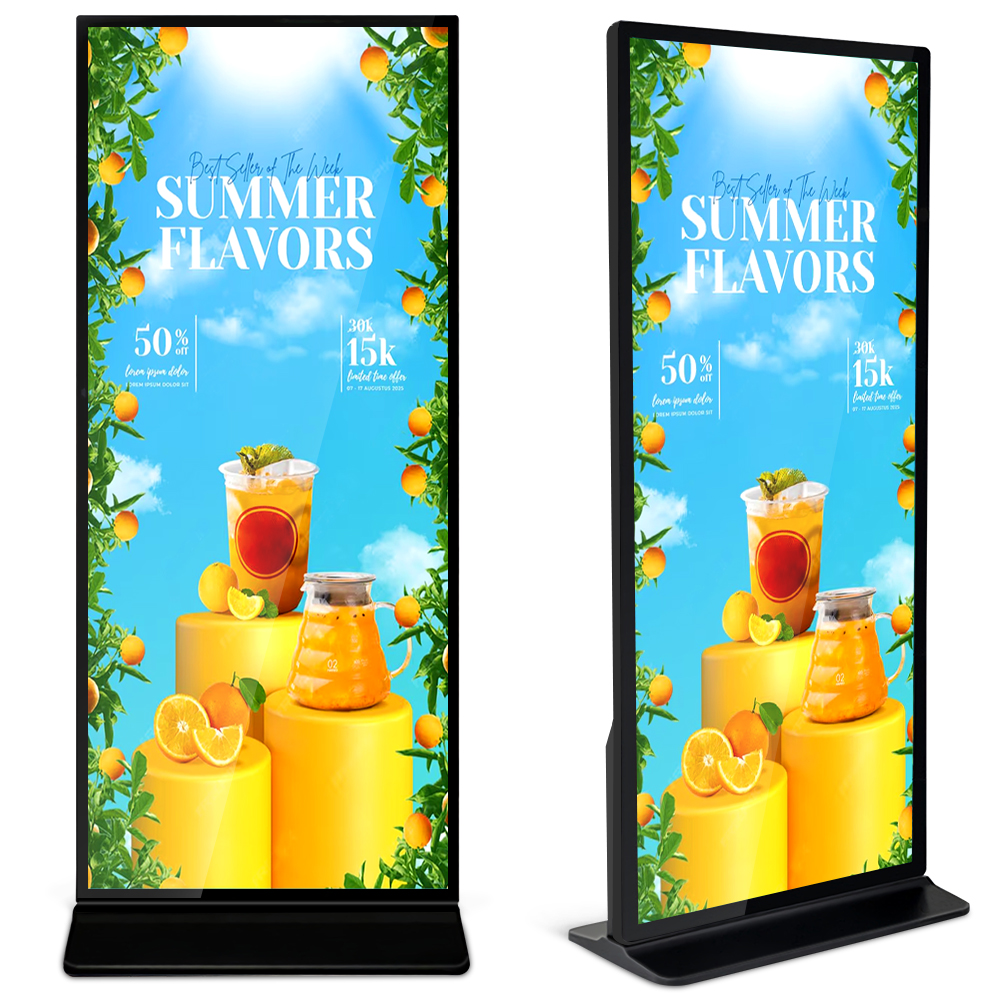

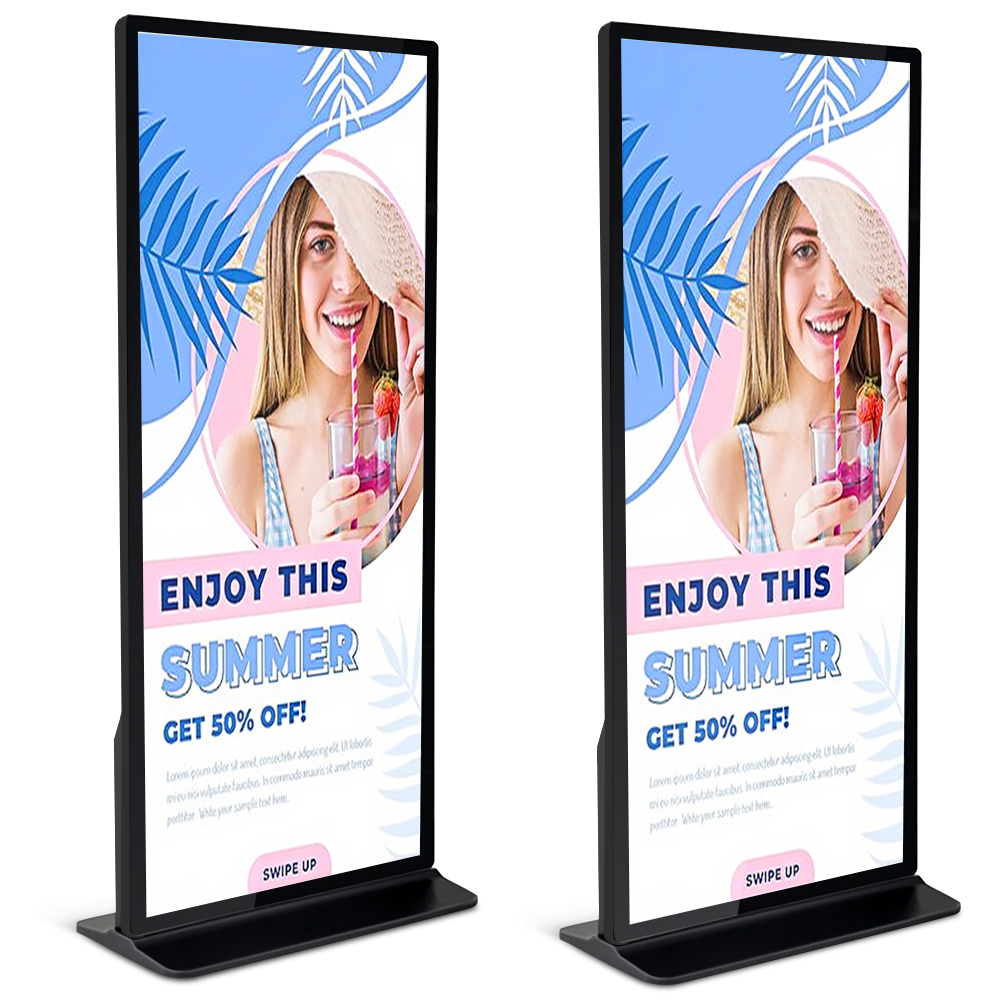

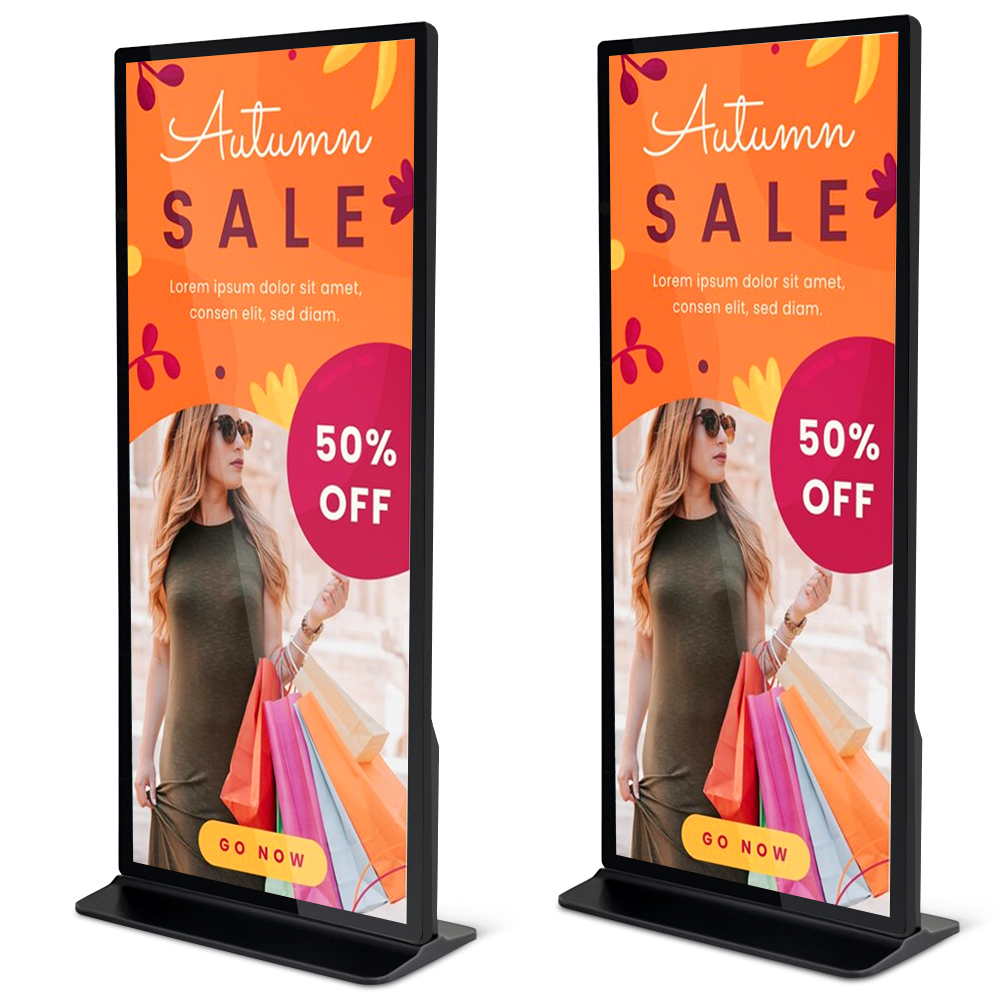

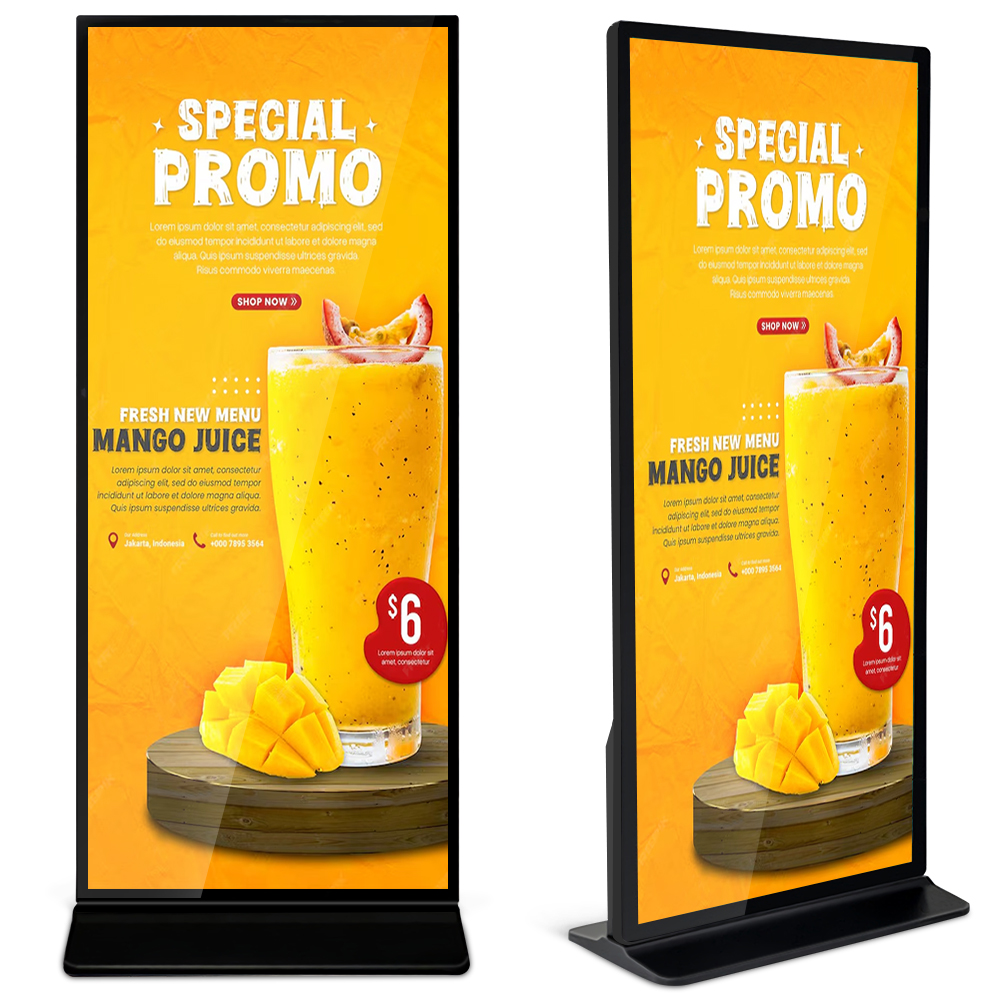

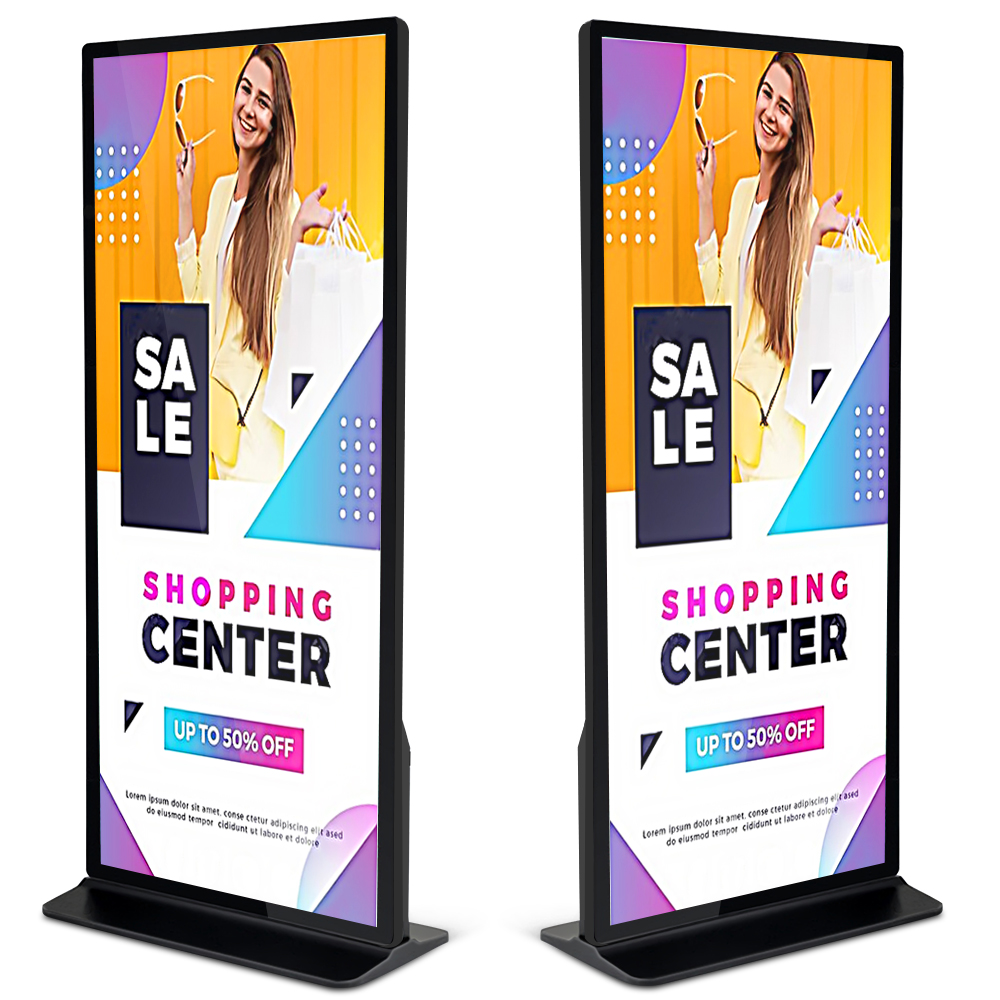

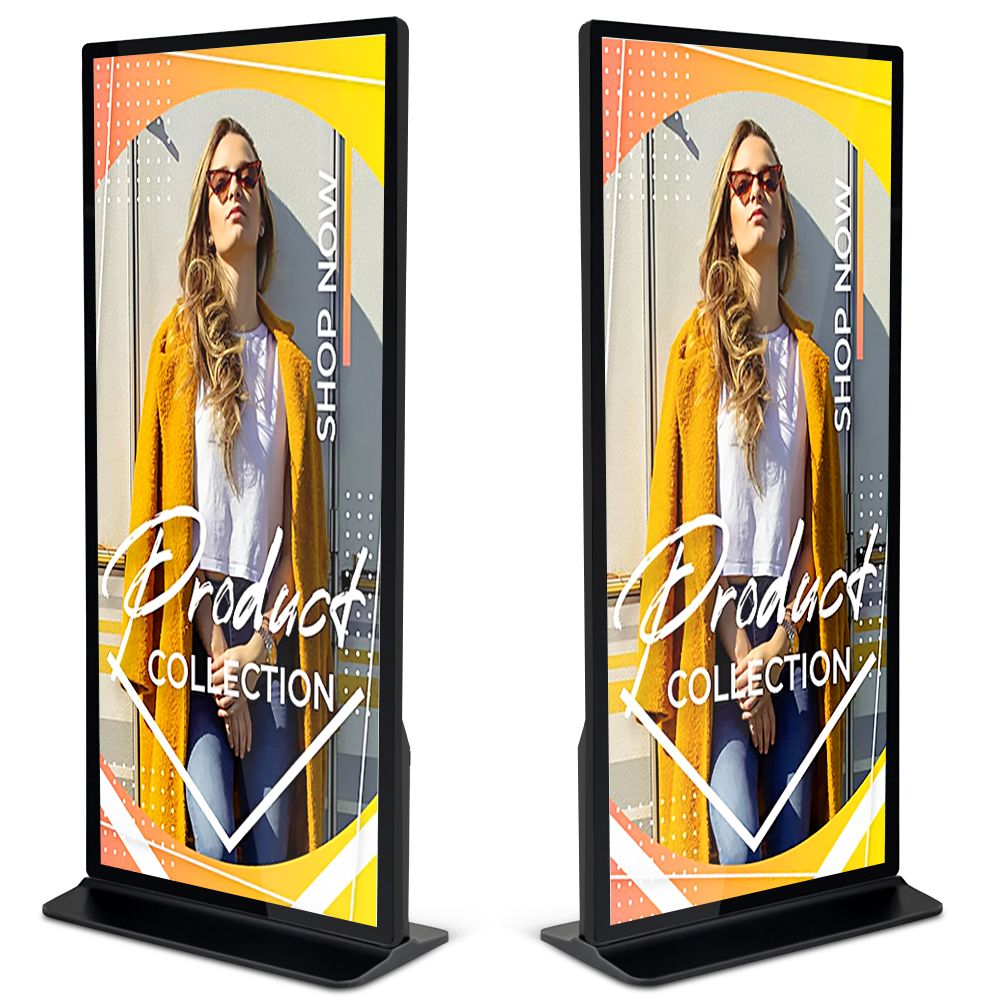

Edge-to-Edge Ultra-Narrow Bezel Immersive Display: Ditching traditional thick-border industrial screen design, this floor-standing kiosk adopts an ultra-narrow bezel full-screen molding process, maximizing screen occupancy to deliver a pure, borderless viewing experience. The sleek, minimalist body perfectly fits high-end indoor commercial decoration styles, eliminating visual frame interference and greatly enhancing advertising texture and visual impact. It stands out significantly in shopping malls, hotel lobbies and exhibition spaces, bringing audiences an immersive visual communication effect.
True 4K IPS High-Definition Visual Performance with Custom Brightness: Adopting professional 16:9 industrial IPS panel with native 3840×2160 4K UHD ultra-high resolution and 3000:1 ultra-high contrast ratio, the device presents layered, high-precision picture details with accurate color restoration. The 178° ultra-wide viewing angle ensures consistent vivid visuals from all horizontal and vertical directions without color shift or distortion. It adopts 500cd/㎡ standard indoor brightness, and supports up to 2500 nits high-brightness upgrade, freely adapting to dim lobby environments and bright window display scenarios.
Five-Tier Differentiated Configurations for Full-Scenario Coverage: This kiosk features a unique multi-version tiered configuration system, covering all usage needs from basic display to high-end interaction. The USB standalone version meets simple offline loop playback without system deployment; multiple Android WiFi versions support flexible memory and storage matching and long-term stable online operation; infrared and capacitive touch versions realize sensitive human-computer interaction; the Windows touch version delivers powerful computing performance for complex self-service programs and multi-task processing, fully matching different budget and functional demands.
Full-Featured Connectivity & Expandable Intelligent Functions: Equipped with comprehensive and upgraded connection modules, including dual-band 5G/2.4G WiFi, gigabit Ethernet, Bluetooth, bidirectional HDMI-IN/OUT, multi-channel USB ports and SD card slot, supporting multi-channel signal input and output, stable network linkage and offline resource expansion. Optional 4G module breaks wired network restrictions, while professional CMS software realizes intelligent remote content scheduling, batch management and real-time update, greatly improving operational efficiency.
Flexible Mobile Deployment & All-Round Practical Design: Different from fixed traditional kiosks, this product supports optional 4-wheel mobile base, enabling free position movement and flexible scene switching, perfectly adapting to temporary exhibitions, event promotions and dynamic venue layout adjustments. Built-in 2×5W high-fidelity stereo speakers realize synchronous audio and video playback, enriching scene atmosphere and interactive experience. The universal AC100-240V built-in power supply ensures stable long-term commercial operation with low failure rate.
Brand & Custom Service: AIYOS high-end indoor commercial display brand, supports full-process OEM / ODM personalized customization
Display Configuration: Industrial LCD IPS panel, 16:9 commercial standard aspect ratio, edge-to-edge ultra-narrow bezel design
Resolution & Vision: Native 4K UHD 3840×2160 ultra-high definition, 3000:1 high contrast ratio
Viewing Angle: 178° horizontal and 178° vertical full viewing angle, no viewing blind spots
Screen Brightness: Standard 500 cd/m² indoor brightness, optional upgrade up to 2500 nits high brightness
Full Configuration Versions: USB Standalone (Amlogic V59, no OS); Android WiFi multi-chip multi-parameter version; Android + IR touch; Android + Capacitive touch; Windows + dual touch optional version
Android Hardware: Optional RK3568/3576s/3399/3588 chips, 2GB–16GB RAM, 32GB–128GB storage, Android 11/12/13/14 multi-system adaptation
Windows Hardware: Intel 4th Gen i3 processor, 4GB DDR3 RAM, 128GB SSD, Win10 unactivated version
Network & Interface: 5G WiFi (Android) / 2.4G WiFi (Windows), 100/1000M gigabit Ethernet, Bluetooth, HDMI-IN/OUT, 1–4 configurable USB ports, SD card slot
Optional Accessories: 4G network module, 4-wheel mobile movable base, dedicated CMS management software
Audio System: Built-in 2×5W high-quality stereo speakers for synchronous audio-video playback
Power Supply: Built-in industrial power board, AC100-240V universal global voltage
Installation Method: Freestanding floor-standing design, optional mobile installation
This ultra-narrow bezel full-screen 4K floor-standing kiosk is tailored for high-aesthetic, high-grade indoor commercial and public service scenarios. It is widely deployed in shopping mall atriums and corridor brand promotion, retail store window immersive display, high-end hotel lobby image presentation and visitor guidance, exhibition and trade show booth interactive display, enterprise front desk reception image display, museum and art gallery cultural information inquiry, airport terminal public information release and restaurant intelligent publicity. With multi-configurable performance and flexible mobile deployment capability, it meets both high-end brand image display and daily intelligent self-service needs of various indoor commercial spaces.

| Versions: | 1.USB Standalone version | 2.Android WiFi Version | 3.Android WiFi+ Infrared Touch | 4.Android WiFi+ Capacitive Touch | 5.Windows WiFi+ IR/Capacitive Touch |
| CPU | Amlogic V59 | RK3568(3576s/3399/3588) | RK3568(3576s/3399/3588) | RK3568(3576s/3399/3588) | i3-4th gen |
| RAM | w/o | 2GB(4/8/16GB) | 2GB(4/8/16GB) | 2GB(4/8/16GB) | 4GB DDR3 |
| Internal memory | w/o | 32GB(64/128GB) | 32GB(64/128GB) | 32GB(64/128GB) | 128GB SSD |
| Digital signage CMS software | w/o | w/o,optional | w/o,optional | w/o,optional | optional |
| Operation system | w/o | Android 11 (or 12/13/14 ) | Android 11 (or 12/13/14 ) | Android 11 (or 12/13/14 ) | Win10(not activated) |
| Touch screen | w/o | w/o | IR Touch | Capacitive Touch | w/o or IR or capacitive |
| Display screen: | LCD 4K UHD IPS Module Screen 3840*2160pixels full view angle screen | ||||
| View angle: 178/178 IPS panel; Contrast ratio:3000; Brightness: 500cdm2; Ratio: 16:9 | |||||
| WiFi | w/o | 5G WIFI | 5G WIFI | 5G WIFI | 2.4G WIFI |
| 3G/4G | w/o | optional | optional | optional | optional |
| Ethernet RJ45 | w/o | yes | yes | yes | yes |
| Buletooth | w/o | yes | yes | yes | yes |
| HDMI | yes, inclue HDMI-IN | yes, inclue HDMI-IN | yes, inclue HDMI-IN | yes, inclue HDMI-IN | With HDMI-OUT |
| SD Card slot | w/o | yes | yes | yes | w/o |
| USB port | yes, 1xUSB | yes, 2xUSB | yes, 2xUSB | yes, 2xUSB | yes, 4xUSB |
| WiFi port | w/o | yes | yes | yes | yes |
| RJ45 | w/o | yes | yes | yes | yes |
| on/off switch | yes | yes | yes | yes | yes |
| Video format | MPEG-1,MPEG-2,MPEG-4,H.264,H.265,RV etc.,support up to 1080p | ||||
| Audio format | MP3/WMA/AAC etc. | ||||
| Photo | jpeg, etc. | ||||
| 4-wheels on ground base | optional | optional | optional | optional | optional |
| Speaker | 2*5W | 2*5W | 2*5W | 2*5W | 2*5W |
| Front Camera | w/o | w/o | w/o | w/o | w/o |
| Language | Multi-language | Multi-language | Multi-language | Multi-language | English |
| Adapter | Internal power board (AC100-240V) | ||||
