AIYOS

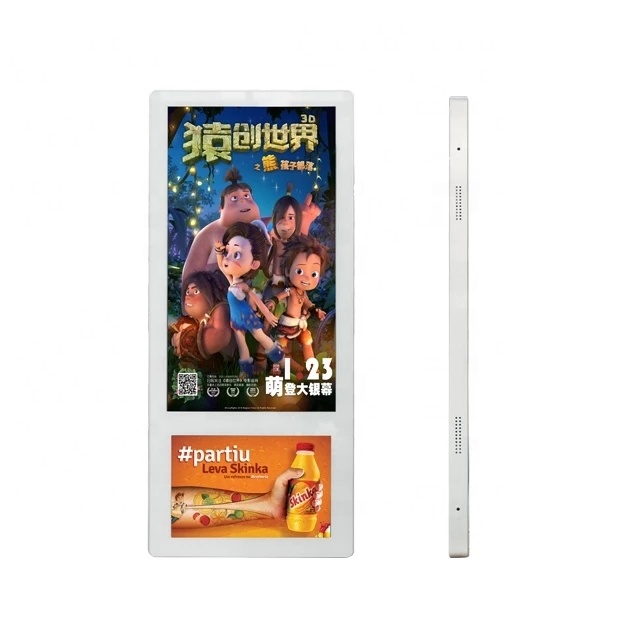

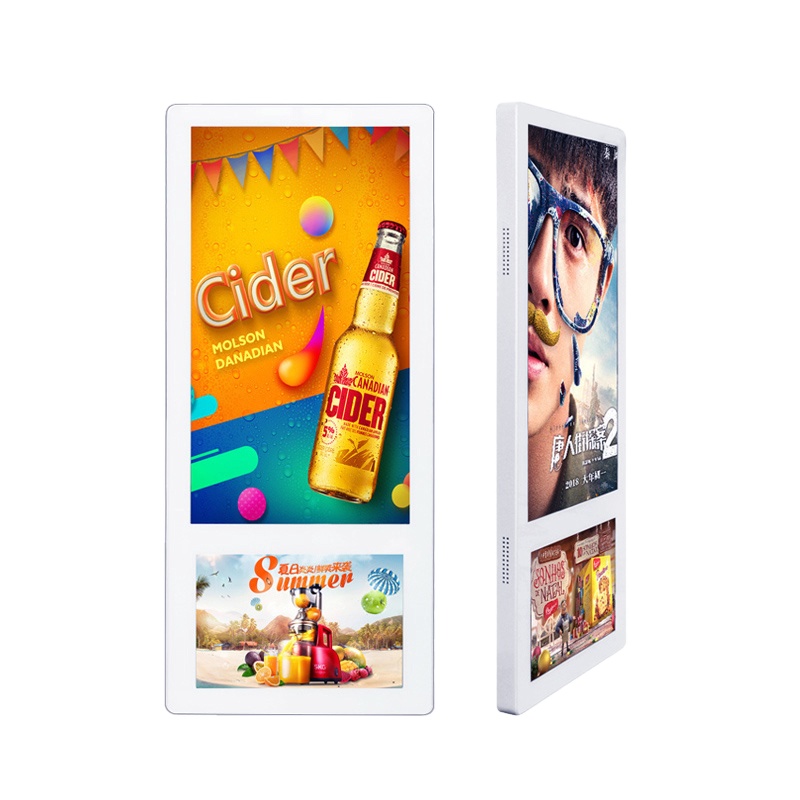

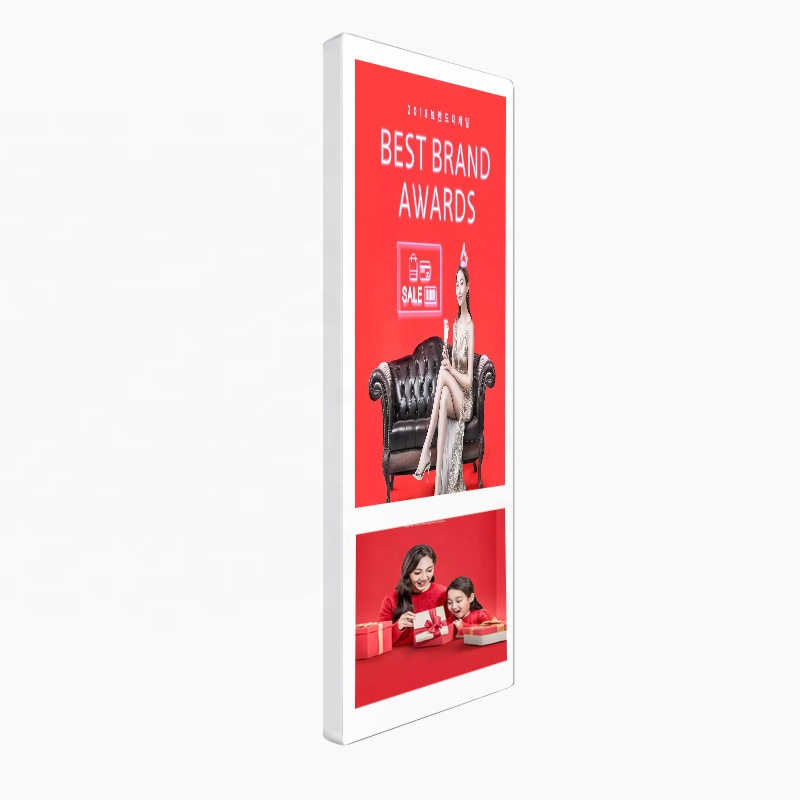

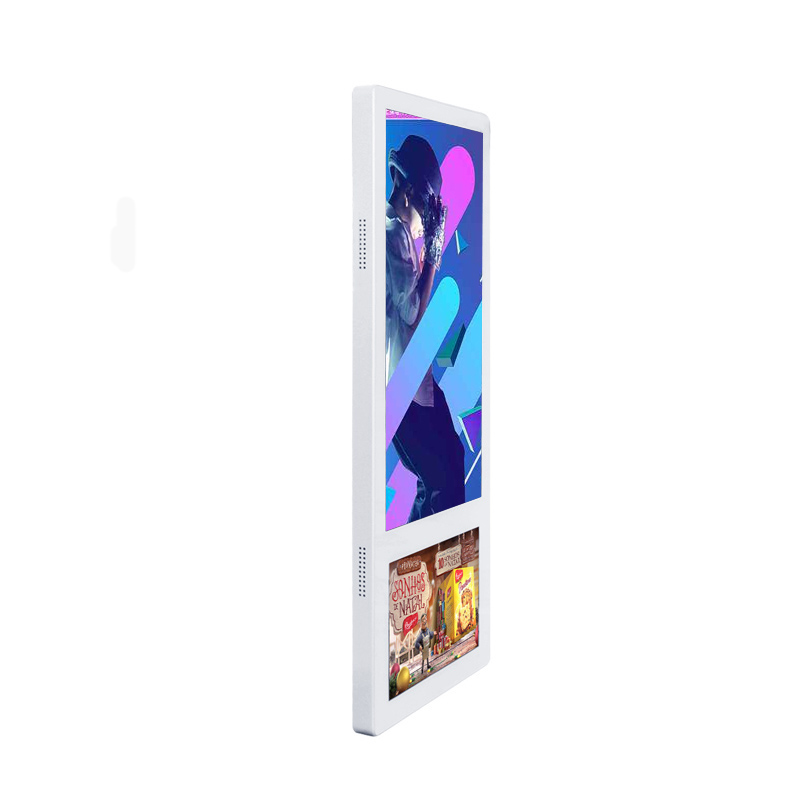

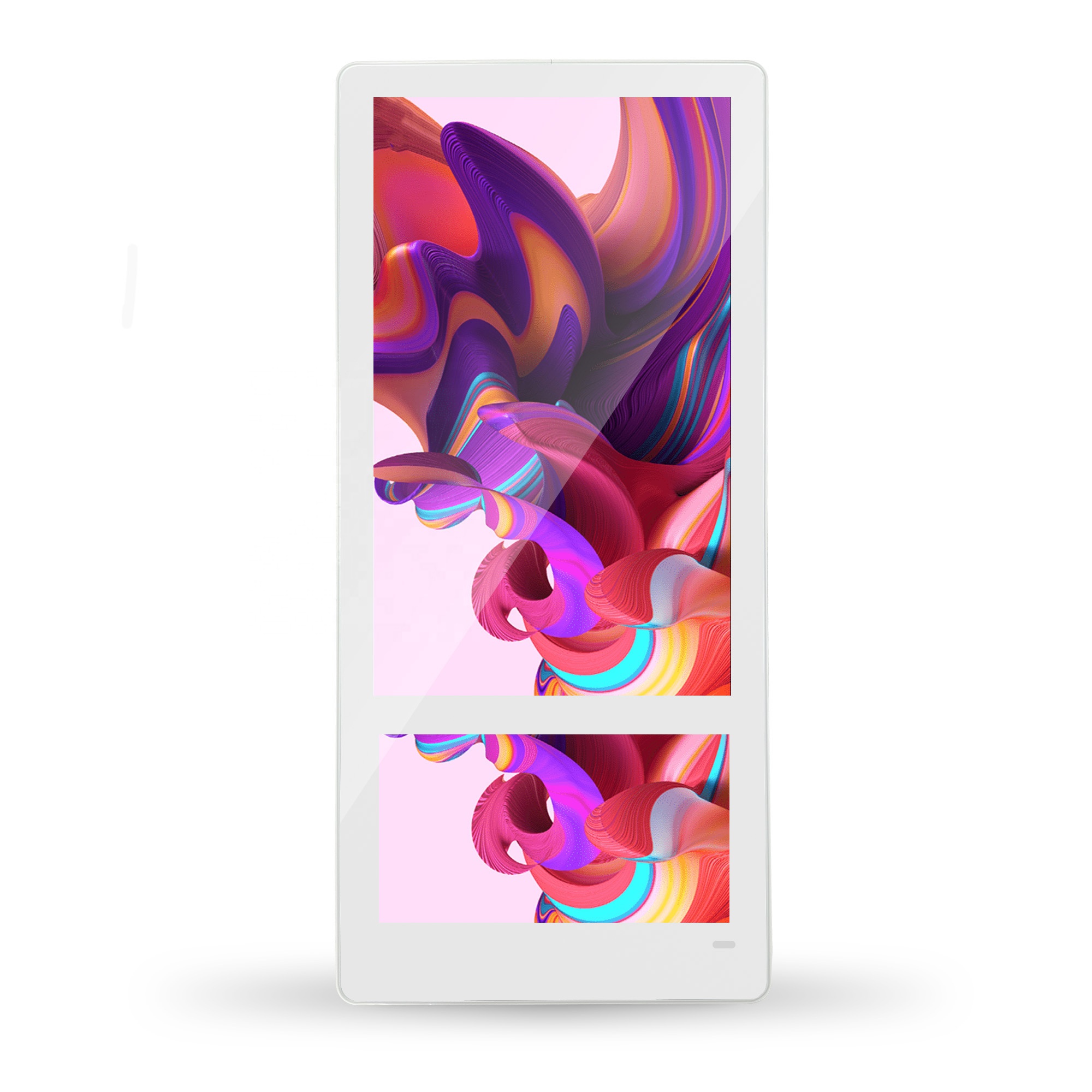

Custom Dual-Screen Integrated Structure for Exclusive Elevator Scenarios: Different from ordinary single-screen commercial signage, this product features an innovative integrated primary and secondary dual-screen design, specially engineered for the narrow and compact space of elevator cabins. The combined dual-screen layout makes full use of elevator vertical wall space, doubling advertising display area and visual exposure without occupying extra cabin space. The integrated all-in-one structure realizes one-piece installation with neat and concise appearance, perfectly fitting the decoration style of modern commercial buildings, hotels and high-rise residences, greatly improving the coverage and penetration rate of elevator advertising.
Three Matching Size Combinations for Full Elevator Spatial Adaptation: To adapt to different elevator cabin specifications and space sizes, the product provides three mature and exclusive dual-size collocation solutions. The 18.5-inch + 10.1-inch compact combination is suitable for small residential elevators; the 21.5-inch + 11.6-inch mainstream combination fits most commercial building passenger elevators; the 27-inch + 15.6-inch large-size combination meets the wide-space display demand of shopping mall and hospital large elevators. Multiple resolution matching ensures clear and delicate picture output of each screen, realizing synchronous and coordinated dual-screen display effects.
High-Definition IPS Panoramic Display for Stable Cabin Visual Effects: Adopting industrial-grade LCD IPS full-view panels with 16:9 mainstream commercial aspect ratio and LED backlight, the device delivers 3000:1 high contrast ratio and 350cd/㎡ standardized indoor brightness, effectively restoring rich color layers and clear text details. The 89° symmetrical horizontal and vertical viewing angles eliminate viewing dead zones in narrow elevator cabins, ensuring passengers can clearly view advertising content from all standing positions. Optimized for short-distance viewing in confined spaces, the picture is delicate and not dazzling, bringing comfortable visual experience.
Five-Tier Full-Coverage Versions for Differentiated Deployment: The product builds a complete version matrix for elevator advertising scenarios, fully covering low-cost basic playback to high-end interactive touch scenarios. The Mstar V56 USB basic version supports plug-and-play offline loop playback, suitable for simple fixed advertising release; the PX30 quad-core Android WiFi version realizes remote online content update and stable network operation, with optional infrared and capacitive dual touch functions to expand interactive display capabilities; the Windows WiFi version supports complex program operation and multi-task processing, meeting personalized intelligent display demands of high-end business scenarios.
Powerful Multimedia Decoding & Flexible Network Expansion: Built with professional multimedia decoding chips, it supports full-format audio and video decoding including MPEG series, H.264, H.265 and RV, maxing out 1080P high-definition video playback, with compatible MP3/WMA/AAC multi-format audio playback. In terms of networking, it comes with built-in WiFi and Bluetooth, and reserves optional wired Ethernet and 3G/4G module expansion, realizing diversified content management methods such as remote batch release, offline local playback and mobile network real-time update, reducing daily operation and maintenance costs.
Brand & Custom Service: AIYOS professional elevator dedicated display manufacturer, supports full-process OEM / ODM personalized customization
Dual-Screen Size & Resolution Combinations: 18.5"(1366×768) + 10.1"(1280×800); 21.5"(1920×1080) + 11.6"(1920×1080); 27"(1920×1080) + 15.6"(1920×1080)
Panel Parameter: Industrial LCD IPS full-view panel, 16:9 commercial aspect ratio, LED backlight
Display Performance: 350 cd/㎡ standard brightness, 3000:1 high industrial contrast ratio
Viewing Angle: 89° horizontal / 89° vertical professional viewing angle for narrow cabin scenarios
Full Configuration Versions: USB basic playback (Mstar V56); Android WiFi (PX30 quad-core, RK3288 optional); Android WiFi + IR Touch; Android WiFi + Capacitive Touch; Windows WiFi
Android Hardware: 1GB RAM + 8GB storage, pre-installed Android 8.1 stable system
Network Connectivity: Built-in WiFi 802.11 & Bluetooth, optional Ethernet RJ45 and 3G/4G module, equipped with USB ports and SD card slot
Audio Decoding: Supports MP3, WMA, AAC and other mainstream audio formats
Video Decoding: Compatible with MPEG-1/2/4, H.264, H.265, RV formats, maximum 1080P HD playback

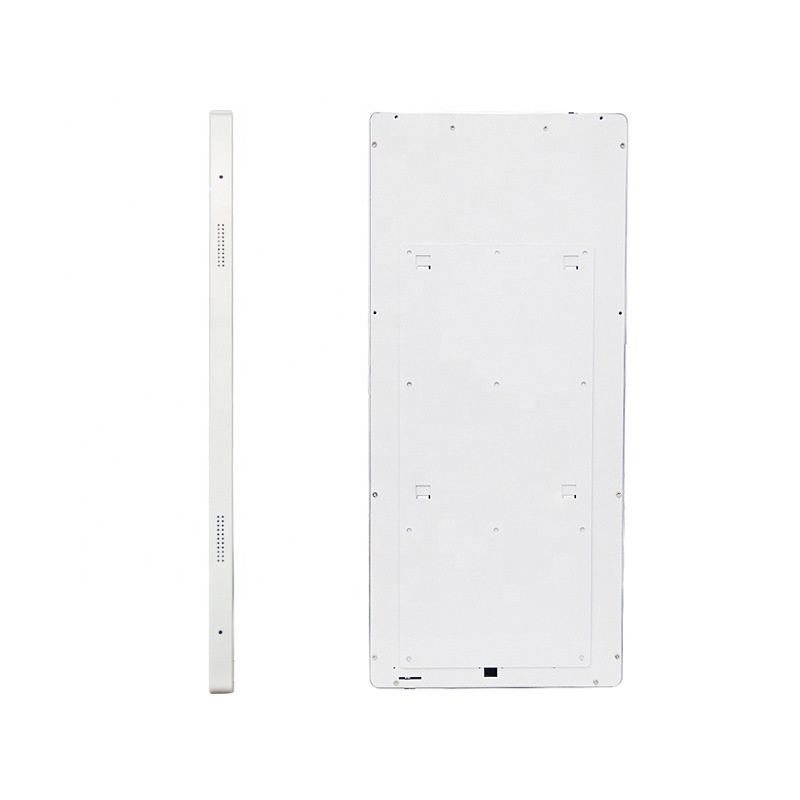

Installation Method: Integrated wall-mounted installation, dedicated for elevator cabin embedding
This integrated dual-screen elevator dedicated digital signage is professionally designed for short-time captive audience advertising in confined vertical transportation spaces. It is widely deployed in elevator cabins of commercial office buildings, high-star hotel guest rooms and public areas, high-rise residential communities, shopping mall passenger and cargo elevators, as well as hospital medical elevators. Relying on dual-screen synchronous display advantage and multi-version flexible configuration, it realizes brand promotion, community notice release, commercial advertising operation and public information notification, becoming a high-efficiency, low-cost and high-coverage intelligent advertising carrier for various building indoor elevator scenarios.
