AIYOS/OEM/ODM
Ultra-Portable & Slim Lightweight Design: Featuring an ultra-thin 14.5mm left/right bezel and 18mm upper/lower bezel, paired with a high-strength ABS housing, the entire device weighs merely 2.65kg. It abandons the bulky structure of traditional floor-standing kiosks and outdoor billboards, enabling effortless manual handling and flexible placement without professional installation tools.
Wireless Battery-Powered Operation: Equipped with optional 10,000mAh, 20,000mAh and 40,000mAh built-in rechargeable batteries, the display supports hours of stable untethered working. It perfectly adapts to spaces without fixed power outlets, eliminating wiring renovation costs and site restrictions, ideal for temporary and mobile usage.
Commercial-Grade Interactive & Visual Performance: Adopting industrial PCAP G+G 10-point capacitive touch technology, it provides smooth, smartphone-like sensitive interactive experience with durable touch response for long-term commercial use. The IPS FHD 1920×1080 resolution screen (4K UHD optional) delivers 300 nits standard indoor brightness and 178° full viewing angle, ensuring clear, distortion-free visuals from all directions.
Flexible Mounting & Strong Compatibility: Standard 100×100mm VESA wall mounting interface supports diverse installation methods, including wall mounting, countertop placement and tabletop installation, with optional table stands and floor stands for customization. Multiple Android system versions (8.1/11.0/13.0/14.0) are optional, matching WiFi-6, Bluetooth, Ethernet and optional 4G network modules for diverse intelligent connection demands.
Complete Audio & Customization Support: Built-in 2×3W stereo speakers restore clear sound quality for video playback and interactive broadcasting. Professional OEM/ODM customization services are provided to adjust configurations, appearance and functions according to customer project needs.
Brand & Service Mode: AIYOS, supports OEM / ODM customized services
Screen Parameters: 23.8-inch display, standard FHD 1920×1080 resolution, optional 4K UHD high-definition version, 300 nits standard indoor brightness, 178° ultra-wide viewing angle IPS panel
Touch Technology: Commercial-grade PCAP G+G capacitive 10-point multi-touch, sensitive and durable interactive performance

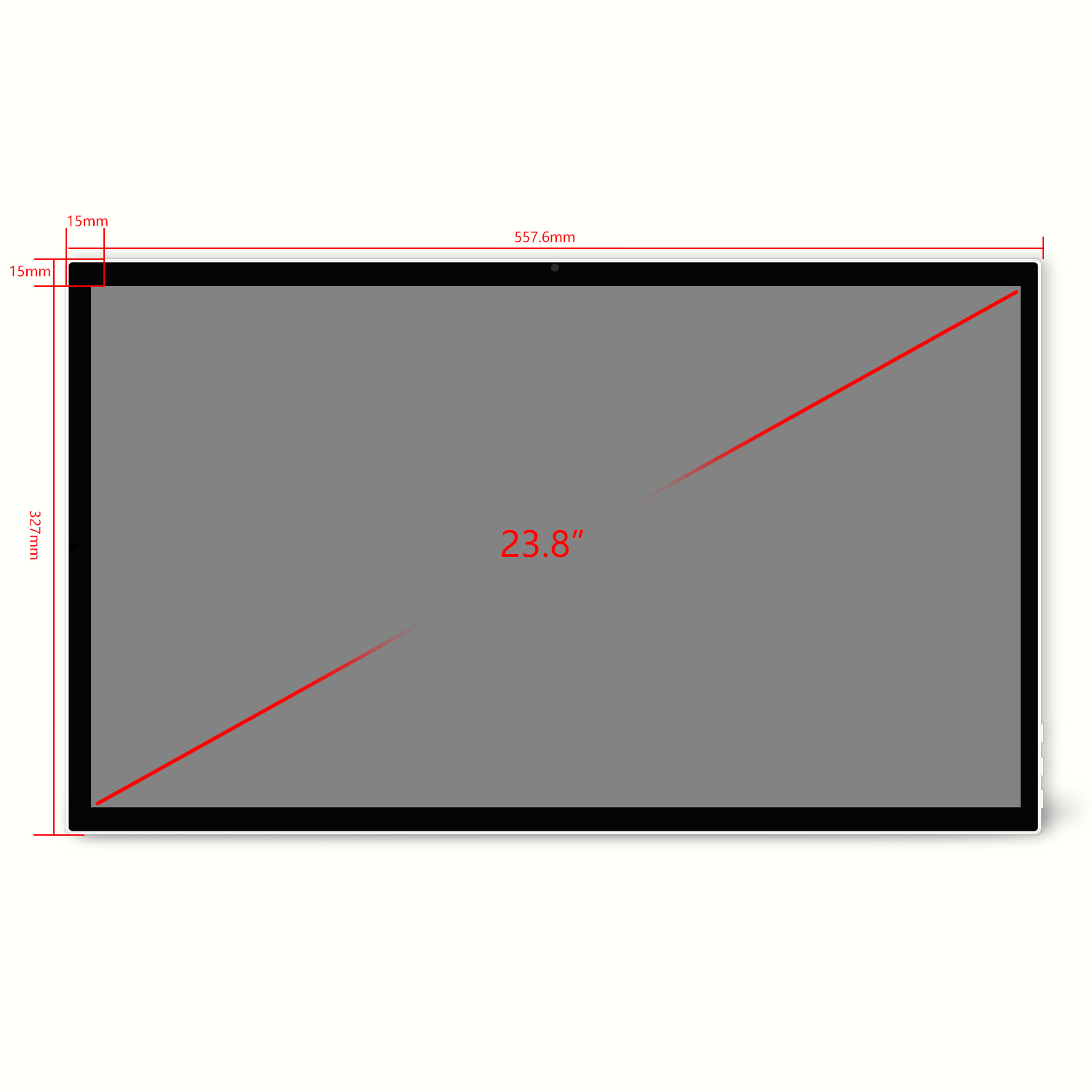

Body Structure: Ultra-narrow bezel design (14.99mm), 14.5mm (L/R) + 18mm (U/D) ultra-thin body, high-quality ABS housing, net weight 2.65kg
Mounting Method: Standard 100×100mm VESA wall mount, optional table stand and floor stand
Battery Configuration: Optional built-in rechargeable batteries: 10,000mAh / 20,000mAh / 40,000mAh
System & Network: Optional Android 8.1 / 11.0 / 13.0 / 14.0 systems, equipped with WiFi-6, Bluetooth, Ethernet, optional 4G network module
Audio System: Built-in 2×3W high-fidelity stereo speakers
This portable battery-powered interactive display is widely applicable to all kinds of indoor commercial scenarios requiring temporary placement, wireless use and intelligent interaction, covering retail store window display, hotel front desk reception, enterprise lobby intelligent display, exhibition booth & pop-up event promotion, conference room interactive demonstration, restaurant electronic menu display and other scenarios. It is the ideal lightweight interactive signage solution for businesses pursuing flexible layout, zero wiring and efficient commercial display marketing.
| Version(1) Media Player, basic level | SoC/CPU | Allwinner F133 | ||||||||||||||
| RAM | w/o, optional | |||||||||||||||
| Internal memory | w/o, optional 4GB/8GB/16GB/32GB | |||||||||||||||
| Internal speaker | yes, 2x3W speakers | |||||||||||||||
| Operation System | media player, support auto play video(loop play), support set-time on/off | |||||||||||||||
| HDMI | W/O, If add HDMI-IN will add $5.5/pcs | |||||||||||||||
| USB port | 1xUSB | |||||||||||||||
| RJ45 | w/o, optional | |||||||||||||||
| Remote control | yes, with 21 buttons remote control | |||||||||||||||
| Touch panel | w/o, optional | |||||||||||||||
| Version(2) Touch monitor, basic level | SoC/CPU | Monitor board | ||||||||||||||
| RAM | w/o, optional | |||||||||||||||
| Internal memory | w/o, optional | |||||||||||||||
| GPU | w/o, optional | |||||||||||||||
| Internal speaker | yes, 2x3W speakers | |||||||||||||||
| NPU | w/o, optional | |||||||||||||||
| System management | w/o, optional | |||||||||||||||
| Operation System | media player, support auto play video(loop play), support set-time on/off | |||||||||||||||
| HDMI | yes, HDMI-IN | |||||||||||||||
| USB port | 1xUSB-A for touch panel | |||||||||||||||
| RJ45 | w/o, optional | |||||||||||||||
| Touch panel | With PCAP G+G multi-touch(commercial level) PS: if w/o touch panel will -$18/pcs | |||||||||||||||
| Version(3) Android Entry Level | SoC/CPU | Allwinner PX30, 1.2GHz, 4-core, 28nm | ||||||||||||||
| RAM | 1GB | |||||||||||||||
| Internal memory | 8GB | |||||||||||||||
| Internal speaker | yes, 2x3W speakers | |||||||||||||||
| System management | w/o, optional CMS | |||||||||||||||
| Operation System | Android 8.1, support auto play video(loop play) | |||||||||||||||
| WiFi | yes, with WiFi-2.4GHz | |||||||||||||||
| 3G/4G SIM module | Without, optional 4G add $50 | |||||||||||||||
| Buletooth | yes | |||||||||||||||
| MicroSD Card slot | yes | |||||||||||||||
| DC port | DC port 5.5/2.1 | |||||||||||||||
| Earphone | 3.5mm earphone | |||||||||||||||
| Uboot hole | yes | |||||||||||||||
| On/Off switch | yes | |||||||||||||||
| Video format | MPEG1/MPEG2/MPEG4, .mpg,.avi, format,Support Full H.264 | |||||||||||||||
| Audio format | MP3/WMA/AAC etc. | |||||||||||||||
| Video format | MPEG1/MPEG2/MPEG4, .mpg,.avi, format,Support Full H.264 | |||||||||||||||
| Audio format | MP3/WMA/AAC etc. | |||||||||||||||
| Photo | jpeg,etc. | |||||||||||||||
| USB port | 2xUSB-A | |||||||||||||||
| RJ45 | yes, 10/100M | |||||||||||||||
| Touch panel | With PCAP G+G multi-touch(commercial level) PS: if w/o touch panel will -$18/pcs | |||||||||||||||
| Version(4) Android Medium Level | SoC/CPU | RK3566, 1.8GHz, 4-core, 8nm | ||||||||||||||
| RAM | 2GB (optional 4GB/8GB) | |||||||||||||||
| Internal memory | 32GB (optional 64GB/128GB) | |||||||||||||||
| GPU | ARM Mali-G52 2EE, OpenGL ES 1.1/2.0/3.2, Vulkan 1.1; OpenCL 2.0;Embedded 2D accelerator | |||||||||||||||
| NPU | With 1TOPS | |||||||||||||||
| System management | Support OTA, USB flash drive reflash, SD card reflash | |||||||||||||||
| Operation System | Android 11.0/13.0 | |||||||||||||||
| Internal speaker | yes, 2x3W speakers | |||||||||||||||
| WiFi | yes, with WiFi-6 | |||||||||||||||
| 3G/4G SIM module | Without, optional 4G add $50 | |||||||||||||||
| Ethernet/RJ45 | 100M/1000M Ethernet | |||||||||||||||
| Buletooth | yes | |||||||||||||||
| MicroSD Card slot | yes | |||||||||||||||
| DC port | DC port 5.5/2.1 | |||||||||||||||
| Earphone | 3.5mm earphone | |||||||||||||||
| Uboot hole | yes | |||||||||||||||
| On/Off switch | yes | |||||||||||||||
| Video format | MPEG1/MPEG2/MPEG4, .mpg,.avi, format,Support Full H.264 | |||||||||||||||
| Audio format | MP3/WMA/AAC etc. | |||||||||||||||
| Video format | MPEG1/MPEG2/MPEG4, .mpg,.avi, format,Support Full H.264 | |||||||||||||||
| Audio format | MP3/WMA/AAC etc. | |||||||||||||||
| Photo | jpeg,etc. | |||||||||||||||
| HDMI | yes, with HDMI-OUT (include HDMI license) | |||||||||||||||
| USB port | 2xUSB-A | |||||||||||||||
| Touch panel | With PCAP G+G multi-touch(commercial level) PS: if w/o touch panel will -$18/pcs | |||||||||||||||
| Version(5) Android High Level | SoC/CPU | RK3576s, 2.1GHz, 8-core, 8nm | ||||||||||||||
| RAM | 4GB (optional 8GB/16GB) | |||||||||||||||
| Internal memory | 32GB (optional 64GB/128GB) | |||||||||||||||
| GPU | 8-core Mali-G52 MC3 | |||||||||||||||
| NPU | With 3Tops | |||||||||||||||
| System management | Support OTA, USB flash drive reflash, SD card reflash | |||||||||||||||
| Operation System | Android 14.0 | |||||||||||||||
| HDMI | yes, with HDMI-IN (include HDMI license) | |||||||||||||||
| WiFi | yes, with WiFi-6 | |||||||||||||||
| 3G/4G SIM module | Without, optional 4G add $50 | |||||||||||||||
| Ethernet | 100M/1000M Ethernet | |||||||||||||||
| Buletooth | yes | |||||||||||||||
| MicroSD Card slot | yes | |||||||||||||||
| DC port | DC port 5.5/2.1 | |||||||||||||||
| Earphone | 3.5mm earphone | |||||||||||||||
| Uboot hole | yes | |||||||||||||||
| On/Off switch | yes | |||||||||||||||
| Video format | MPEG1/MPEG2/MPEG4, .mpg,.avi, format,Support Full H.264 | |||||||||||||||
| Audio format | MP3/WMA/AAC etc. | |||||||||||||||
| Video format | MPEG1/MPEG2/MPEG4, .mpg,.avi, format,Support Full H.264 | |||||||||||||||
| Audio format | MP3/WMA/AAC etc. | |||||||||||||||
| Photo | jpeg, etc. | |||||||||||||||
| USB port | 2xUSB | |||||||||||||||
| RJ45 | yes, 100/1000M | |||||||||||||||
| Touch panel | With PCAP G+G multi-touch(commercial level) PS: if w/o touch panel will -$18/pcs | |||||||||||||||
| Version(6) Android Ultra Level | SoC/CPU | RK3588, 2.2GHz, 8-core(4xA76+4xA55), 8nm | ||||||||||||||
| RAM | 8GB | |||||||||||||||
| Internal memory | 128GB | |||||||||||||||
| GPU | 8-core 4xA76+4xA55 | |||||||||||||||
| NPU | With 6Tops | |||||||||||||||
| System management | Support OTA, USB flash drive reflash | |||||||||||||||
| Operation System | Android 13.0 | |||||||||||||||
| HDMI | yes, with HDMI-IN (include HDMI license) | |||||||||||||||
| WiFi | yes, with WiFi-6 | |||||||||||||||
| 3G/4G SIM module | Without, optional 4G add $50 | |||||||||||||||
| Ethernet | 100M/1000M Ethernet | |||||||||||||||
| Buletooth | yes | |||||||||||||||
| MicroSD Card slot | yes | |||||||||||||||
| HDMI | yes, with HDMI-IN (include HDMI license) | |||||||||||||||
| DC port | DC port 5.5/2.1 | |||||||||||||||
| USB port | 2xUSB + 1xtype-C | |||||||||||||||
| Earphone | 3.5mm earphone | |||||||||||||||
| Uboot hole | yes | |||||||||||||||
| On/Off switch | yes | |||||||||||||||
| Video format | MPEG1/MPEG2/MPEG4, .mpg,.avi, format,Support Full H.264 | |||||||||||||||
| Audio format | MP3/WMA/AAC etc. | |||||||||||||||
| Video format | MPEG1/MPEG2/MPEG4, .mpg,.avi, format,Support Full H.264 | |||||||||||||||
| Audio format | MP3/WMA/AAC etc. | |||||||||||||||
| Photo | jpeg, etc. | |||||||||||||||
| RJ45 | yes, 100/1000M | |||||||||||||||
| Touch panel | With PCAP G+G multi-touch(commercial level) PS: if w/o touch panel will -$18/pcs | |||||||||||||||
| Display | Panel | 24" IPS FHD screen 1920*1080pixels (full view angle 178/178 degrees) | ||||||||||||||
| Resolution | 1920*1080 | |||||||||||||||
| Contrast ratio | 1200:1 | |||||||||||||||
| Luminance | 300nits | |||||||||||||||
| Aspect Ratio | ,16:9 | |||||||||||||||
| Material | housing material | New Ultra-Thin(14.5MM L/R +18mm U/D), narrow boarder(14.99mm) and Light Weight ABS housing(2.65kg only) | ||||||||||||||
| Others | mouse | Supported by USB port | ||||||||||||||
| keyboard | Supported by USB port | |||||||||||||||
| VESA for wall mount | yes, VESA 100mm*100mm for wall mounting | |||||||||||||||
| Speaker | yes, 2*3W | |||||||||||||||
| Language | Multi-language(English, French, German, Italian, etc) | |||||||||||||||
| Application | Facebook/Twitter/Youtube/E-mail/google map etc | |||||||||||||||
| Other optionals | Wall mount bracket | without, optional | ||||||||||||||
| 4G SIM cellular module | without, optional 4G | |||||||||||||||
| 4K UHD screen | without, optional with 3840x2160pixels IPS 250nits brightness(only available for version 5 and 6) | |||||||||||||||
| POE power supply(thin design) | without, optional POE power supply | |||||||||||||||
| Internal Microphone (MIC) | without, optional | |||||||||||||||
| CMS cloud software | without, optional | |||||||||||||||
| Battery on floor stand | without, optional internal battery: 10,000mAh /20,000mAh /40,000mAh; | |||||||||||||||
| NFC | without, optional NFC function | |||||||||||||||
| Table stand | without, optional table stand | |||||||||||||||
| Internal Camera | without, optional 5.0MP | |||||||||||||||
| APP for wireless screen mirroring + APP for hand write magic whiteboard | without, optional | |||||||||||||||
| Metal Floor stand (rotable 360°,up/down 30cm) | without, optionall | |||||||||||||||
| Accessories | Adapter | Adapter, with DC 12V3A certified | ||||||||||||||
| Packing box with foam | yes | |||||||||||||||
| Manual | yes | |||||||||||||||
| Wall mounting bracket | without, optional | |||||||||||||||
| Table stand | without, optional | |||||||||||||||
