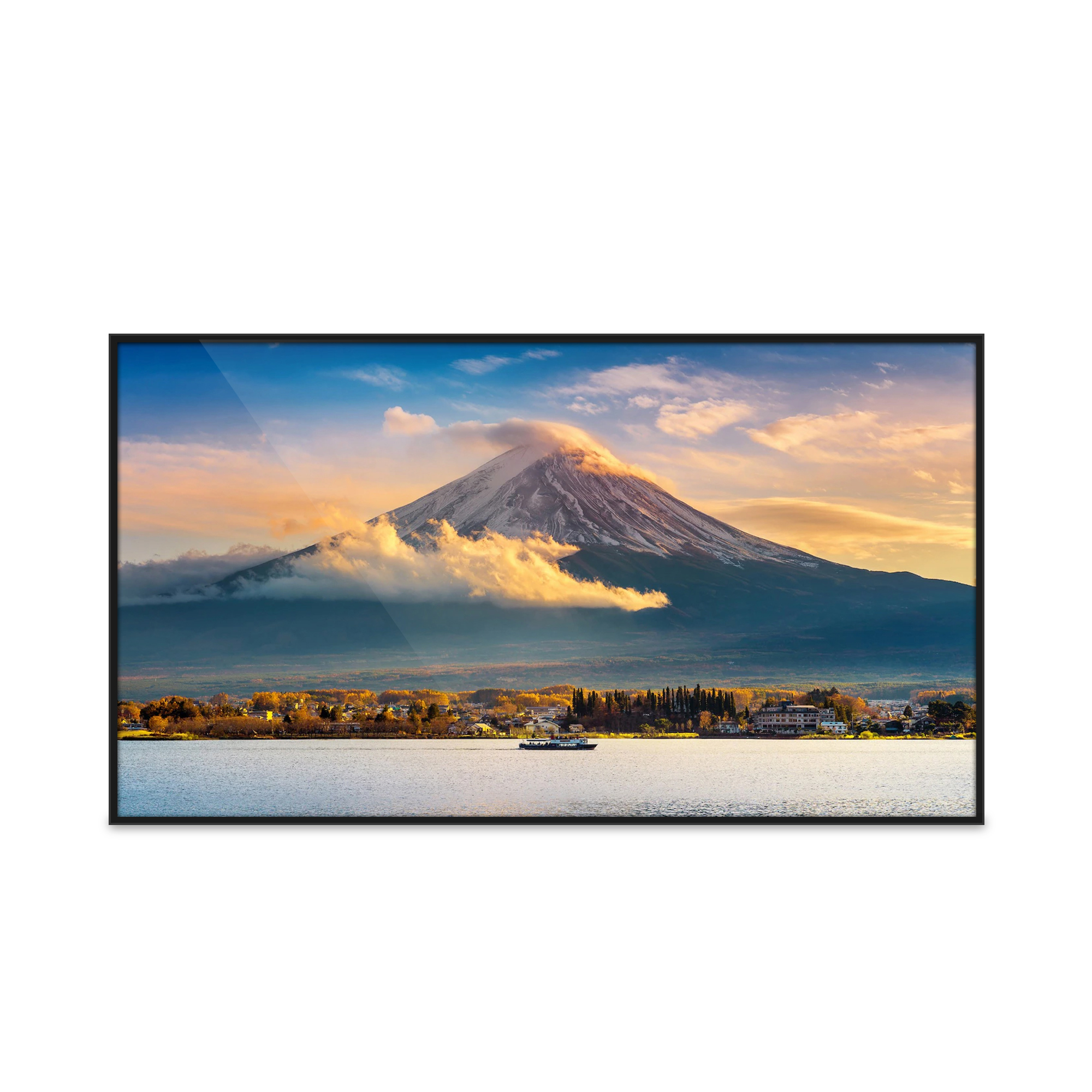

MiniLED Local Dimming High Brightness Digital Signage Display

Core Product Advantages

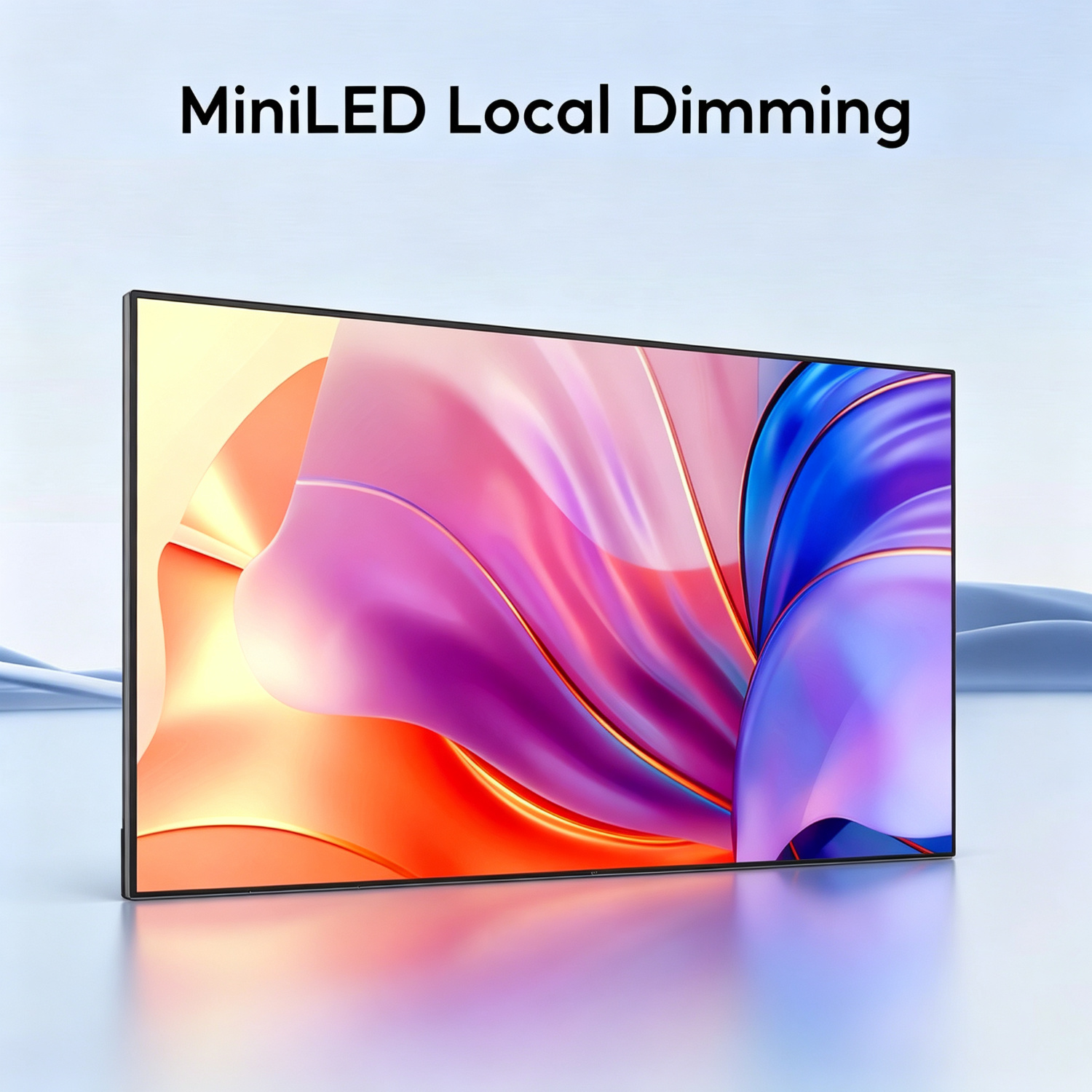

• MiniLED Local Dimming Technology :MiniLED dynamic local dimming delivers deeper blacks, brighter highlights and enhanced contrast for premium commercial visuals.

• High Brightness Display : High-brightness configurations up to 1000–1200 nits provide clear and vivid content in bright indoor commercial environments.

• Ultra-High Dynamic Contrast : Local dimming enables up to 1,000,000:1 dynamic contrast for stronger image depth, detail and visual impact.

• IPS 178° Wide Viewing Angle : IPS panel with 178° wide viewing angle keeps content clear and consistent from different viewing positions.

• 43–85 Inch Multi-Size Options :  Available in 43", 49", 55", 65", 75" and 85" sizes for different commercial spaces and installation requirements.

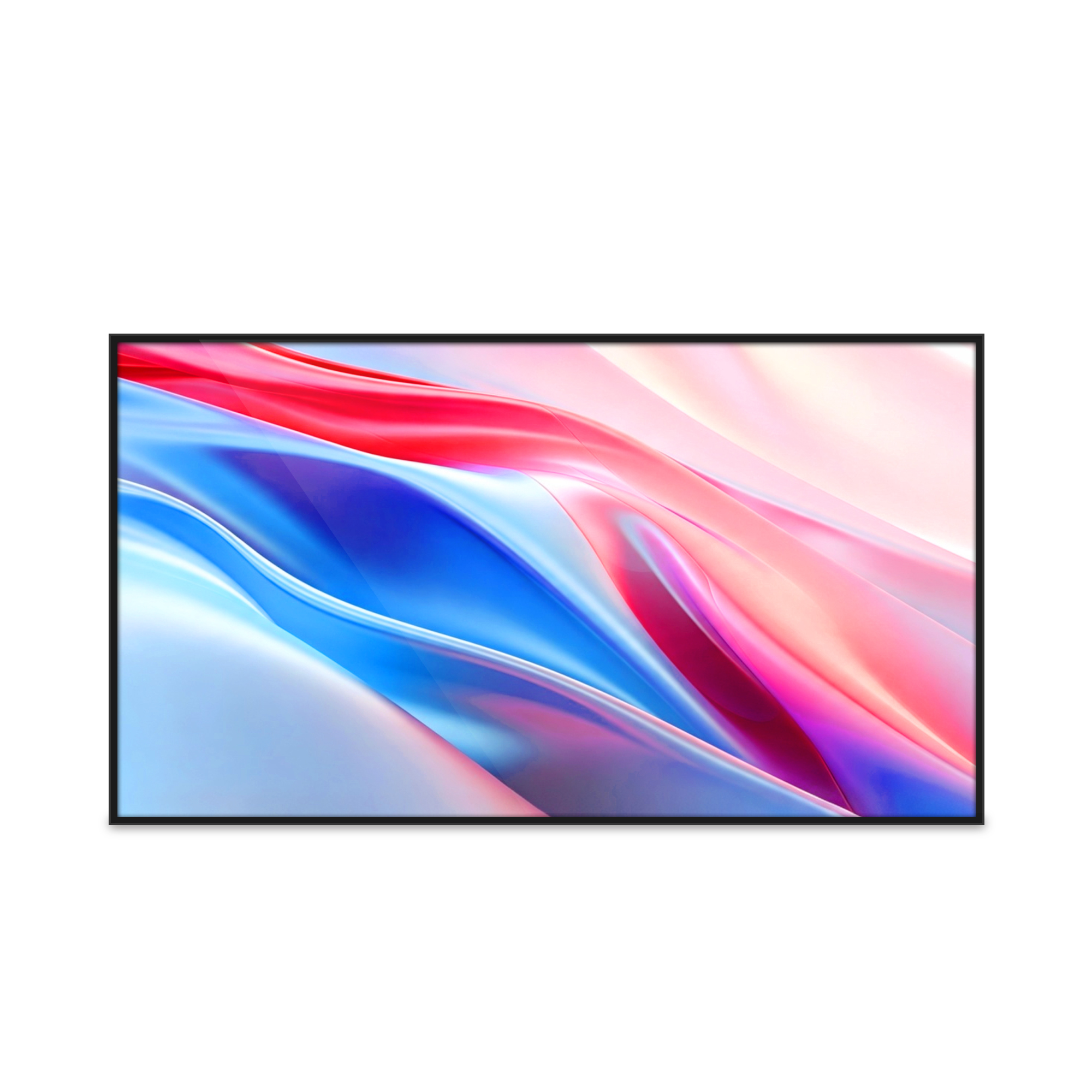

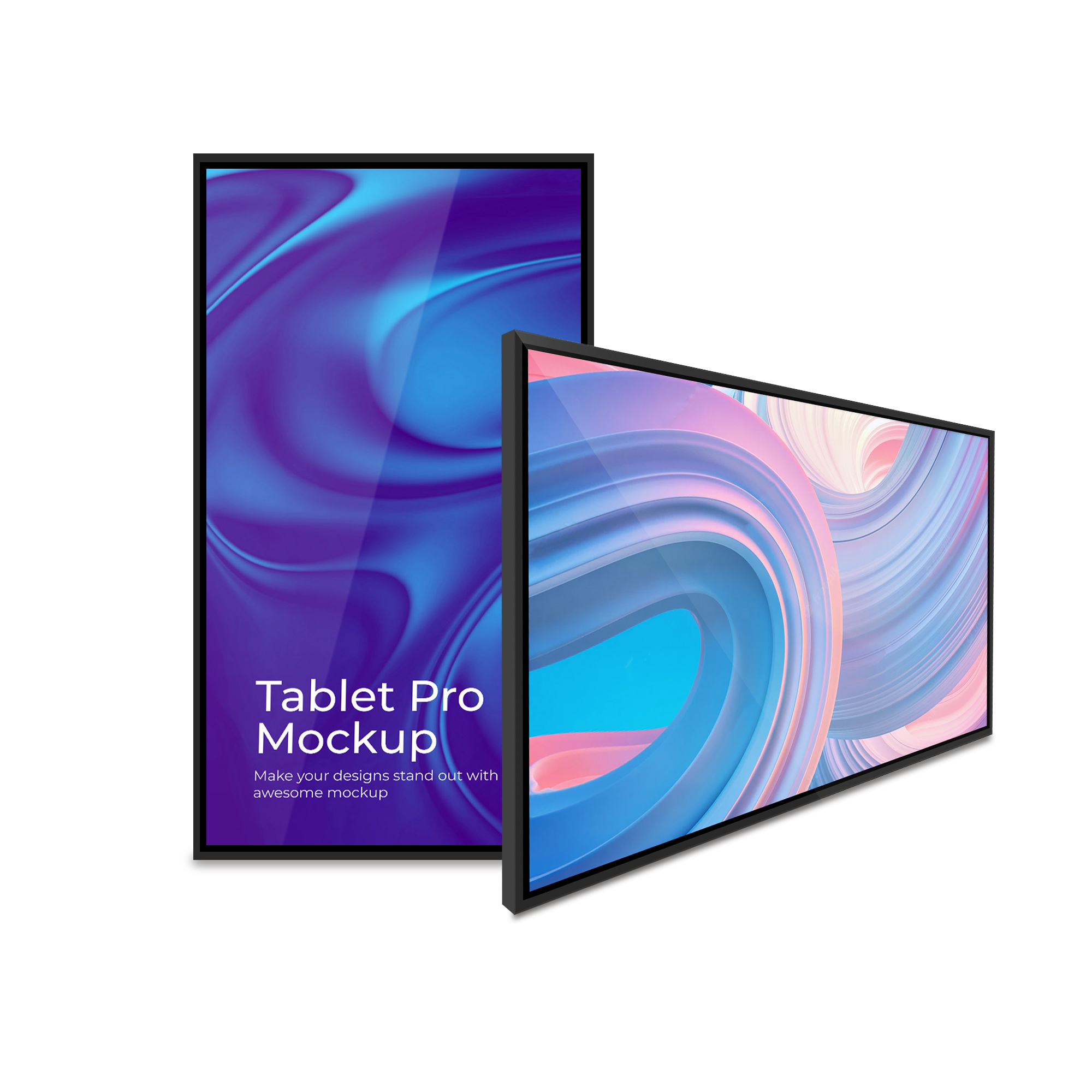

• Slim Wall-Mounted Design : Slim profile and narrow-bezel design create a clean, modern appearance for premium commercial installations.

• Digital Signage CMS Included : Integrated CMS supports remote content publishing, scheduling and centralized signage management.

• Optional PCAP Touch Screen : Optional PCAP touch transforms the display from digital advertising into an interactive information and self-service terminal.

• Flexible Commercial Connectivity : HDMI input, USB, SD card, Gigabit Ethernet and optional mobile connectivity support flexible content deployment.

• Designed for Professional Commercial Use : Built for retail, shopping malls, showrooms, corporate spaces, exhibitions and other high-traffic commercial environments.

Full Product Specifications

• Brand & Custom Service: AIYOS professional commercial display manufacturer, supporting OEM / ODM customization for appearance, hardware, software, touch and project requirements.

• Available Sizes: 43", 49", 55", 65", 75" and 85" MiniLED commercial display options for different installation spaces and projects.

• Display Panel: Industrial-grade IPS LCD full-view panel with MiniLED dynamic local-dimming backlight, 16:9 commercial display ratio.

• Resolution: FHD 1920 × 1080 high-definition display; configuration may vary according to screen size and project requirements.

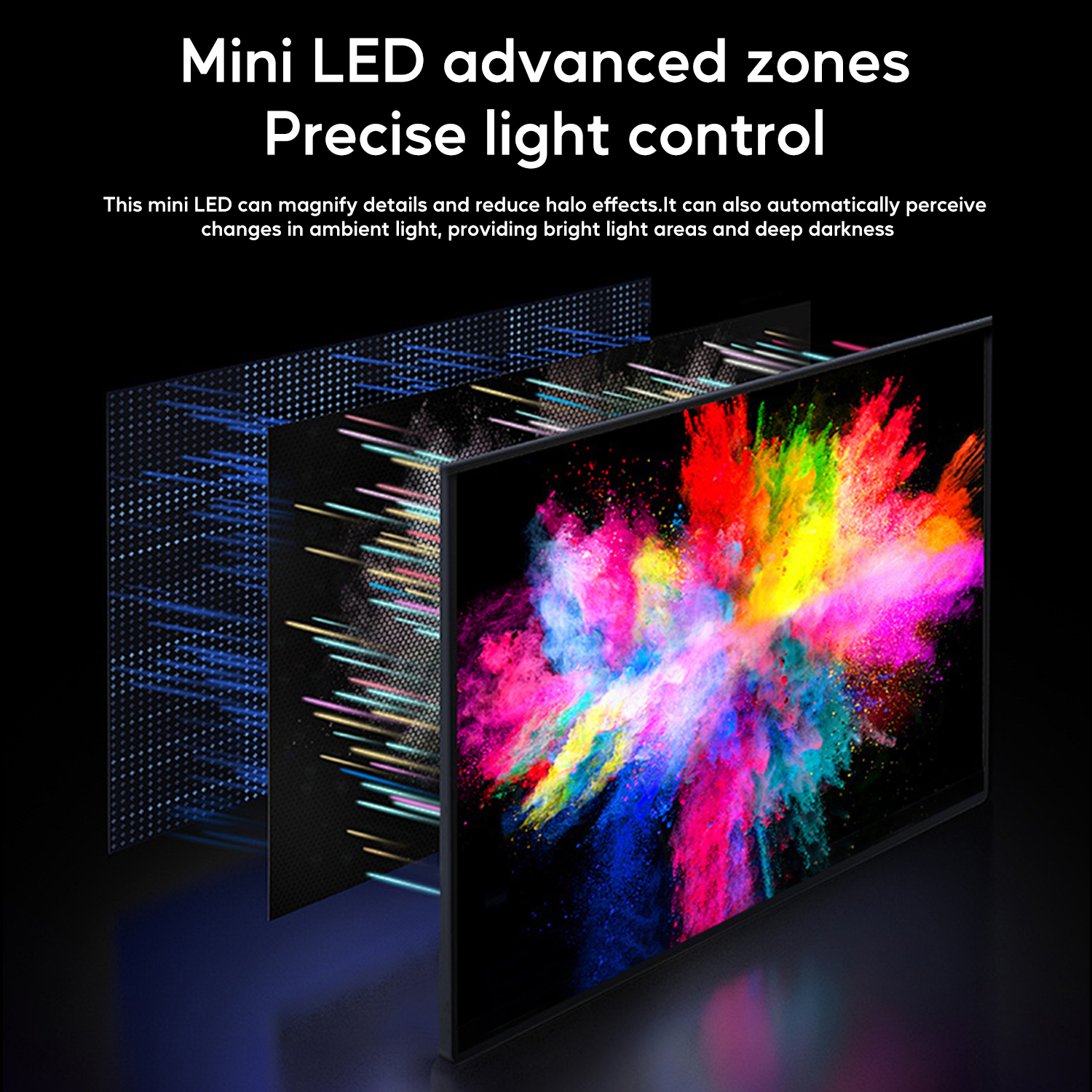

• MiniLED Local Dimming: Dynamic multi-zone MiniLED backlight control for deeper blacks, brighter highlights and enhanced image detail; 43" model features 192 local dimming zones, with zone quantity varying by size.

• Brightness & Contrast: 1000–1200 nits high brightness with up to 1,000,000:1 dynamic contrast ratio, suitable for bright indoor commercial environments.

• Viewing Angle & Color: 178° (H) / 178° (V) ultra-wide viewing angle, 16.7M colors, up to 86% NTSC color gamut and 60Hz refresh rate.

• System & Processor: RK3568 quad-core processor up to 2.0GHz with Android 11 system; customized hardware configurations available for project requirements.

• Memory & Storage: Standard 2GB RAM + 32GB storage, optional 4GB / 8GB / 16GB RAM and 64GB / 128GB storage configurations.

• Touch Screen: Standard non-touch version; PCAP capacitive touch optional for interactive retail, information inquiry and self-service applications.

• Digital Signage CMS: Professional CMS included for remote content publishing, playlist scheduling, centralized device management and commercial advertising playback.

• Connectivity Interfaces: Gigabit Ethernet RJ45, HDMI-IN, 2 × USB ports and SD card slot, with wireless network and optional mobile connectivity configurations available.

• Media Playback: Supports mainstream video formats including MPEG-1 / MPEG-2 / MPEG-4 / H.264 / H.265 and common audio and image formats for commercial content playback.

• Audio System: Built-in 2 × 5W stereo speakers for synchronized advertising video and audio playback.

• Power Supply & Consumption: Internal AC 100–240V power supply; approximately 40W–80W for the 43" model, with power consumption varying according to screen size and configuration.

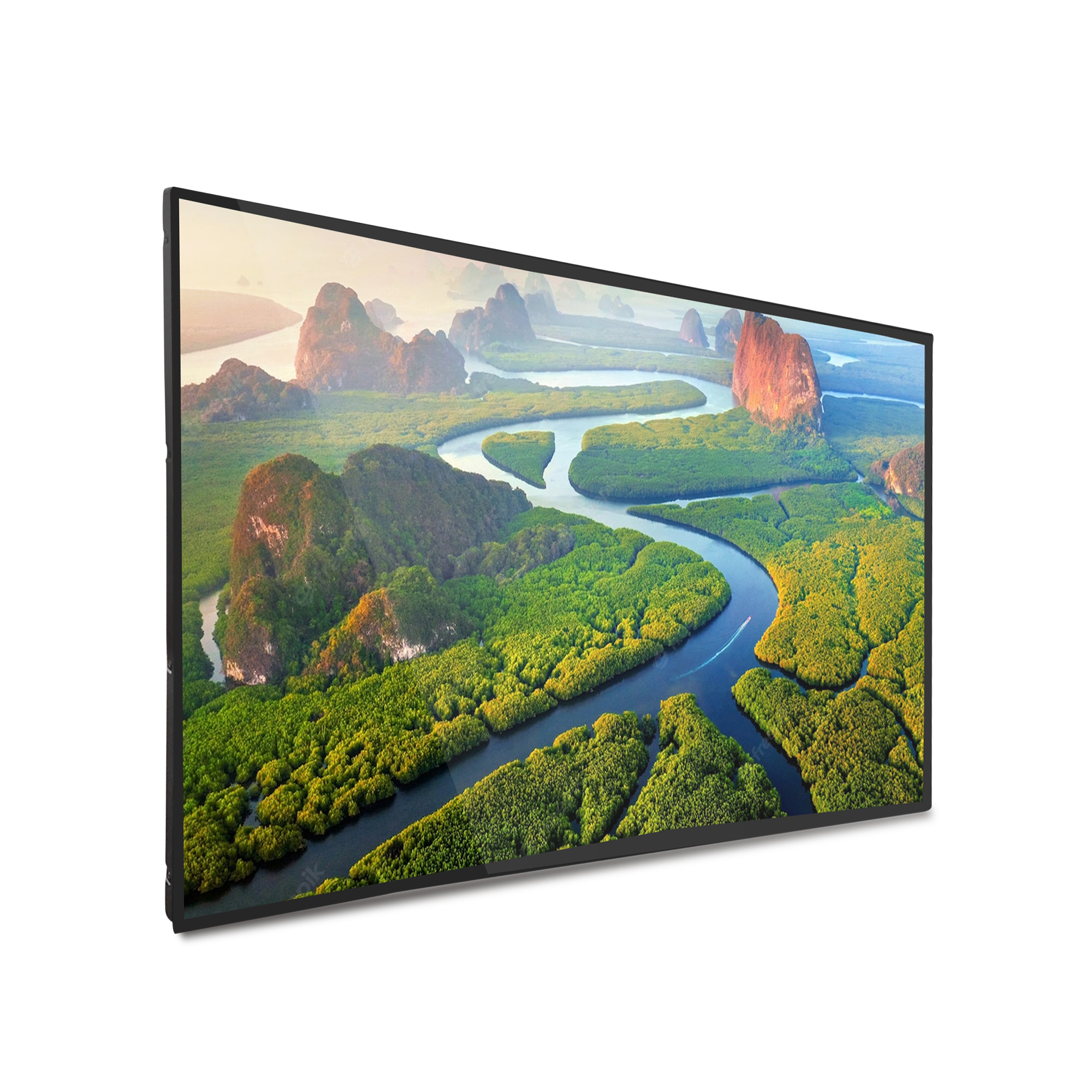

• Installation Method: Slim wall-mounted installation with included wall-mount bracket, designed to save space and maintain a clean, premium commercial appearance.

• Typical Applications: Suitable for retail stores, shopping malls, showrooms, corporate lobbies, airports, exhibitions, luxury stores and other high-brightness indoor digital signage applications.

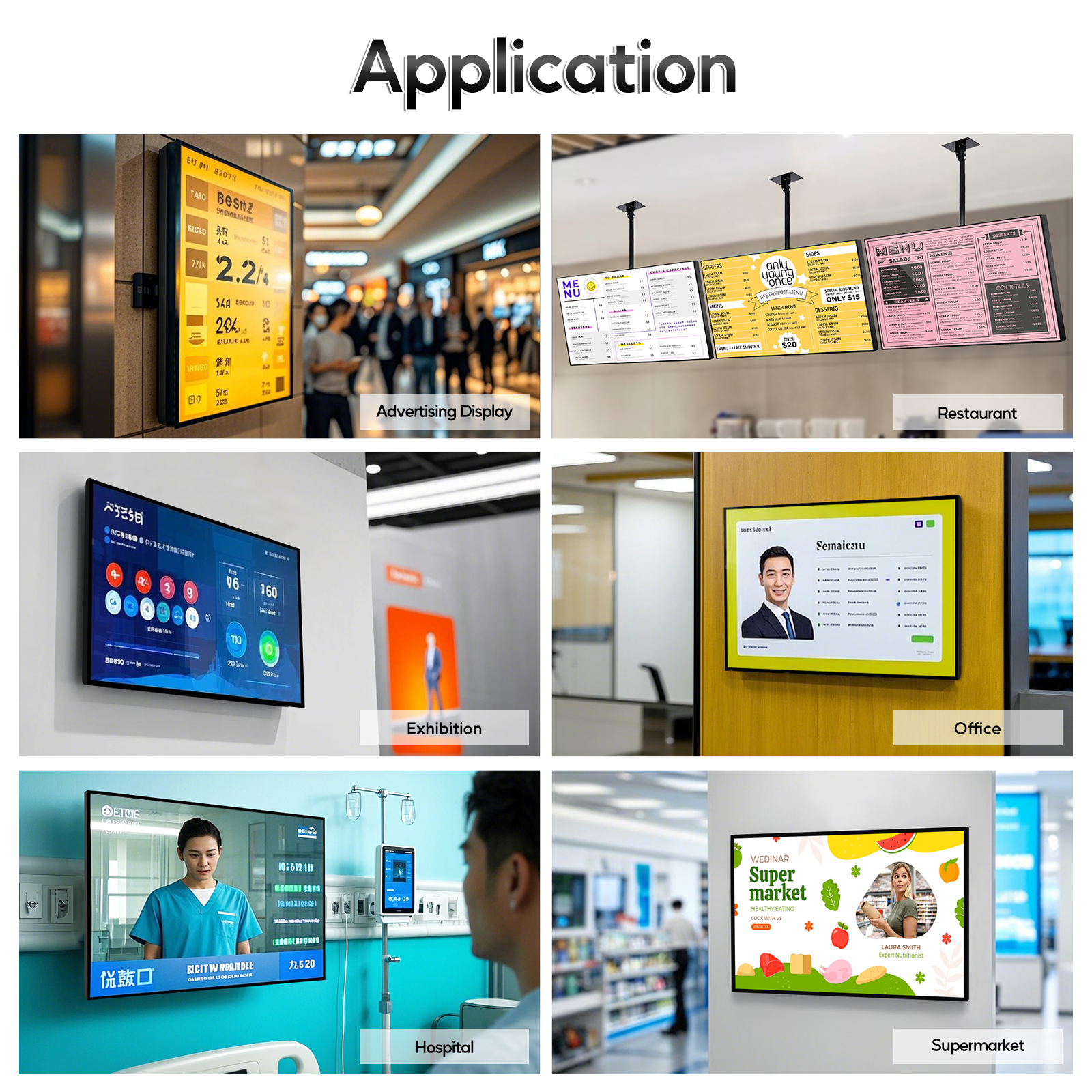

Application Scenarios

The AIYOS 43–85 Inch MiniLED Digital Signage Display is designed for premium indoor commercial environments where brightness, image contrast, visual impact and centralized content management are important. MiniLED local dimming, 1000–1200 nits high brightness, IPS wide viewing angle, CMS management and optional PCAP touch make the series suitable for both advertising and interactive information applications.

• Retail Stores & Brand Shops: Ideal for new-product launches, promotional campaigns, brand videos and product storytelling. Customer Value: Higher brightness and MiniLED contrast help products and advertising content attract more attention, improving in-store engagement and strengthening premium brand presentation.

• Shopping Malls & Commercial Centers: Suitable for advertising, campaign announcements, floor information and tenant promotions. Customer Value: Remote CMS scheduling allows operators to update multiple displays efficiently, reducing manual content replacement and improving advertising operation efficiency.

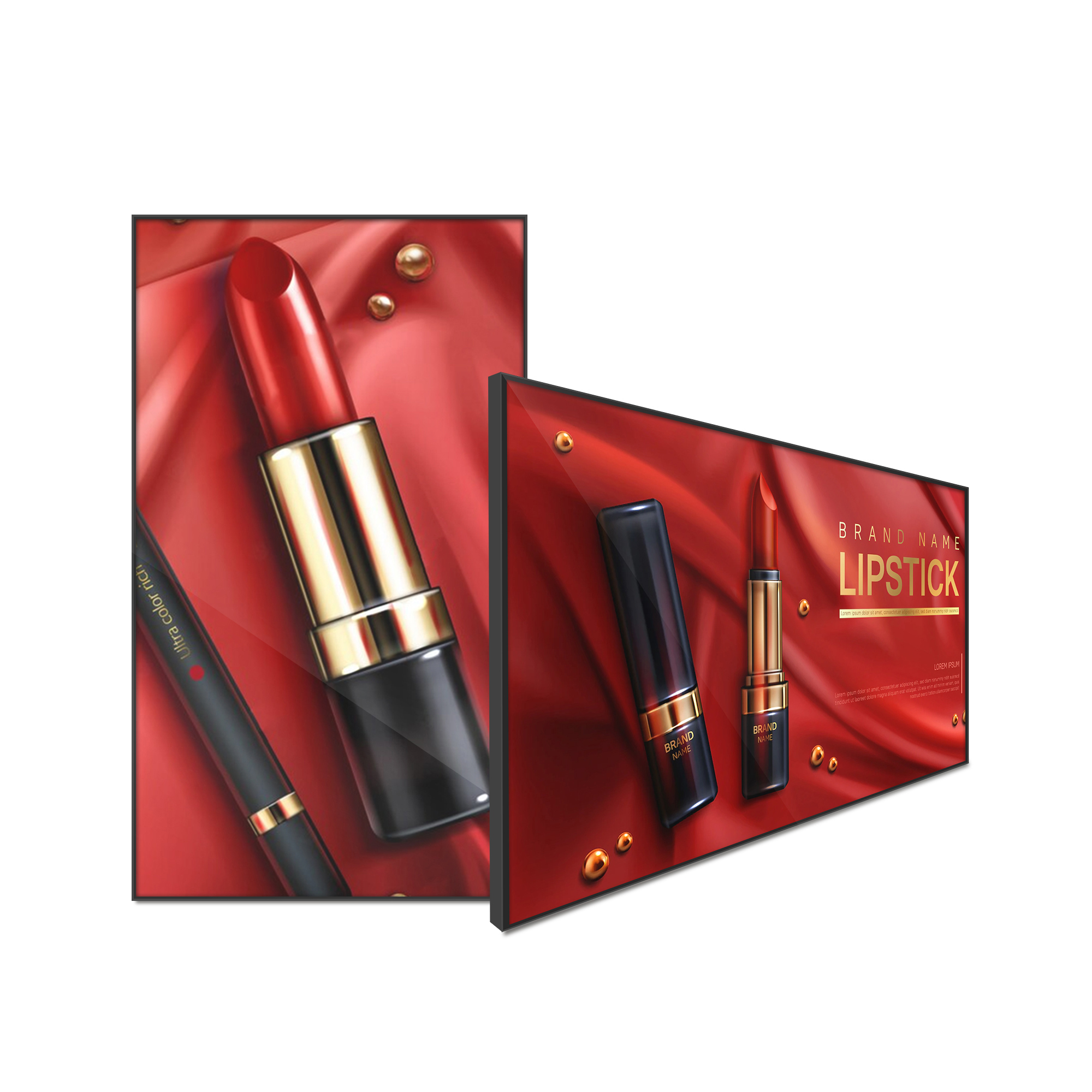

• Luxury, Jewelry & Cosmetics Stores: Designed for high-quality product photography, promotional videos and premium visual merchandising. Customer Value: MiniLED local dimming provides deeper blacks, brighter highlights and stronger image depth, helping premium products appear more refined and visually attractive.

• Automotive Showrooms: Suitable for vehicle advertising, model introductions, configuration comparisons and promotional videos. Customer Value: High brightness and high dynamic contrast enhance vehicle colors, lighting details and product visuals, creating a more immersive showroom experience.

• Corporate Lobbies & Showrooms: Used for company introductions, brand achievements, product demonstrations, visitor information and corporate videos. Customer Value: The slim wall-mounted design saves space while providing a professional digital presentation that strengthens corporate image and visitor experience.

• Hotels & Hospitality Areas: Suitable for reception information, event schedules, hotel services, restaurant promotions and wayfinding information. Customer Value: Centralized content updates enable hotels to quickly change service information and promotions while maintaining a consistent premium visual experience.

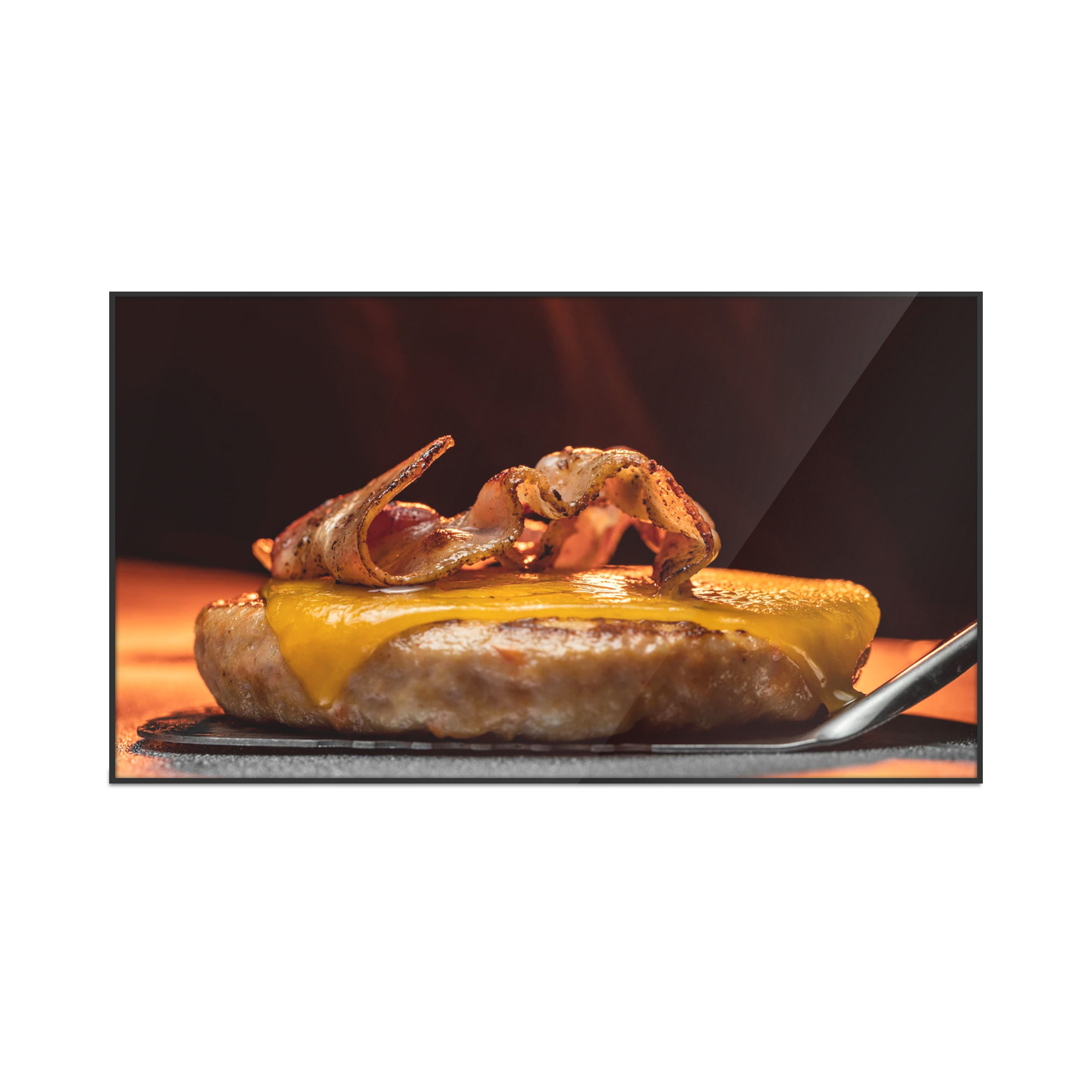

• Restaurants & Food Service: Can display digital menus, promotions, new dishes and brand videos. Customer Value: Vivid high-brightness images make food content more attractive, while CMS scheduling enables different menus or promotions to be displayed according to breakfast, lunch or dinner periods.

• Exhibition Halls & Trade Shows: Suitable for product introductions, promotional videos, company information and interactive presentations. Customer Value: Large-size options from 43" to 85" provide flexible deployment for different booth spaces, while optional PCAP touch can increase visitor interaction and product exploration.

• Transportation Hubs: Suitable for advertising, passenger information, service notices and commercial promotions in airports, railway stations and terminals. Customer Value: High brightness and 178° wide viewing angles maintain clear visibility in bright and high-traffic environments, helping information reach more viewers.

• Interactive Information & Self-Service Areas: With optional PCAP touch, the display can be used for digital directories, product catalogs, information inquiry and interactive navigation. Customer Value: Interactive functionality transforms conventional advertising into a self-service information terminal, reducing staff workload while improving customer access to information.
